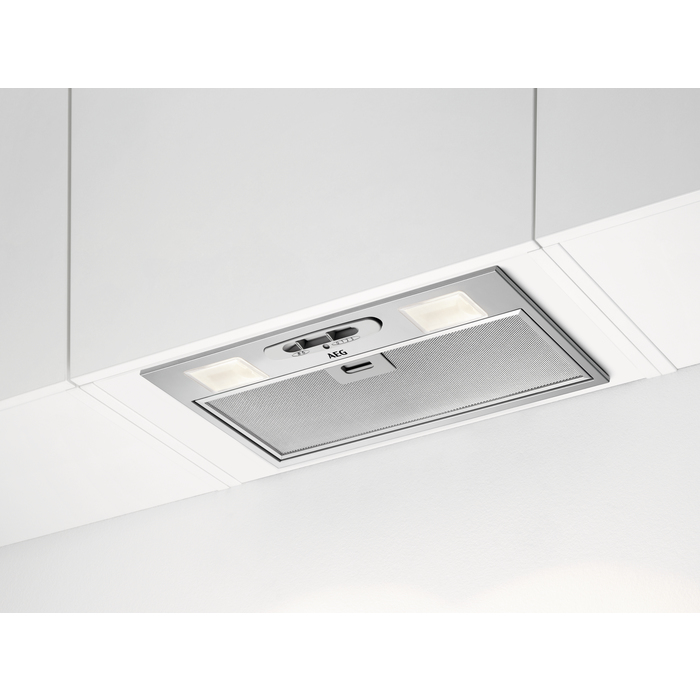

DGB3523S Ceiling built-in Aluminium 330 m³/h
Model DGB3523SPart no. 942 022 663EAN 7332543827770
39 specifications
- Energy classC
- Noise63 dB
- TypeCeiling built-in
- Weight4.3 kg
- ColourAluminium
- Maximum extraction power330 m³/h
Overview
- Energy class
- C
- Noise
- 63 dB
- Type
- Ceiling built-in
- Weight
- 4.3 kg
- Colour
- Aluminium
- Maximum extraction power
- 330 m³/h
- Brand
- AEG
- Category
- Cooker Hood
- Model
- DGB3523S
- Part number
- 942 022 663
- EAN / UPC
- 7332543827770
- Also known as
- AEG DGB3523S Ceiling built-in Aluminium 330 m³/h
Specifications
39 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 330 m³/h |
| Fluid dynamic efficiency class | D |
| Lighting efficiency class | E |
| Grease filtering efficiency class | D |
| Number of speeds | 3 |
| Noise level | 63 dB |
| Noise level (high speed) | 63 dB |
| Noise level (low speed) | 45 dB |
| Airflow (low speed) | 145 m³/h |
| Pressure (Pa) | 198 |
Design
| Specification | Value |
|---|---|
| Type | Ceiling built-in |
| Product colour | Aluminium |
| Hob²Hood function | No |

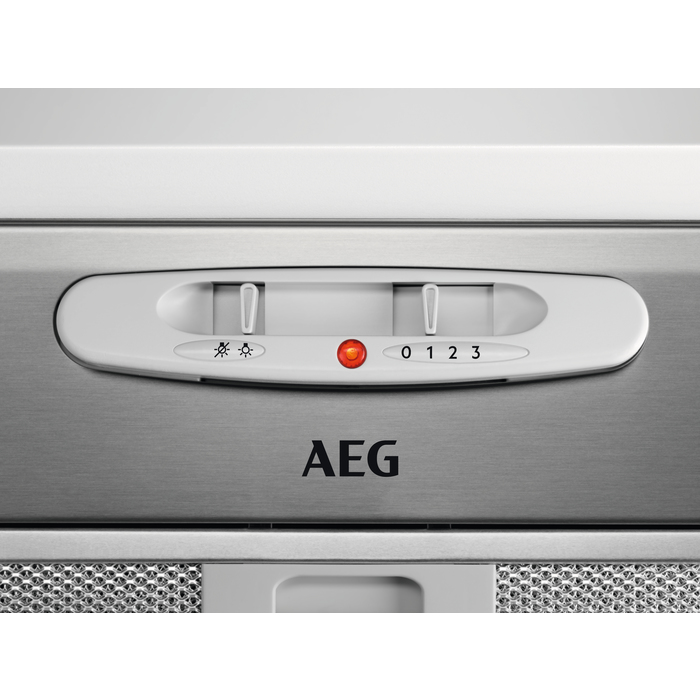

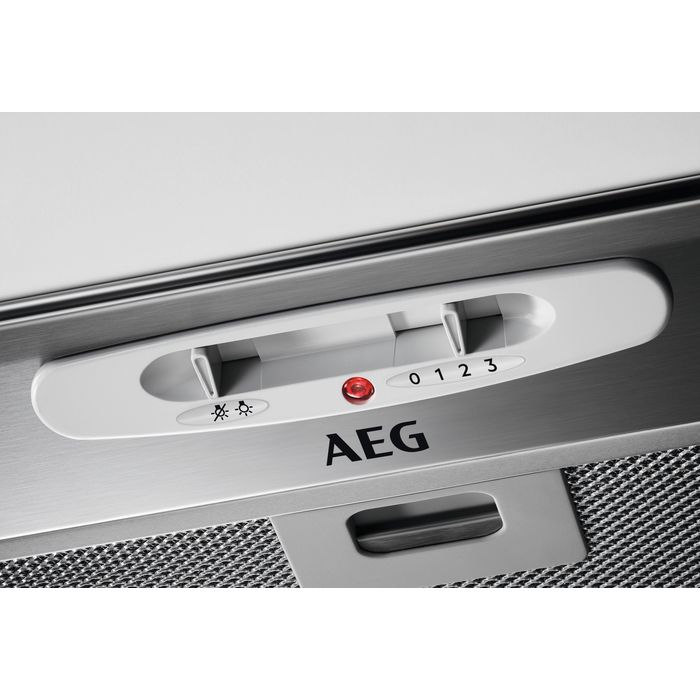

| Control type | Slider |
| Exhaust connection diameter | 15 cm |

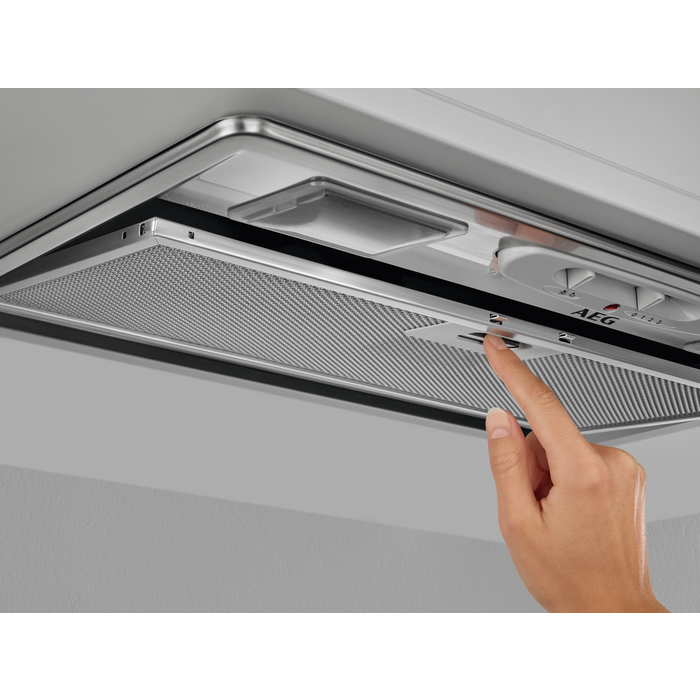

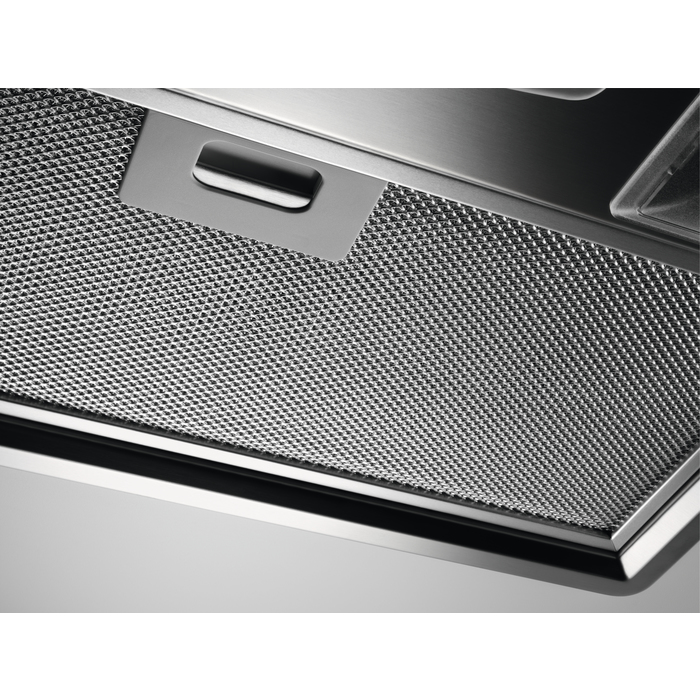

Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium |
| Number of filters | 1 pc(s) |

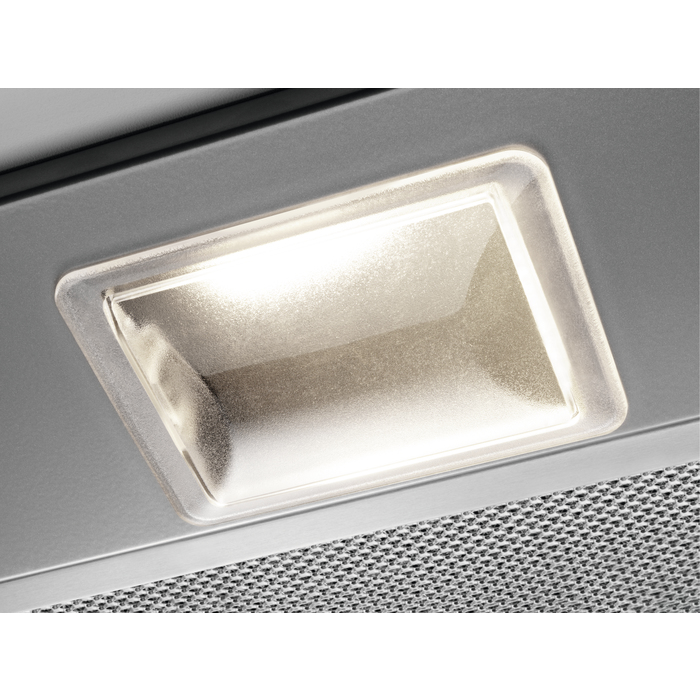

Lighting
| Specification | Value |
|---|---|
| Bulb power | 8 W |
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Illuminance | 81 lx |
| Lighting efficiency (LE) | 9.7 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | C |
| Energy efficiency scale | A+++ to D |
| Power consumption (off) | 0.01 W |
| Annual energy consumption | 51.9 kWh |
| AC input voltage | 220 - 240 V |
| Energy efficiency class (legacy scale) | C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 520 mm |
| Depth | 284 mm |
| Height (min) | 13.8 cm |
| Height (max) | 14.5 cm |
| Weight | 4.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 220 mm |
| Package depth | 600 mm |
| Package height | 350 mm |
| Package weight | 5.1 kg |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 14.3 |
| Grease filtering efficiency (GFE) | 65.1% |
