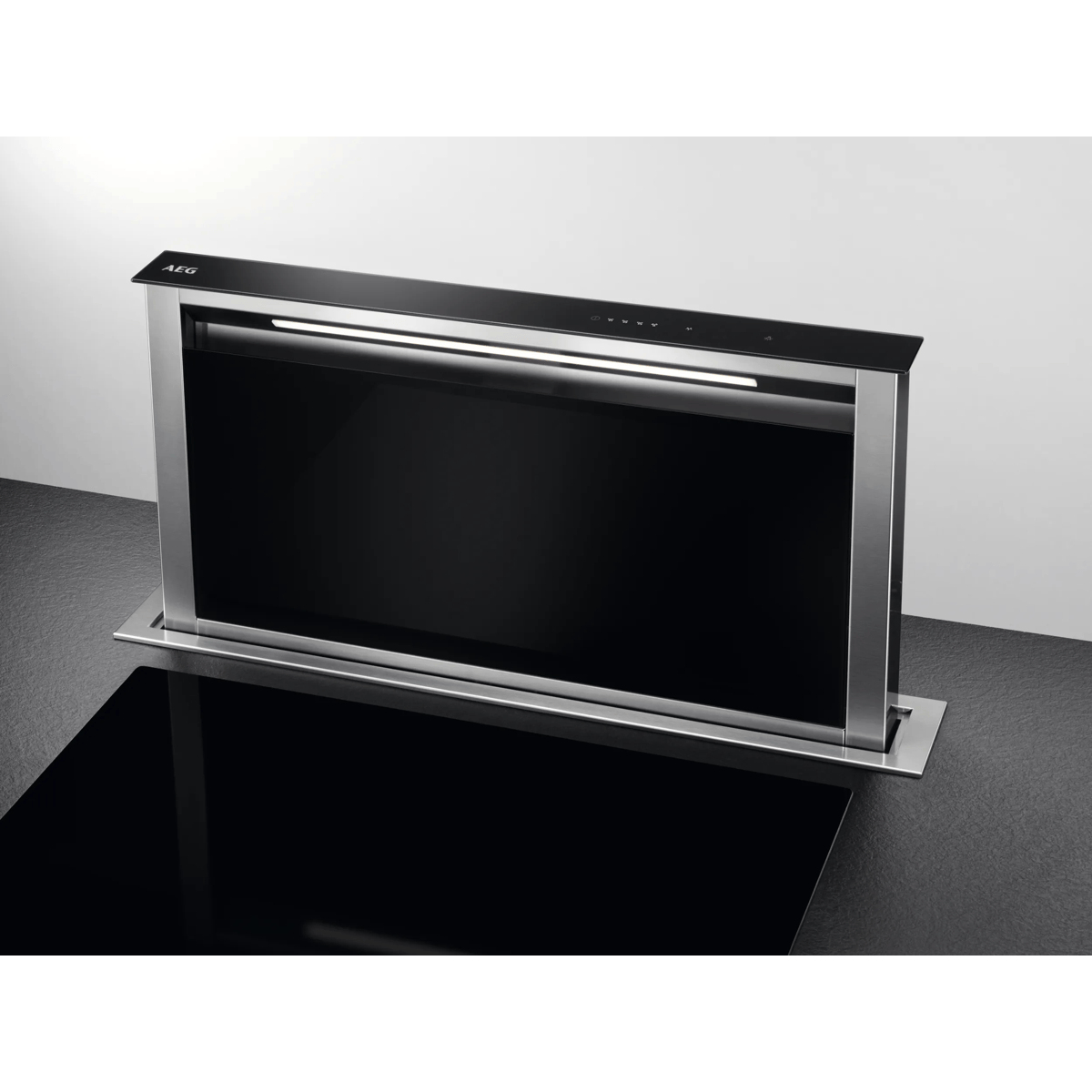

DDE5960B Downdraft Black 470 m³/h
Model DDE5960BPart no. 942 051 322EAN 7332543712106
63 specifications
- Energy classA
- Noise59 dB
- TypeDowndraft
- Weight34.3 kg
- ColourBlack
- Maximum extraction power470 m³/h
Overview
- Energy class
- A
- Noise
- 59 dB
- Type
- Downdraft
- Weight
- 34.3 kg
- Colour
- Black
- Maximum extraction power
- 470 m³/h
- Brand
- AEG
- Category
- Cooker Hood
- Model
- DDE5960B
- Part number
- 942 051 322
- EAN / UPC
- 7332543712106
- Also known as
- AEG DDE5960B Downdraft Black 470 m³/h
Specifications
63 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 470 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | F |
| Maximum recirculating power | 460 m³/h |
| Boost position air extraction power | 700 m³/h |
| Boost position output recirculating power | 690 m³/h |
| Number of speeds | 3 |
| Intensive speed | Yes |
| Noise level | 59 dB |
| Noise level (high speed) | 59 dB |
| Noise level (low speed) | 48 dB |
| Noise level (medium speed) | 59 dB |
| Noise level (intensive speed) | 67 dB |
| Noise level (recirculation mode) | 65 dB |
| Airflow (low speed) | 265 m³/h |
| Pressure (Pa) | 545 |
Design
| Specification | Value |
|---|---|
| Type | Downdraft |
| Colour name | Nero |
| Product colour | Black |
| Hob²Hood function | No |
| Breeze function | Yes |

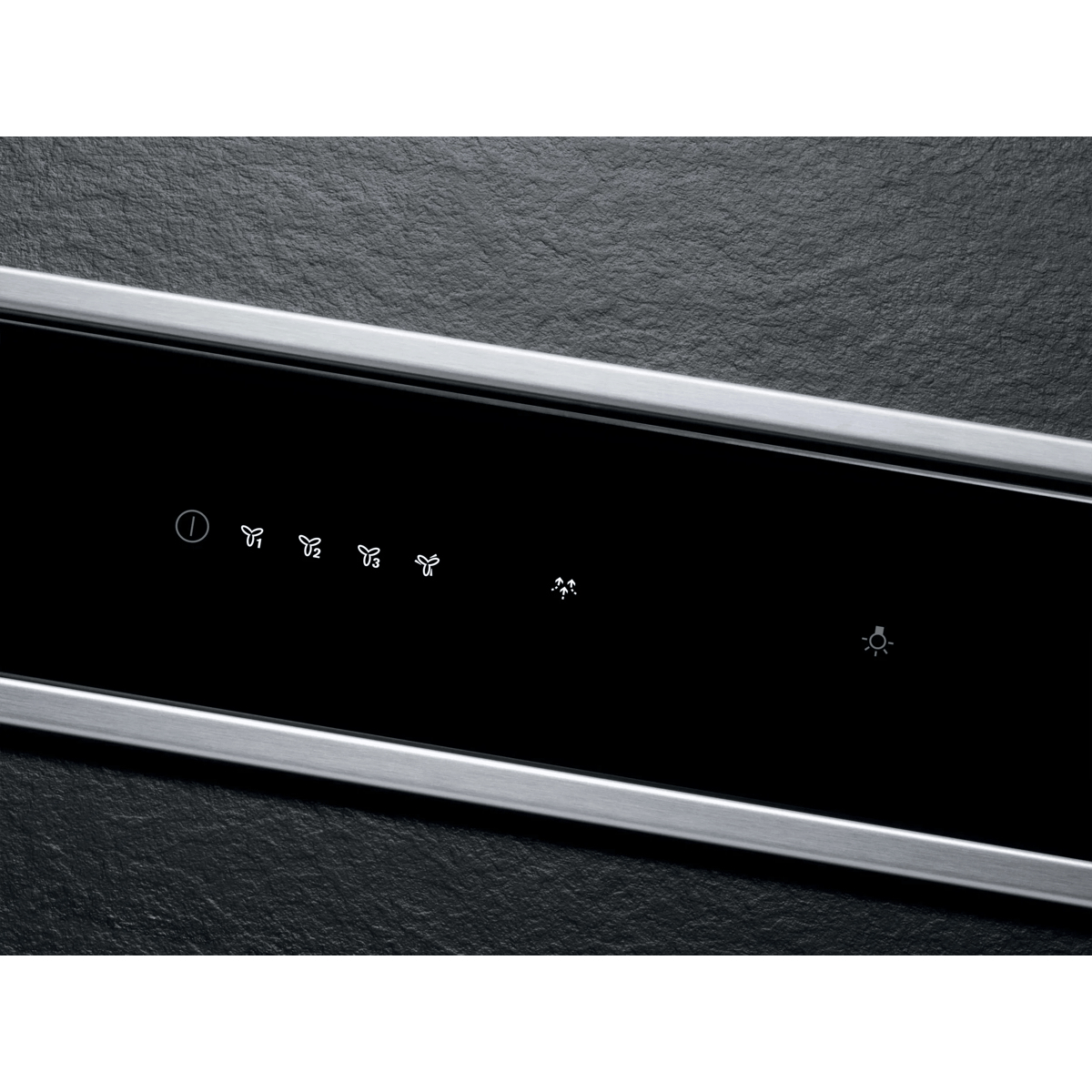

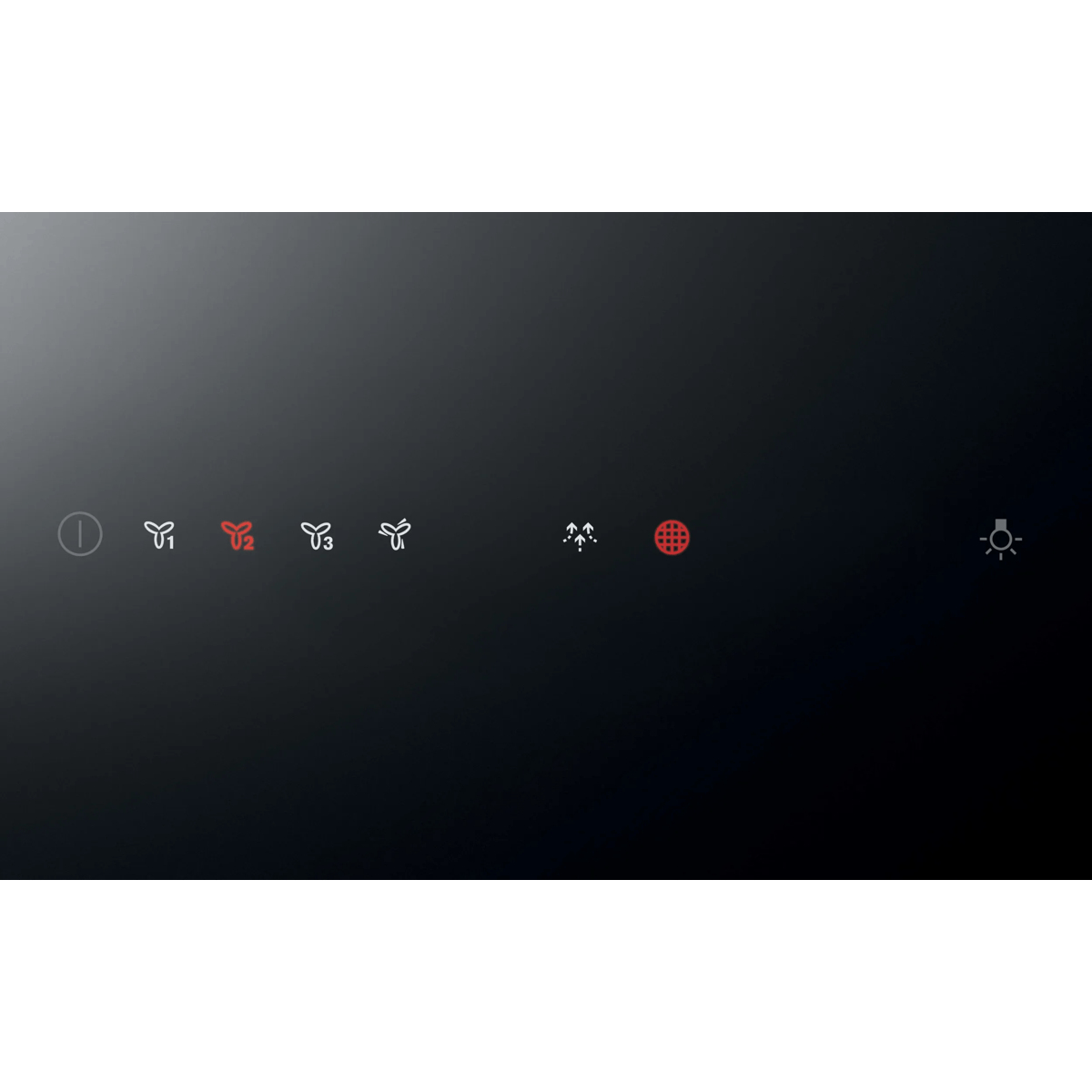

| Control type | Touch |
| Cord length | 1.4 m |
| Exhaust connection diameter | 15 cm |
| Number of motors | 1 |
| Motor included | Yes |
Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium |
| Number of filters | 2 pc(s) |
| Filter cleaning indicator | Yes |
| Dishwasher proof filter | Yes |

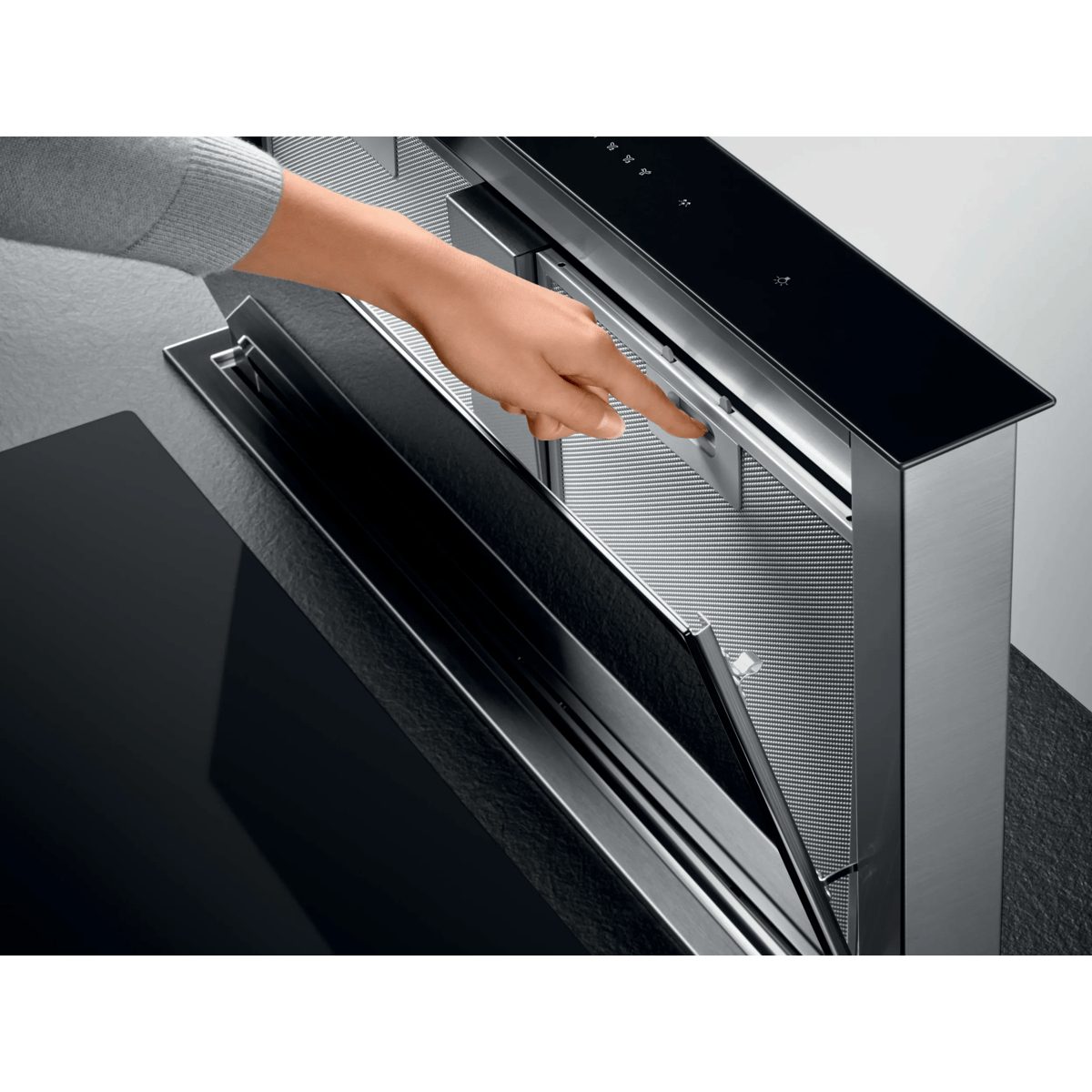

| Removable filter | Yes |
Lighting
| Specification | Value |
|---|---|
| Number of bulbs | 1 bulb(s) |
| Bulb type | LED |
| Colour temperature | 3000 K |
| Lighting efficiency (LE) | 28 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Energy efficiency scale | A+++ to D |
| Motor power | 240 W |
| Power consumption (off) | 0.49 W |
| Annual energy consumption | 55.3 kWh |
| AC input frequency | 50 Hz |
| AC input voltage | 220-240 V |
| Energy efficiency class (legacy scale) | A |

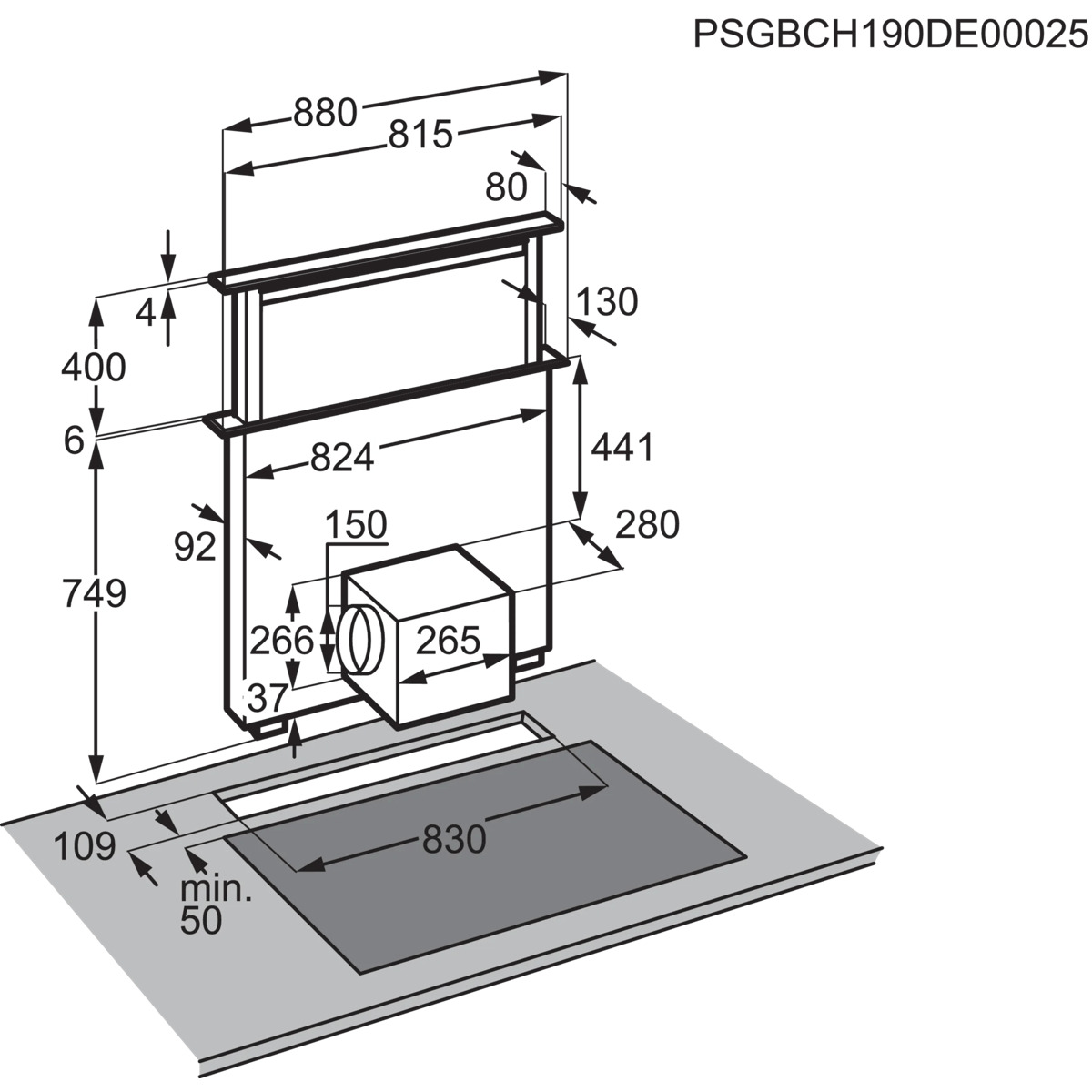

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 880 mm |
| Depth | 280 mm |
| Height | 1155 mm |
| Height (min) | 75.5 cm |
| Height (max) | 115.5 cm |
| Height without chimney | 40 cm |
| Weight | 34.3 kg |
| Installation compartment width | 83 cm |
| Installation compartment depth | 10.9 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1010 mm |
| Package depth | 890 mm |
| Package height | 490 mm |
| Package weight | 50 kg |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 30.2 |
| Grease filtering efficiency (GFE) | 45.1% |
| Measured air pressure at best efficiency point | 435 Pa |
| Country of origin | Italy |
| Filter | - | ECFE52PL |
