DBB4651M Wall-mounted Stainless steel 600 m³/h
Model DBB4651MPart no. 942 022 710EAN 7332543981847
60 specifications
- Energy classB
- Noise70 dB
- TypeWall-mounted
- Weight12 kg
- ColourStainless steel
- Maximum extraction power600 m³/h
Overview
- Energy class
- B
- Noise
- 70 dB
- Type
- Wall-mounted
- Weight
- 12 kg
- Colour
- Stainless steel
- Maximum extraction power
- 600 m³/h
- Brand
- AEG
- Category
- Cooker Hood
- Model
- DBB4651M
- Part number
- 942 022 710
- EAN / UPC
- 7332543981847
- Also known as
- AEG DBB4651M Wall-mounted Stainless steel 600 m³/h
Specifications
60 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 600 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | B |
| Lighting efficiency class | A |
| Grease filtering efficiency class | C |
| Maximum recirculating power | 470 m³/h |
| Number of speeds | 3 |
| Noise level | 70 dB |
| Noise level (high speed) | 70 dB |
| Noise level (low speed) | 46 dB |
| Noise level (recirculation mode) | 74 dB |
| Airflow (low speed) | 200 m³/h |
| Pressure (Pa) | 470 |
| Minimum distance from electric hob | 50 cm |
| Minimum distance from gas hob | 65 cm |
Design
| Specification | Value |
|---|---|
| Type | Wall-mounted |
| Colour name | Acciaio INOX |
| Product colour | Stainless steel |
| Housing material | Stainless steel |
| Hob²Hood function | No |
| Breeze function | No |
| Built-in display | No |
| Control type | Buttons |
| Cord length | 1.32 m |
| Exhaust connection diameter | 15 cm |
Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium |
| Number of filters | 2 pc(s) |
| Removable filter | Yes |
| Washable filter | Yes |
Lighting
| Specification | Value |
|---|---|
| Bulb power | 6.3 W |
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Colour temperature | 3000 K |
| Lighting position | Side |
| Lighting efficiency (LE) | 39.6 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | B |
| Energy efficiency scale | A+++ to D |
| Motor power | 190 W |
| Power consumption (off) | 0.01 W |
| Annual energy consumption | 74.3 kWh |
| AC input frequency | 50 Hz |
| AC input voltage | 220-240 V |
| Energy efficiency class (legacy scale) | B |

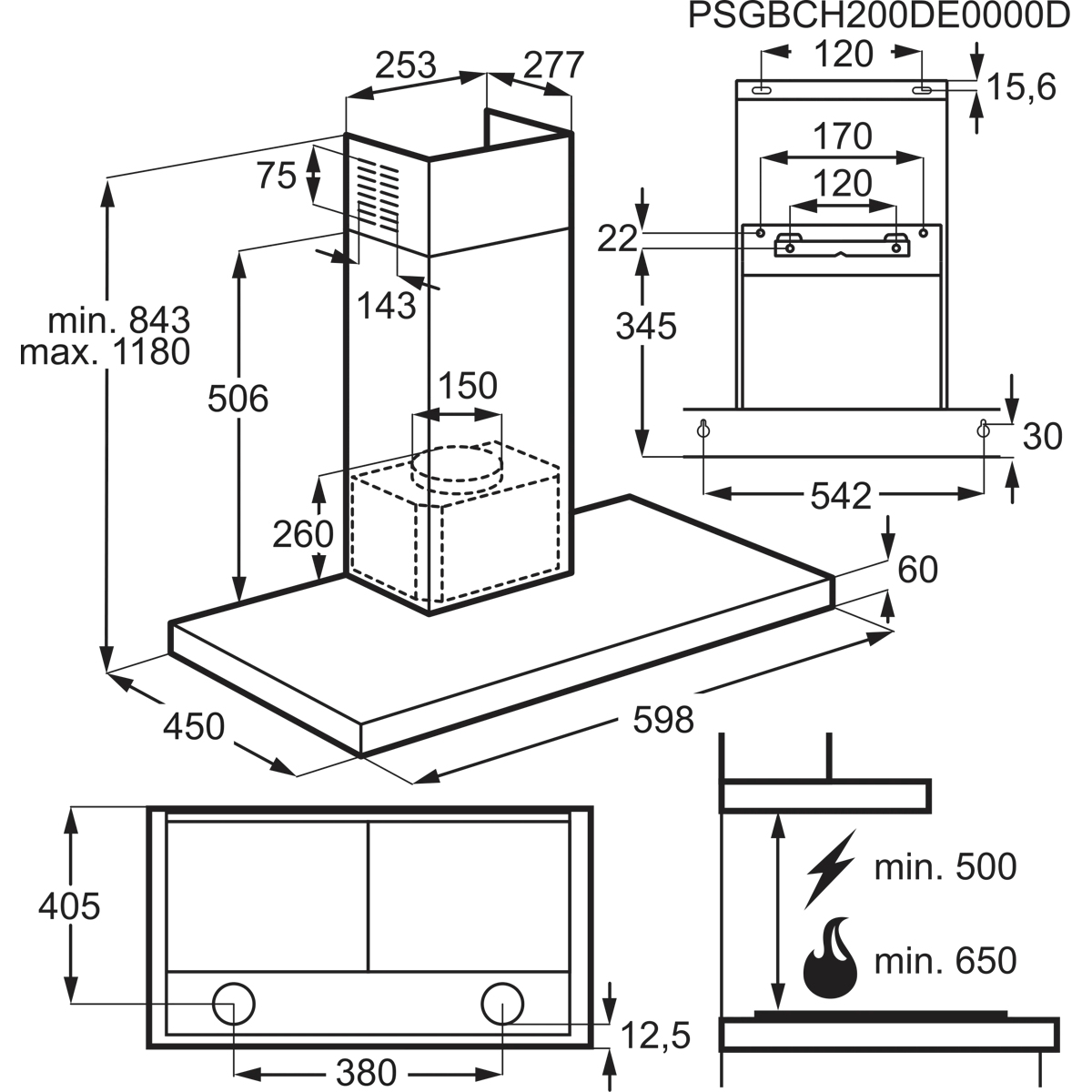

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 598 mm |
| Depth | 450 mm |
| Height | 1180 mm |
| Height (min) | 84.3 cm |
| Height (max) | 118 cm |
| Height without chimney | 6 cm |
| Chimney height | 50.6 cm |
| Weight | 12 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 725 mm |
| Package depth | 460 mm |
| Package height | 650 mm |
| Package weight | 14.5 kg |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 23.1 |
| Grease filtering efficiency (GFE) | 75.1% |
| Measured air pressure at best efficiency point | 369 Pa |
| Country of origin | Poland |
| Filter | ECFB01ST | ECFB46PL |
