4 Port USB 2.0 Extender Hub over Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial Metal USB Extender Adapter Kit w/ ESD Protection - Extern
Model USB2004EXT2NAEAN 065030889681
36 specifications
- TypeConsole transmitter & receiver
- Weight190 g
- USB 2.0 Type-A ports quantity4
- Width76 mm
- Operating temperature (T-T)0 - 50 °C
- Power consumption (typical)15 W
Overview
- Type
- Console transmitter & receiver
- Weight
- 190 g
- USB 2.0 Type-A ports quantity
- 4
- Width
- 76 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Power consumption (typical)
- 15 W
- Brand
- StarTech.com
- Category
- Console Extender
- Model
- USB2004EXT2NA
- Part number
- USB2004EXT2NA
- EAN / UPC
- 065030889681
- Also known as
- StarTech.com 4 Port USB 2.0 Extender Hub over Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial Metal USB Extender Adapter Kit w/ ESD Protection - Extern
Specifications
36 specifications in 7 groups
Technical details
| Specification | Value |
|---|---|
| Type | Console transmitter & receiver |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Compliance certificates | RoHS |

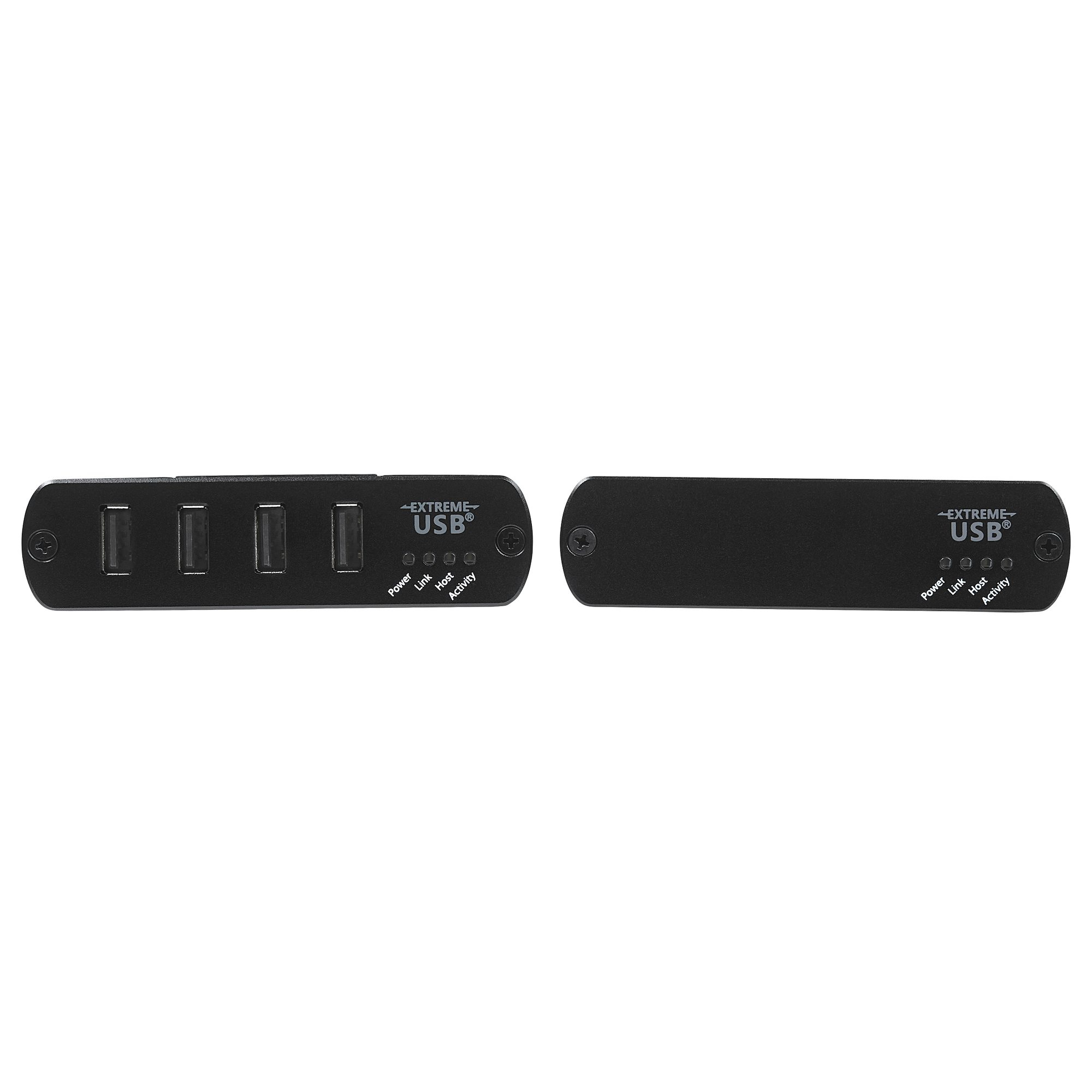

| LED indicators | Activity, Link, Power |
| Plug and Play | Yes |
| Certification | CE, FCC, REACH |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 Type-A ports quantity | 4 |
| USB 2.0 Type-B ports quantity | 1 |

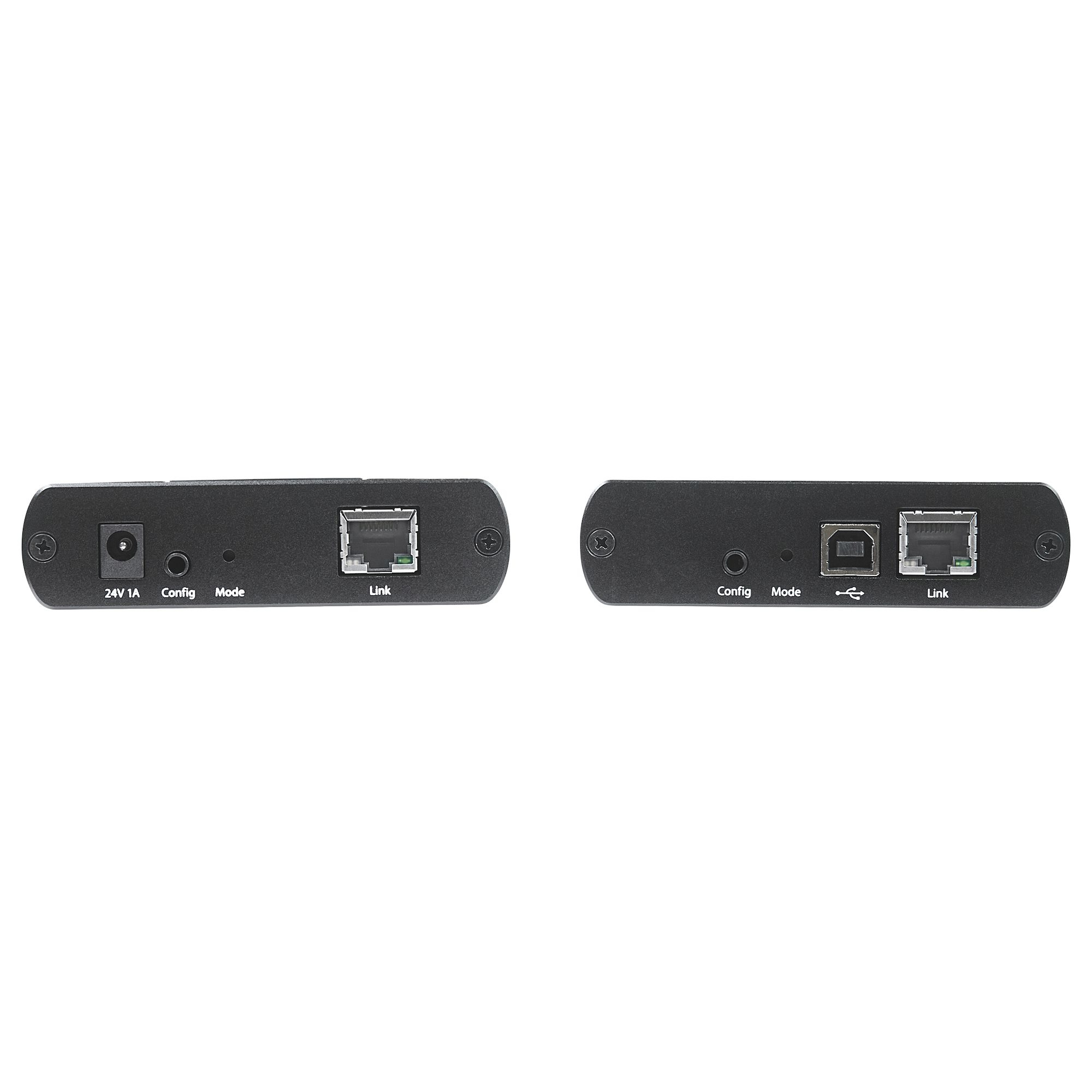

| RJ-45 ports quantity | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76 mm |
| Depth | 26 mm |
| Height | 100 mm |
| Weight | 190 g |
| Package width | 195 mm |
| Package depth | 245 mm |
| Package height | 76 mm |
| Package weight | 934 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |

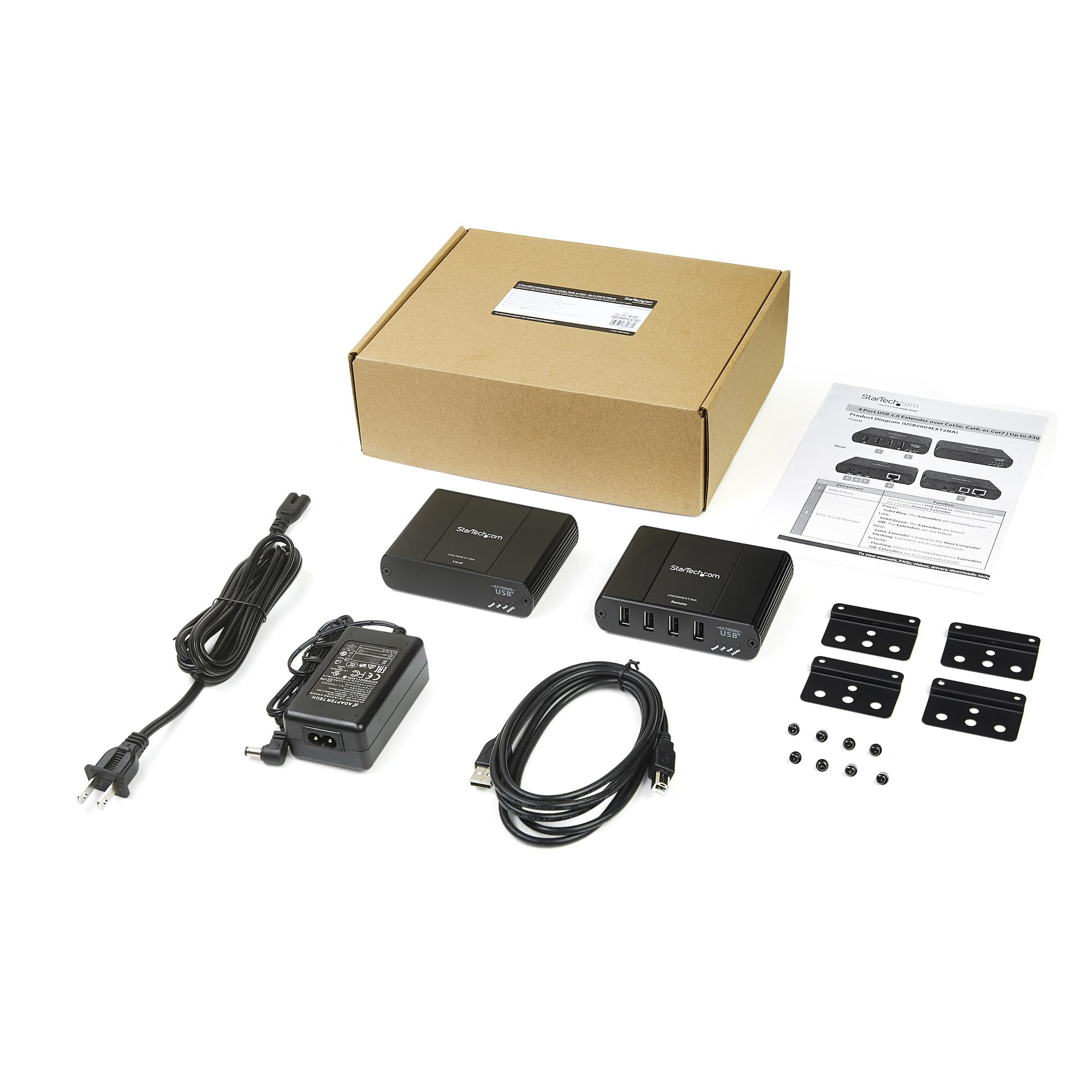

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB |
| Mounting kit | Yes |
| Quick start guide | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
| Input voltage | 100 - 240 V |
| Input current | 0.58 A |
| Output voltage | 24 V |
| Output current | 1 A |
| Power plug type | Type M |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 420 mm |
| Master (outer) case length | 570 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 14 pc(s) |
