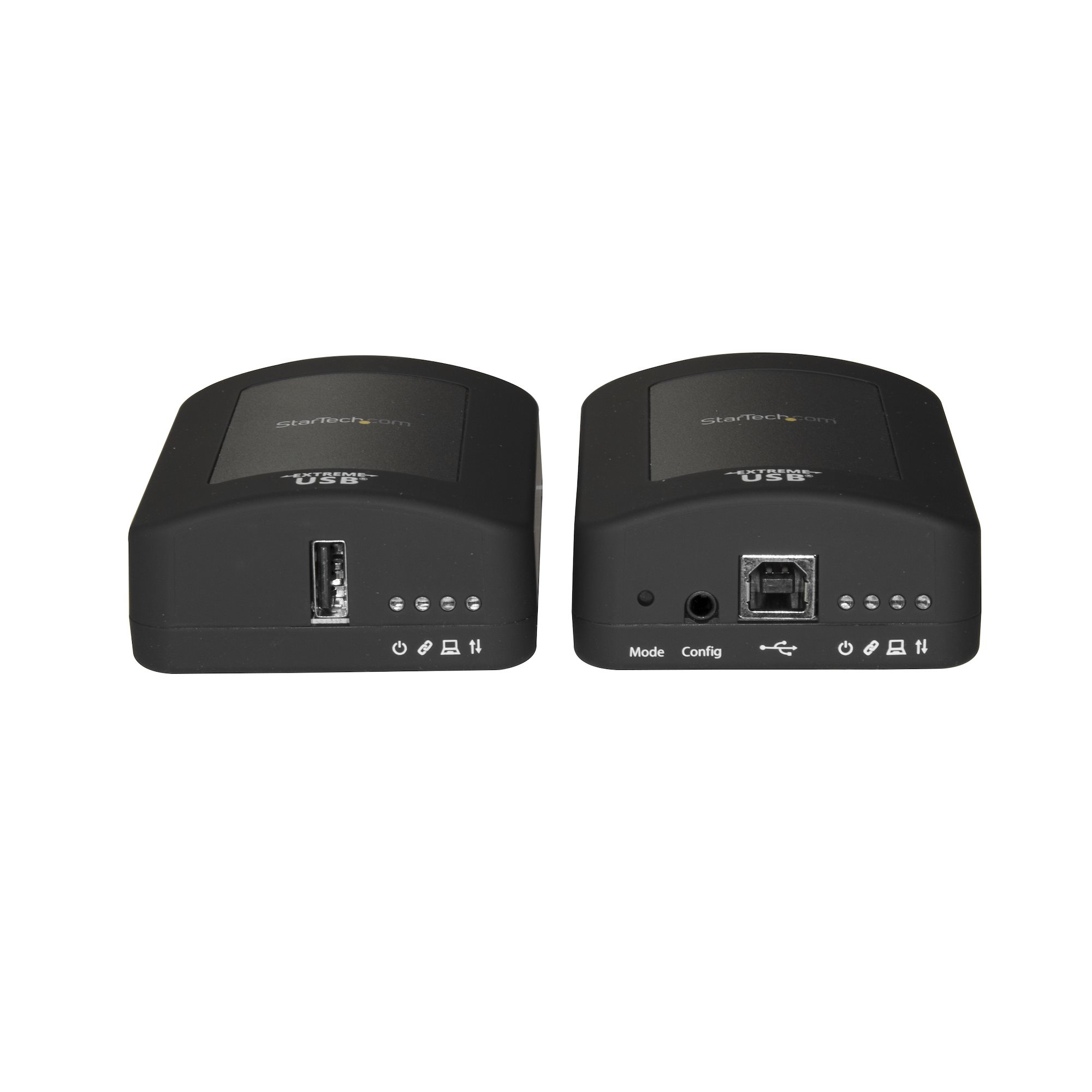

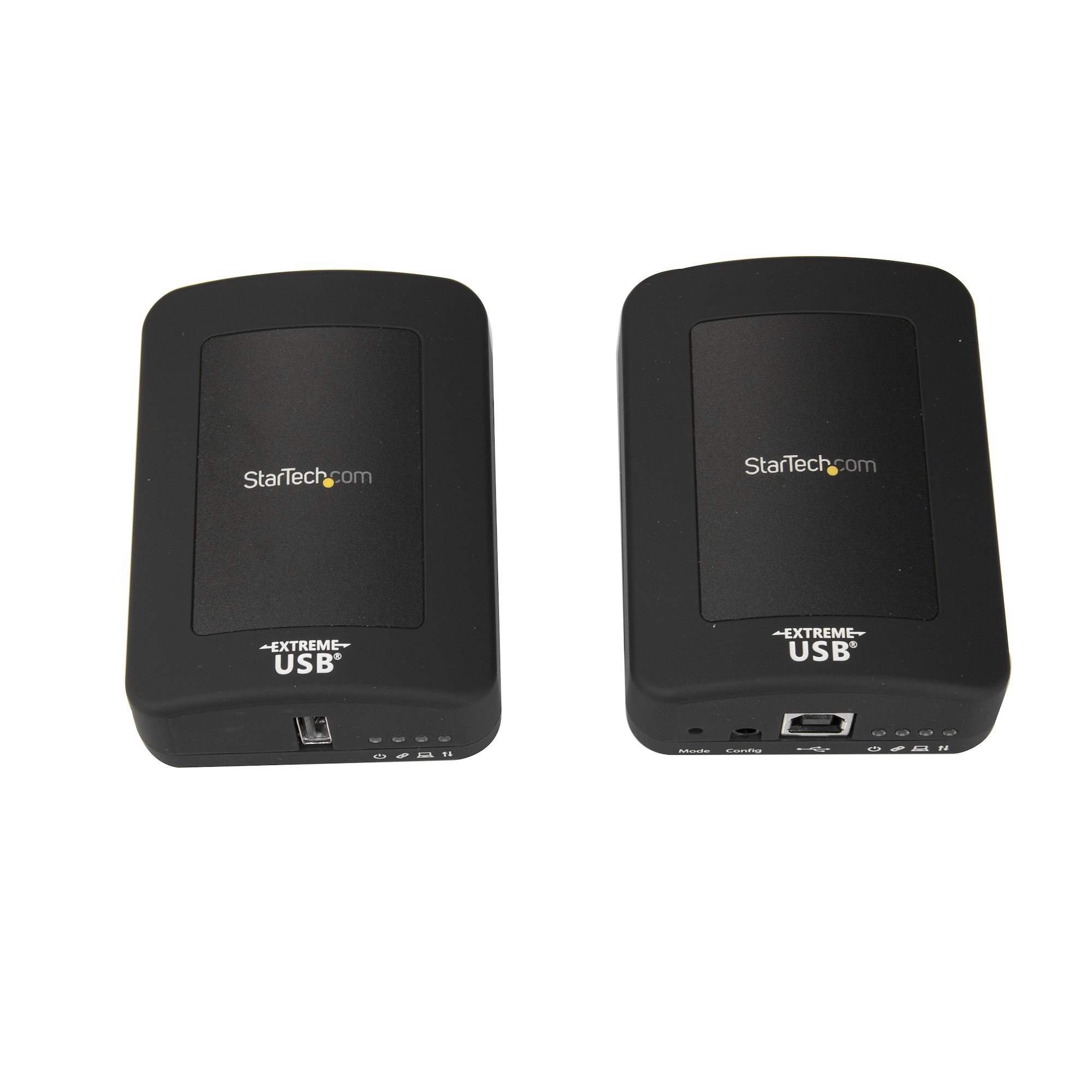

Discontinued and replaced by USB2001EXT2PNA; 1 Port USB 2.0 over Cat5 or Cat6 Extender Kit - Locally or Remotely Powered - 330 ft (100 m) - USB Ext
Model USB2001EXT2PEAN 065030866149
42 specifications
- TypeConsole transmitter & receiver
- Weight620 g
- ColourBlack
- USB 2.0 Type-A ports quantity1
- Width65 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Type
- Console transmitter & receiver
- Weight
- 620 g
- Colour
- Black
- USB 2.0 Type-A ports quantity
- 1
- Width
- 65 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- Console Extender
- Model
- USB2001EXT2P
- Part number
- USB2001EXT2P
- EAN / UPC
- 065030866149
- Also known as
- StarTech.com Discontinued and replaced by USB2001EXT2PNA; 1 Port USB 2.0 over Cat5 or Cat6 Extender Kit - Locally or Remotely Powered - 330 ft (100 m) - USB Ext
Specifications
42 specifications in 7 groups
Technical details
| Specification | Value |
|---|---|
| Type | Console transmitter & receiver |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 100 m |
| Product colour | Black |
| Cable types supported | Cat5e, Cat6 |
| Compliance certificates | RoHS |
| Housing material | Plastic |
| LED indicators | Activity, Link, Power |
| Plug and Play | Yes |
| Certification | CE, FCC |

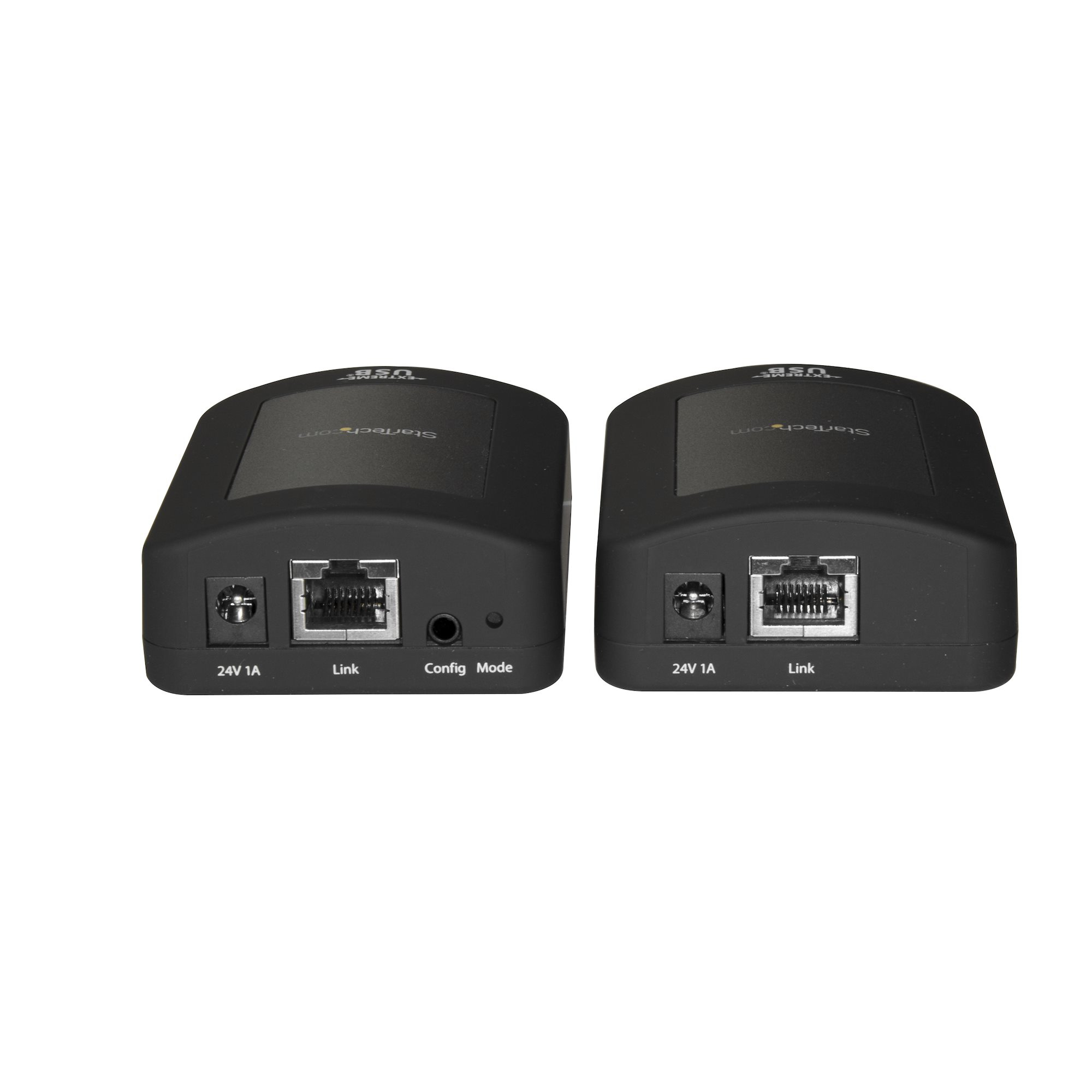

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 88 mm |
| Height | 30 mm |
| Weight | 620 g |
| Transmitter weight | 171 g |
| Receiver weight | 171 g |
| Package width | 196 mm |
| Package depth | 247 mm |
| Package height | 107 mm |
| Package weight | 1.1 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |

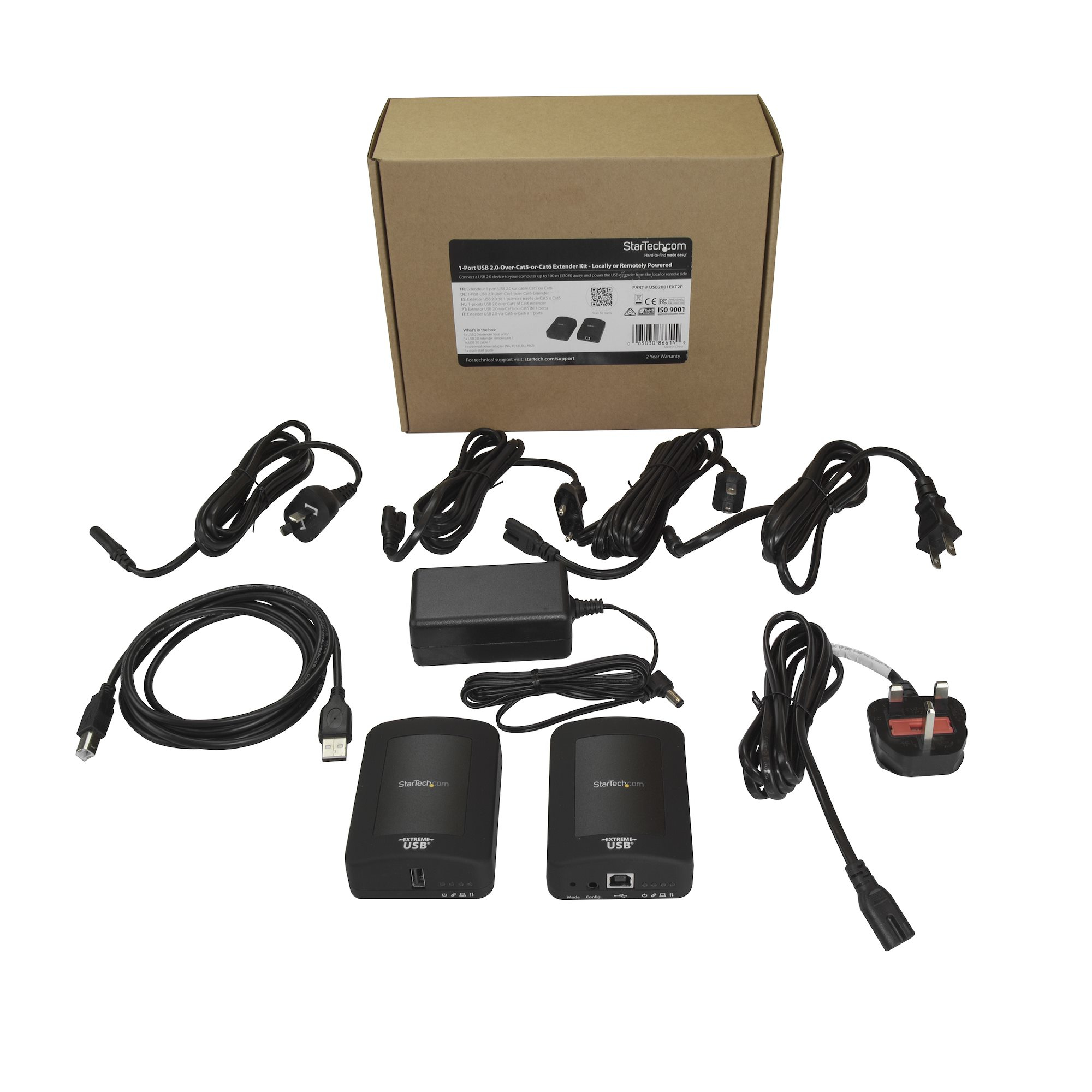

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Quick start guide | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (typical) | 24 W |
| Input voltage | 100 - 240 V |
| Input current | 0.58 A |
| Output voltage | 24 V |
| Output current | 1 A |
| Power plug type | Type M |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case width | 415 mm |
| Master (outer) case length | 554 mm |
| Master (outer) case height | 276 mm |
| Products per master (outer) case | 10 pc(s) |
