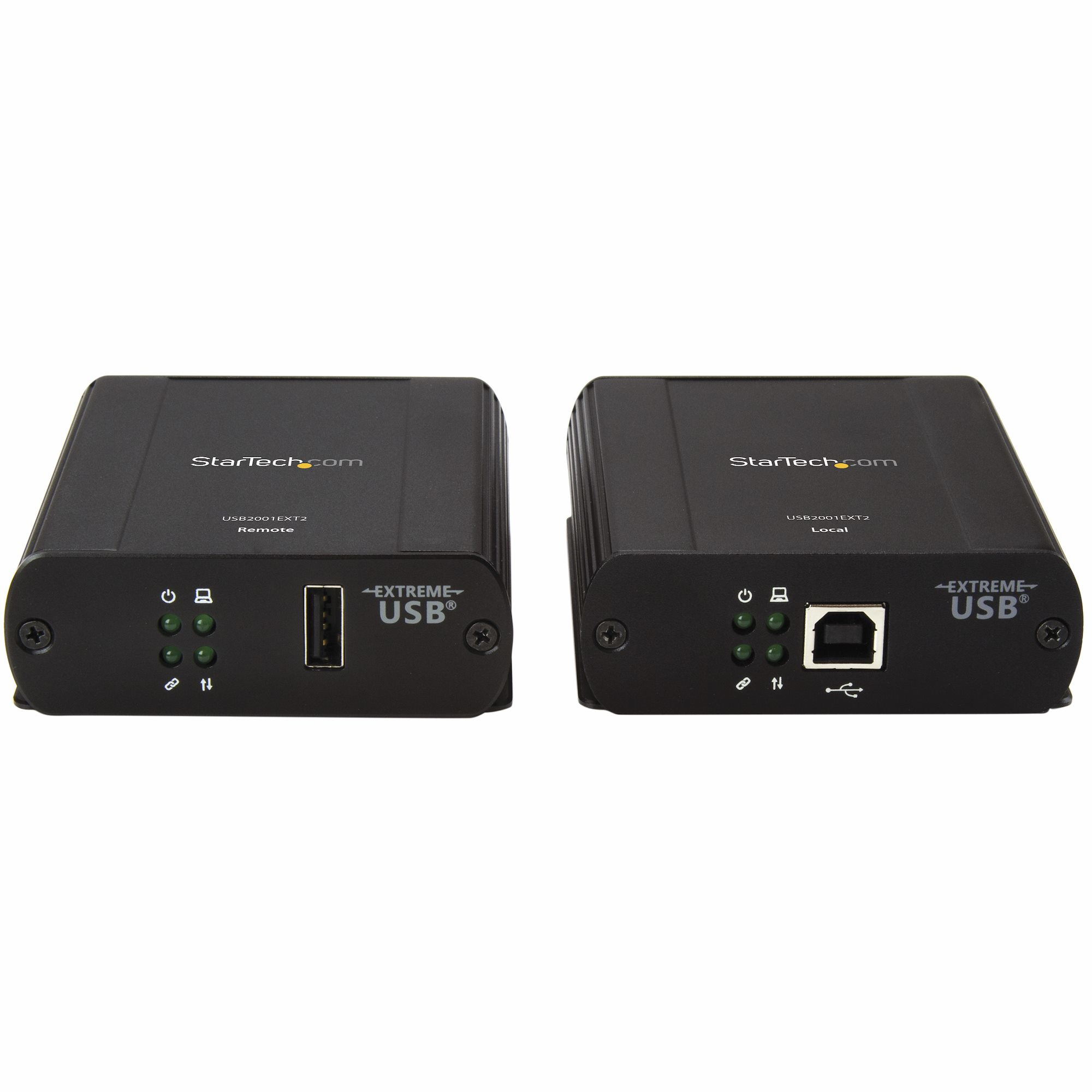

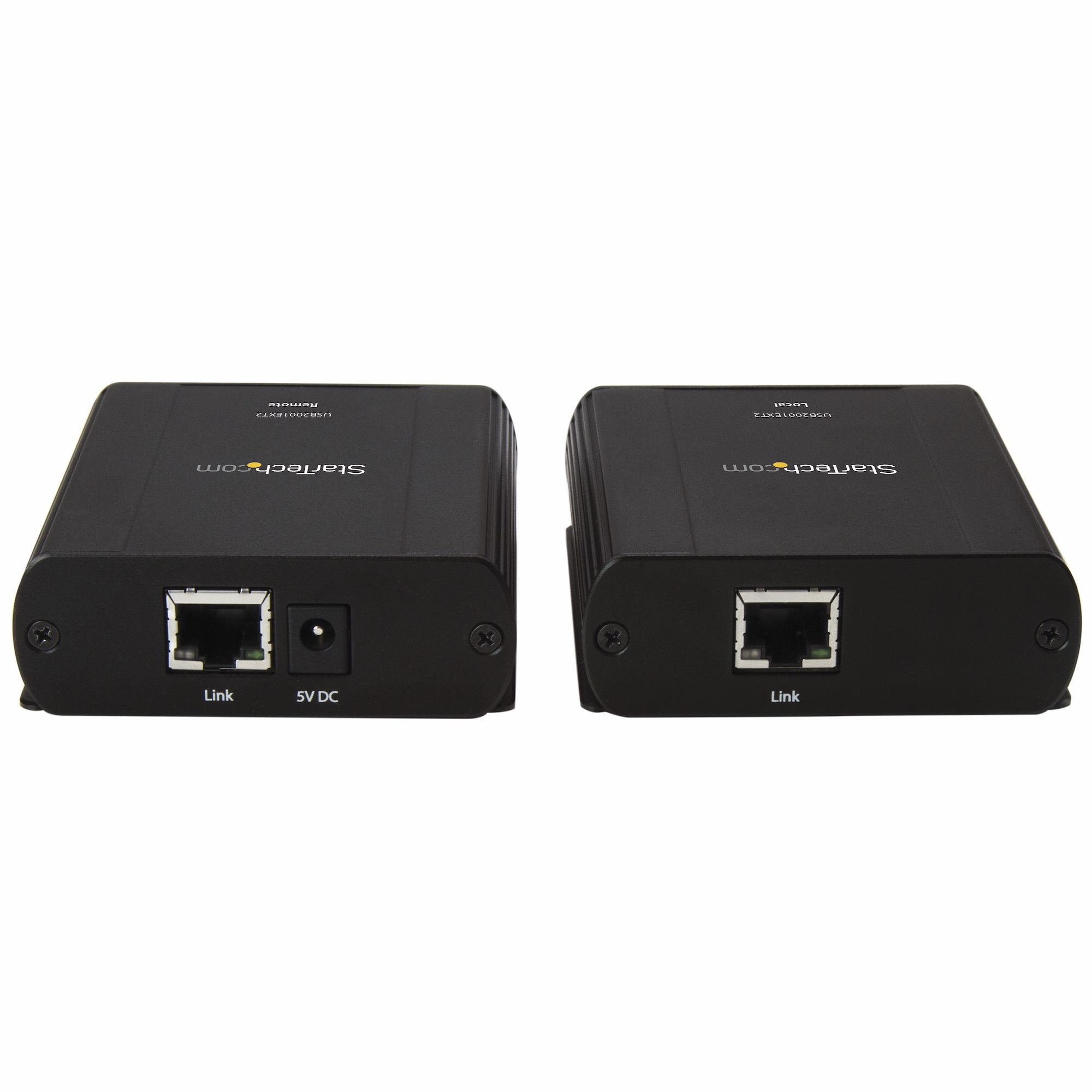

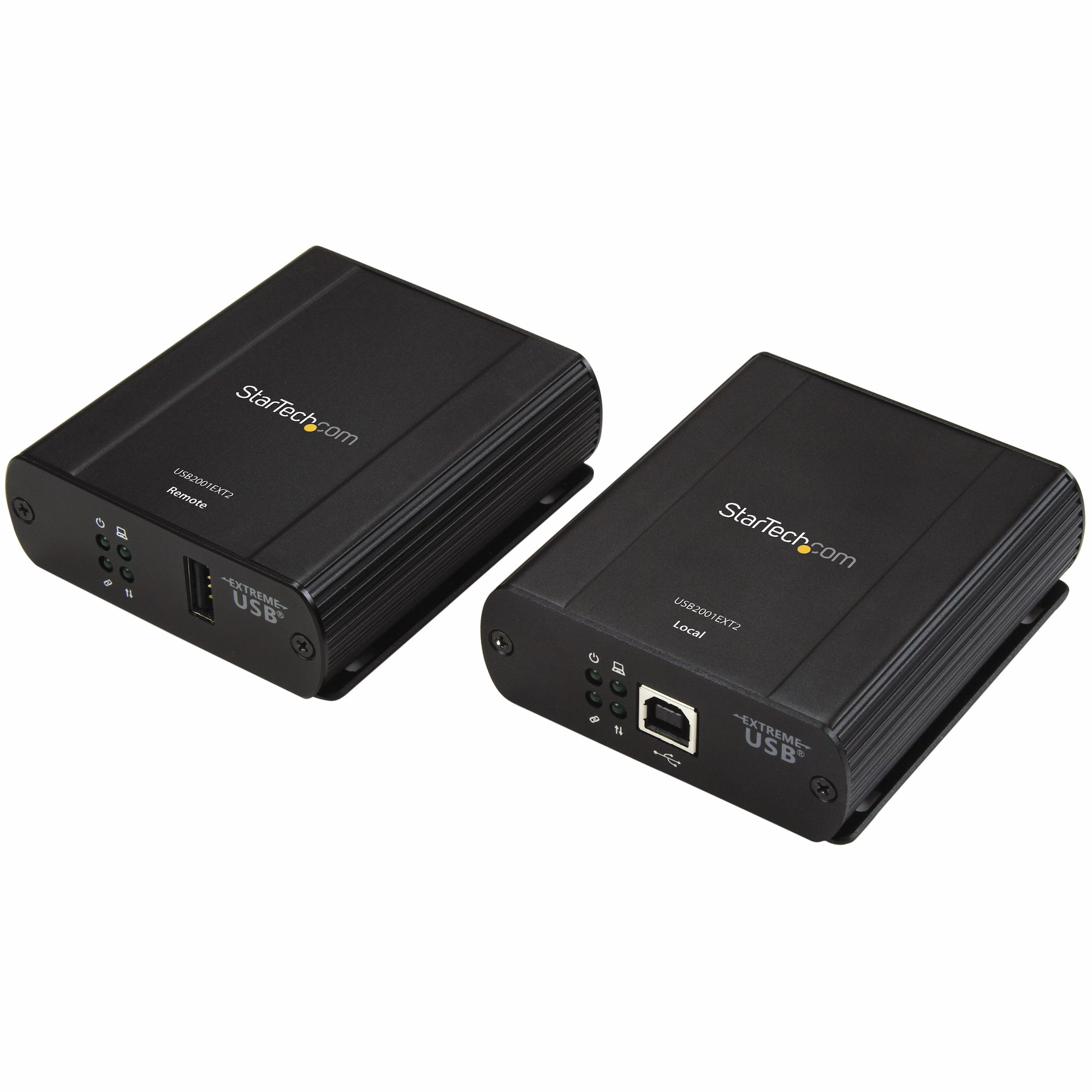

Newer version available USB2001EXT2NA: 1-Port USB 2.0 Ethernet Extender - Up to 330ft(100m) Extension Over Cat5/Cat6 -Industrial USB Over UTP Repea
Model USB2001EXT2EAN 5054629490563
38 specifications
- TypeConsole transmitter & receiver
- Weight315 g
- ColourBlack
- USB 2.0 ports quantity2
- Width76 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Type
- Console transmitter & receiver
- Weight
- 315 g
- Colour
- Black
- USB 2.0 ports quantity
- 2
- Width
- 76 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- Console Extender
- Model
- USB2001EXT2
- Part number
- USB2001EXT2
- EAN / UPC
- 5054629490563, 065030847780, 100177437880, 112840347013 +9 more
- Also known as
- StarTech.com Newer version available USB2001EXT2NA: 1-Port USB 2.0 Ethernet Extender - Up to 330ft(100m) Extension Over Cat5/Cat6 -Industrial USB Over UTP Repea
Specifications
38 specifications in 7 groups
Technical details
| Specification | Value |
|---|---|
| Type | Console transmitter & receiver |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 100 m |
| Product colour | Black |
| Cable types supported | Cat5e, Cat6 |
| Compliance certificates | RoHS |
| Housing material | Aluminium |
| LED indicators | Activity, Link |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76 mm |
| Depth | 100 mm |
| Height | 26 mm |
| Weight | 315 g |
| Package width | 250 mm |
| Package depth | 200 mm |
| Package height | 75 mm |
| Package weight | 1.2 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |

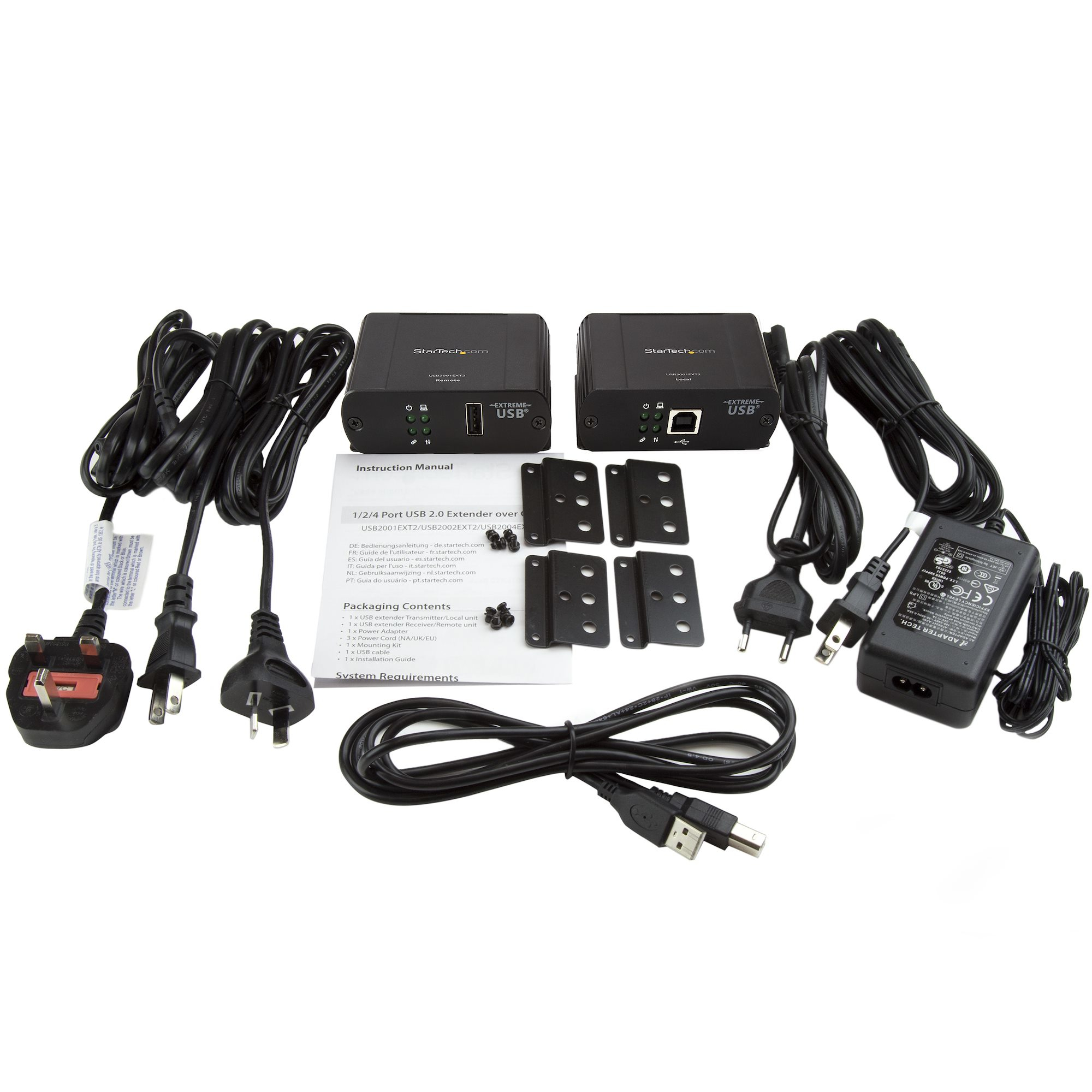

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Mounting kit | Yes |
| Quick start guide | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
| Input voltage | 110 - 240 V |
| Input current | 0.6 A |
| Output voltage | 5 V |
| Output current | 3 A |
| Power plug type | Type C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 508 mm |
| Master (outer) case height | 400 mm |
| Products per master (outer) case | 24 pc(s) |
