Newer version available USB2004EXT2NA; 4-Port USB Extender - Up to 330 ft (100m) USB 2.0 over Cat5/Cat6 Extender - 480 Mbps USB Over Ethernet Exten
Model USB2004EXT2EAN 5054629236314
38 specifications
- TypeConsole transmitter & receiver
- Weight600 g
- ColourBlack
- USB 2.0 Type-A ports quantity4
- Width76 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Type
- Console transmitter & receiver
- Weight
- 600 g
- Colour
- Black
- USB 2.0 Type-A ports quantity
- 4
- Width
- 76 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- Console Extender
- Model
- USB2004EXT2
- Part number
- USB2004EXT2
- EAN / UPC
- 5054629236314, 065030841559, 148646993758, 163121397197 +3 more
- Also known as
- StarTech.com Newer version available USB2004EXT2NA; 4-Port USB Extender - Up to 330 ft (100m) USB 2.0 over Cat5/Cat6 Extender - 480 Mbps USB Over Ethernet Exten
Specifications
38 specifications in 7 groups
Technical details
| Specification | Value |
|---|---|
| Type | Console transmitter & receiver |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 100 m |
| Product colour | Black |
| Cable types supported | Cat5, Cat6 |
| Compliance certificates | RoHS |
| Housing material | Aluminium, Plastic |
| LED indicators | Activity, Link, Power |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 Type-A ports quantity | 4 |
| USB 2.0 Type-B ports quantity | 1 |

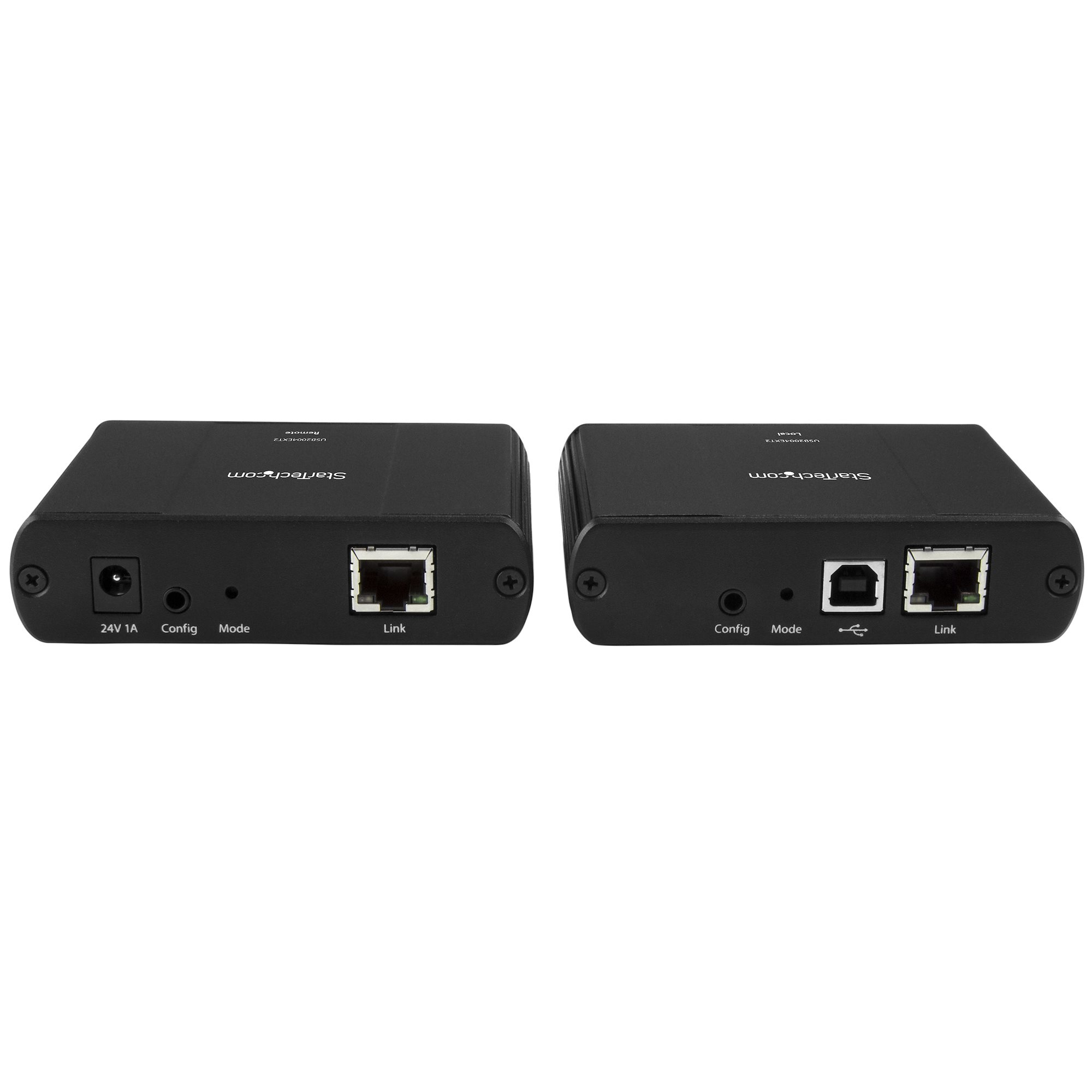

| RJ-45 ports quantity | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76 mm |
| Depth | 100 mm |
| Height | 26 mm |
| Weight | 600 g |
| Package width | 195 mm |
| Package depth | 245 mm |
| Package height | 110 mm |
| Package weight | 1.3 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB |
| Mounting kit | Yes |
| Quick start guide | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 5 V |
| Output current | 3 A |
| Power plug type | Type M |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case width | 196 mm |
| Master (outer) case length | 560 mm |
| Master (outer) case height | 107 mm |
| Products per master (outer) case | 28 pc(s) |
