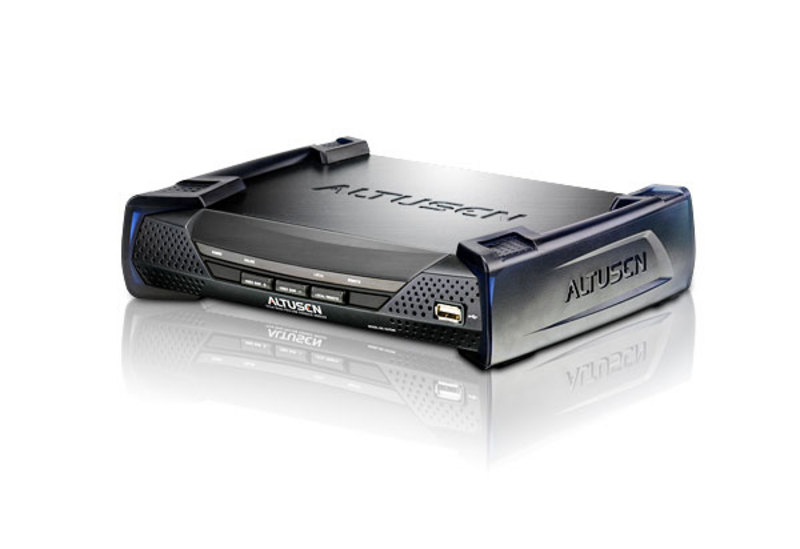

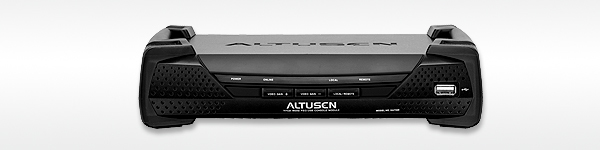

KA7240
Model KA7240Part no. DCP2963EAN 4710423776289
20 specifications
- Weight1.26 kg
- ColourBlack
- Maximum transfer distance300 m
- VGA (D-Sub) ports quantity1
- Width227.1 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 1.26 kg
- Colour
- Black
- Maximum transfer distance
- 300 m
- VGA (D-Sub) ports quantity
- 1
- Width
- 227.1 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Console Extender
- Model
- KA7240
- Part number
- DCP2963
- EAN / UPC
- 4710423776289
- Also known as
- ATEN KA7240
Specifications
20 specifications in 5 groups
Technical details
| Specification | Value |
|---|---|
| Maximum transfer distance | 300 m |
| Product colour | Black |
| Compliance certificates | RoHS |

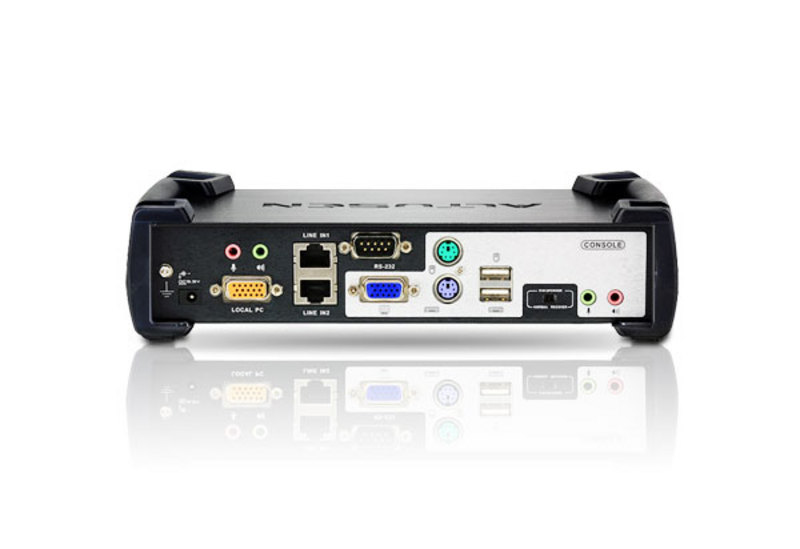

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 2 |
| RS-232 ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| KVM switch ports quantity | 1 |
| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 227.1 mm |
| Depth | 171.5 mm |
| Height | 54.8 mm |
| Weight | 1.26 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Packaging content
| Specification | Value |
|---|---|
| Cables included | KVM, RS-232 |
