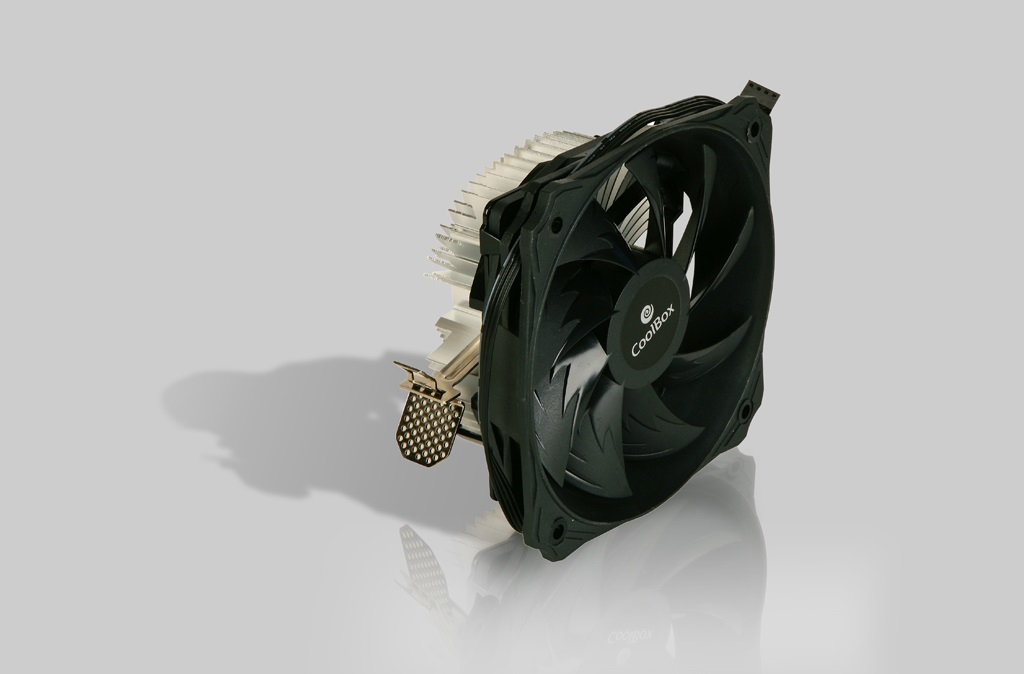

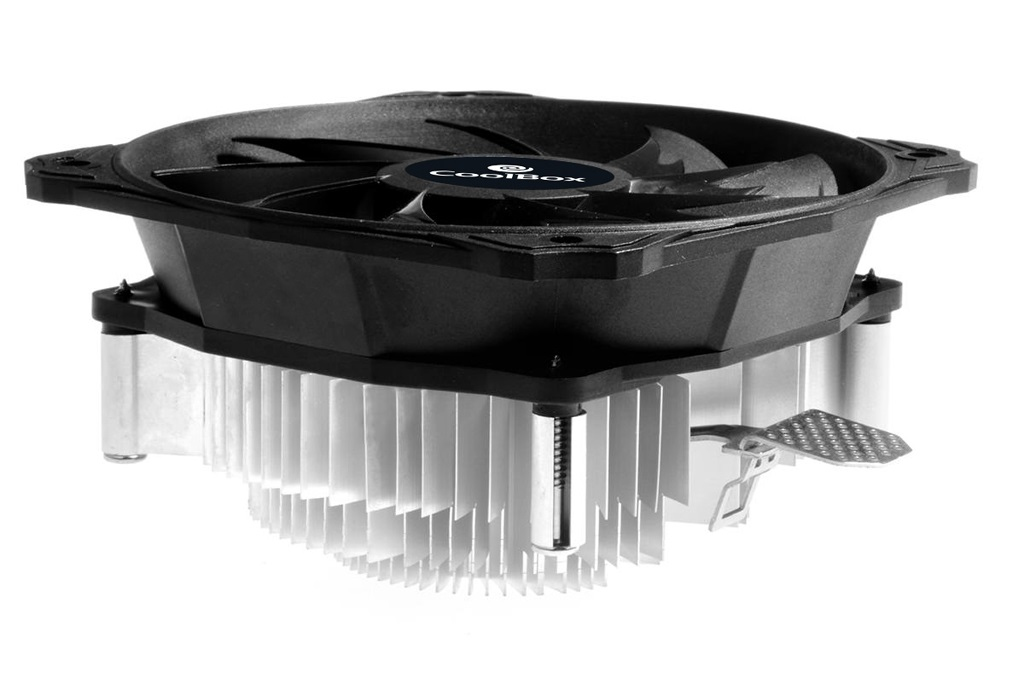

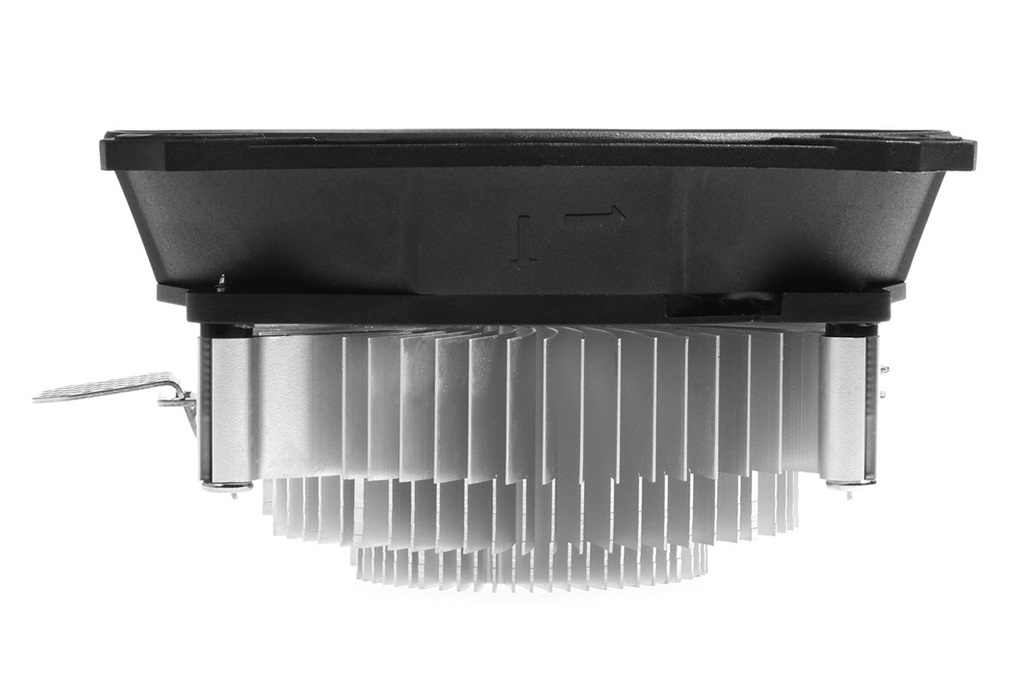

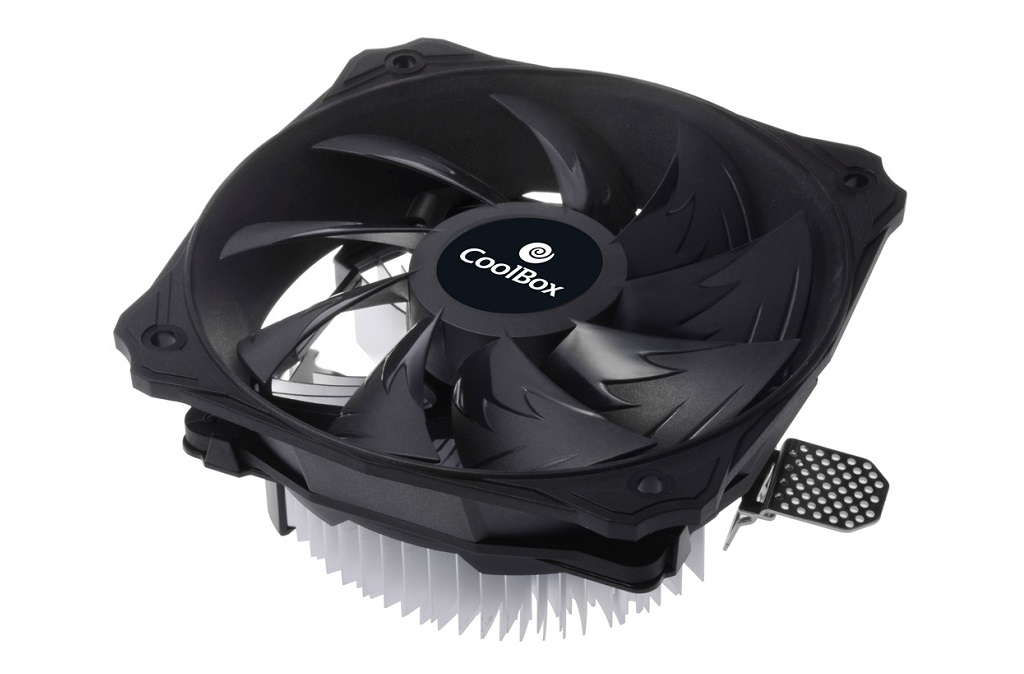

CoolBox Plannar 120
Model Plannar 120Part no. VENCOOPL120PEAN 8436556141874
26 specifications
- Noise16 dB
- TypeCooler
- Weight250 g
- ColourBlack
- Suitable locationProcessor
- Power consumption (typical)1.8 W
Overview
- Noise
- 16 dB
- Type
- Cooler
- Weight
- 250 g
- Colour
- Black
- Suitable location
- Processor
- Power consumption (typical)
- 1.8 W
- Brand
- CoolBox
- Category
- Computer Cooling System
- Model
- Plannar 120
- Part numbers
- VENCOOPL120P, COO-VCP120-PWM, COO-VCB120-PWM
- EAN / UPC
- 8436556141874
- Also known as
- CoolBox Plannar 120 Processor Cooler 12 cm Black
Specifications
26 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+, LGA 1151 (Socket H4) |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 1600 RPM |
| Noise level (low speed) | 16 dB |
| Noise level (high speed) | 20.2 dB |
| Maximum airflow | 56 cfm |
| Maximum air pressure | 1.7 mmH2O |
| Mean time between failures (MTBF) | 30000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Aluminium |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.8 W |
| Voltage | 12 V |
| Rated current | 0.15 A |
| Thermal Design Power (TDP) | 100 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 63 mm |
| Weight | 250 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan thickness | 2.5 cm |
Technical details
| Specification | Value |
|---|---|
| Bearing technology | Hydraulic |
