Silent Loop 3 420 mm
Model Silent Loop 3 420 mmPart no. BW026EAN 4260052192559
62 specifications
- Noise19.4 dB
- TypeAll-in-one liquid cooler
- Weight2.01 kg
- ColourBlack
- Suitable locationProcessor
- Fan power consumption3.6 W
Overview
- Noise
- 19.4 dB
- Type
- All-in-one liquid cooler
- Weight
- 2.01 kg
- Colour
- Black
- Suitable location
- Processor
- Fan power consumption
- 3.6 W
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- Silent Loop 3 420 mm
- Part number
- BW026
- EAN / UPC
- 4260052192559
- Also known as
- be quiet! Silent Loop 3 420 mm Processor All-in-one liquid cooler 14 cm Black 1 pc(s)
Specifications
62 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 14 cm |
| Supported processor sockets | LGA 1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket TR5 |
| Noise level (low speed) | 19.4 dB |
| Noise level (high speed) | 34.3 dB |
| Maximum airflow | 78.4 cfm |
| Airflow | 133.2 m³/h |
| Maximum air pressure | 2.36 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pump connector | 4-pin |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1900 RPM |
| Pump motor speed | 3500 RPM |
| Pump motor speed (max) | 3500 RPM |
| Pump motor speed (min) | 1700 RPM |
| Fan's mean time to failure (MTTF) | 300000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 3 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 3.6 W |
| Fan current | 0.3 A |
| Fan voltage | 12 V |
| LED voltage | 5 V |

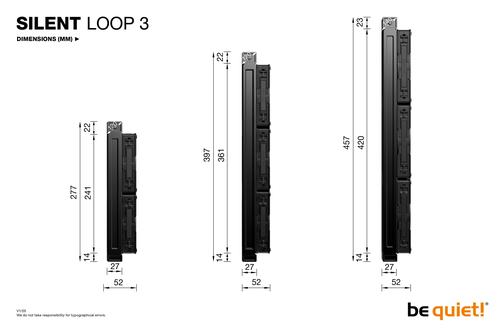

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 52 mm |
| Height | 475 mm |
| Radiator width | 14 cm |
| Radiator depth | 45.7 cm |
| Radiator height | 2.7 cm |
| Tube length | 40 cm |
| Waterblock width | 8 cm |
| Waterblock depth | 5.6 cm |
| Waterblock height | 9.35 cm |
| Weight | 2.01 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Cable length | 0.5 m |
| Package width | 204 mm |
| Package depth | 499 mm |
| Package height | 154 mm |
| Package weight | 3.3 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
| Sustainability certificates | Triman |
| Warranty period | 3 year(s) |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| Manual | Yes |
| CPU bracket(s) | Yes |
Other features
| Specification | Value |
|---|---|
| Thermal grease | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 4 pc(s) |
| Shipping (inner) case width | 42.4 cm |
| Shipping (inner) case length | 51.1 cm |
| Shipping (inner) case height | 33.6 cm |
| Shipping (inner) case gross weight | 14.8 kg |
