Pure Loop 3 | 280mm
Model Pure Loop 3 | 280mmPart no. BW028USEAN 4260052193365
60 specifications
- Noise16.5 dB
- TypeAll-in-one liquid cooler
- Weight1.06 kg
- ColourBlack
- Suitable locationProcessor
- Voltage12 V
Overview
- Noise
- 16.5 dB
- Type
- All-in-one liquid cooler
- Weight
- 1.06 kg
- Colour
- Black
- Suitable location
- Processor
- Voltage
- 12 V
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- Pure Loop 3 | 280mm
- Part number
- BW028US
- EAN / UPC
- 4260052193365
- Also known as
- be quiet! Pure Loop 3 | 280mm Processor All-in-one liquid cooler 14 cm Black 1 pc(s)
Specifications
60 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 14 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, LGA 1851 |
| Compatible processor series | AMD Ryzen 9000 Series, Intel® Core™ i9 |
| Noise level (low speed) | 16.5 dB |
| Noise level (high speed) | 36.6 dB |
| Maximum airflow | 72.2 cfm |
| Airflow | 122.6 m³/h |
| Maximum air pressure | 2.44 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Rifle bearing |
| Pump connector | 4-pin |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1800 RPM |
| Pump motor speed | 5500 RPM |
| Pump motor speed (max) | 5500 RPM |
| Pump motor speed (min) | 3000 RPM |
| Fan's mean time to failure (MTTF) | 80000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Number of fan blades | 9 |
| Illumination LED | No |
| Fan connector | 4-pin |
| Daisy chain | Yes |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Fan power consumption | 5.4 W |
| Fan current | 0.13 A |
| Maximum current | 0.45 A |

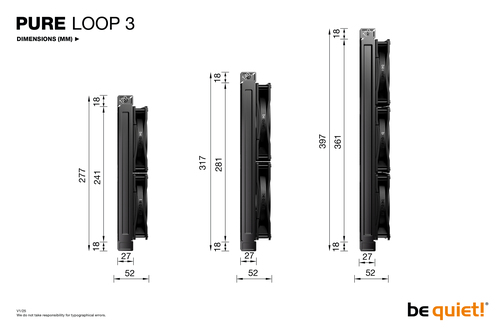

Weight & dimensions
| Specification | Value |
|---|---|
| Height | 52 mm |
| Radiator width | 14 cm |
| Radiator depth | 5.2 cm |
| Radiator height | 31.7 cm |
| Tube length | 40 cm |
| Waterblock width | 9.34 cm |
| Waterblock depth | 4.49 cm |
| Waterblock height | 6.85 cm |
| Weight | 1.06 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package width | 205 mm |
| Package depth | 365 mm |
| Package height | 152 mm |
| Package weight | 1.95 kg |
Certificates
| Specification | Value |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Doesn't contain | Cadmium, Lead, Mercury |
| Sustainability certificates | Triman |
| Warranty period | 3 year(s) |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Cables included | 4-pin |
| Mounting kit | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Thermal grease | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case width | 38 cm |
| Shipping (inner) case length | 47.6 cm |
| Shipping (inner) case height | 43.8 cm |
| Shipping (inner) case gross weight | 13.1 kg |
