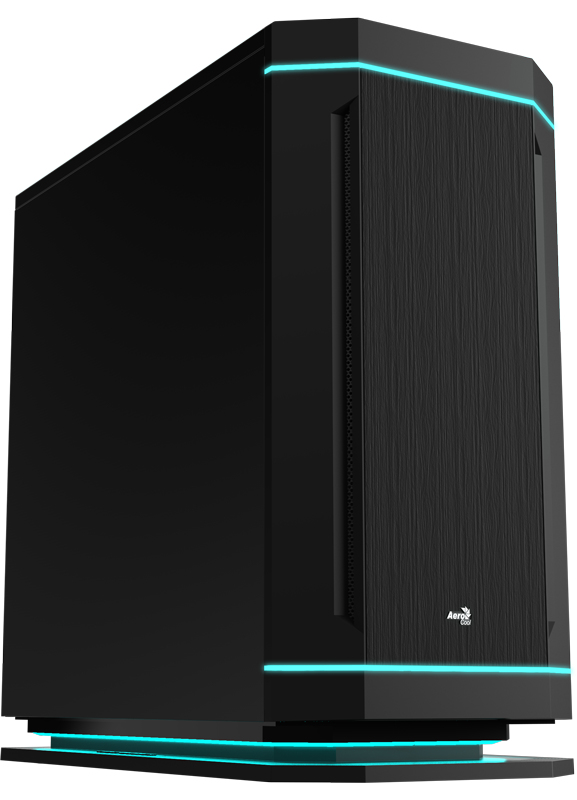

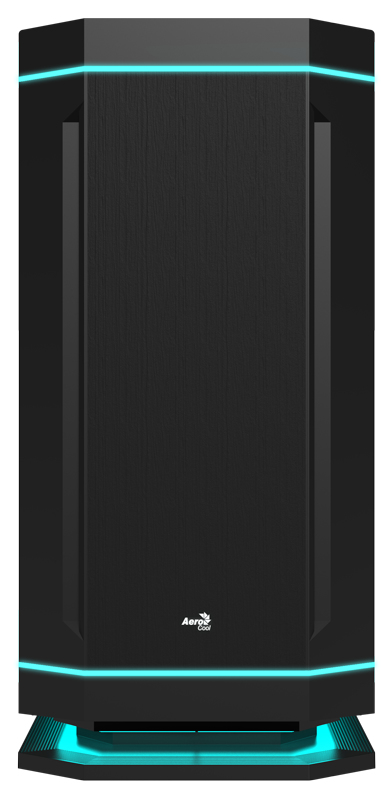

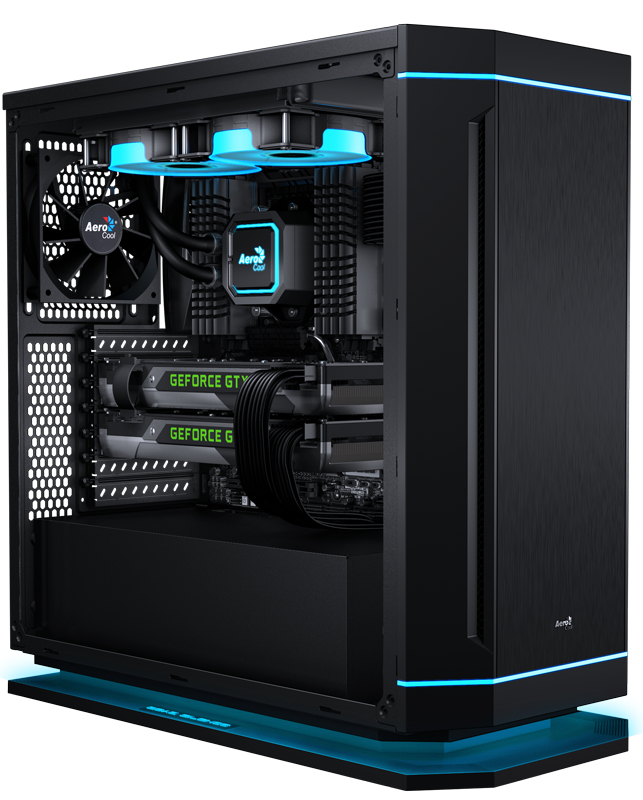

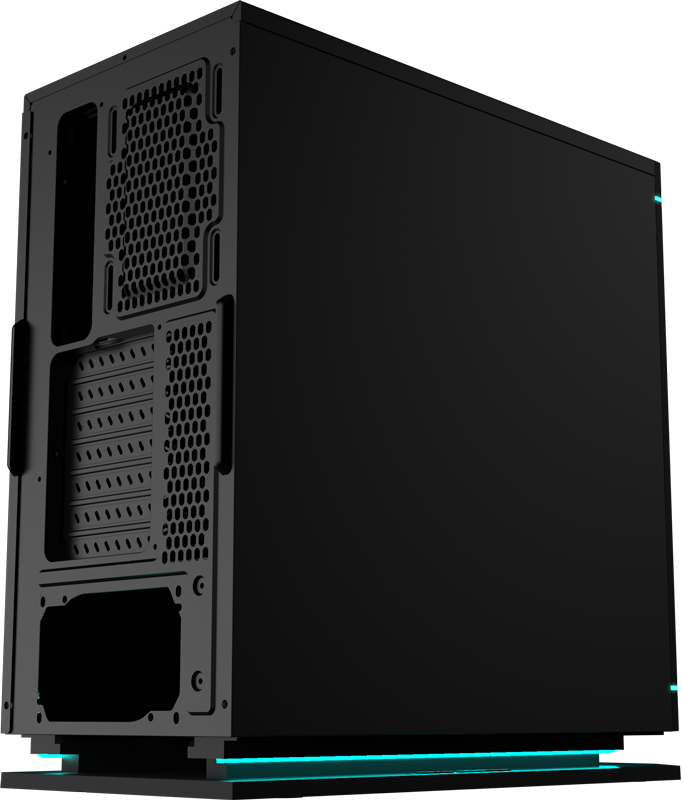

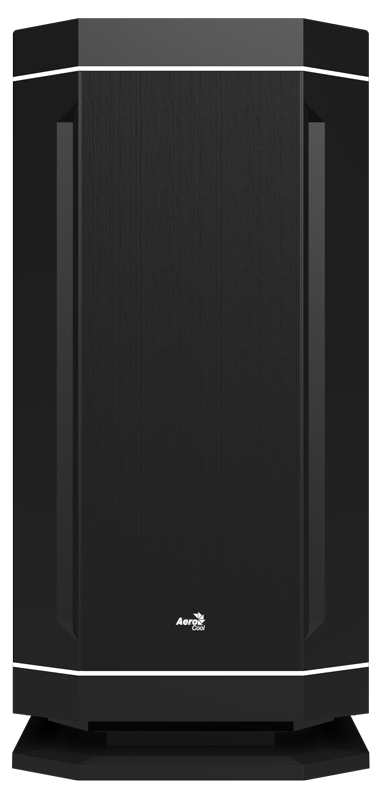

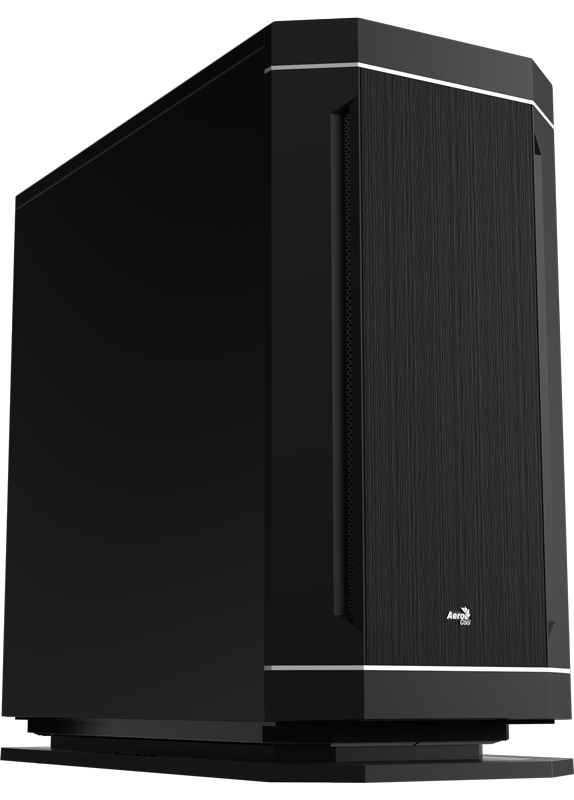

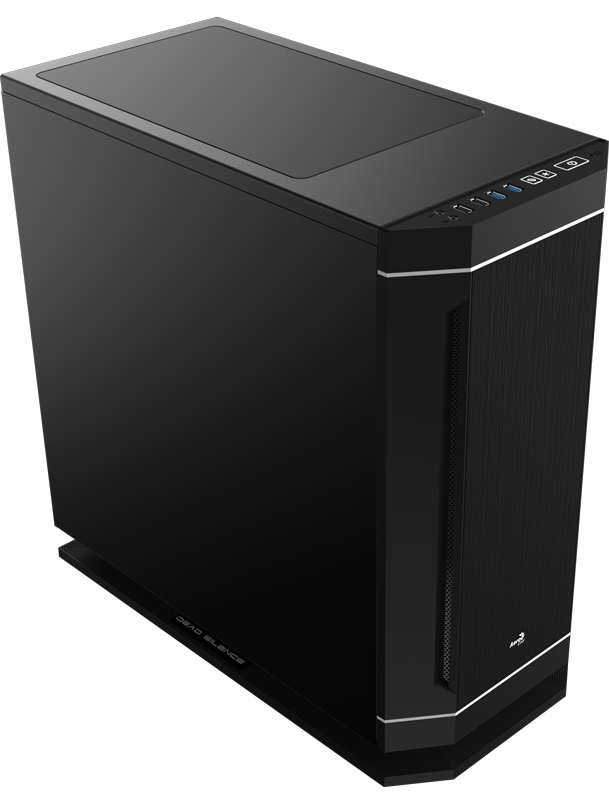

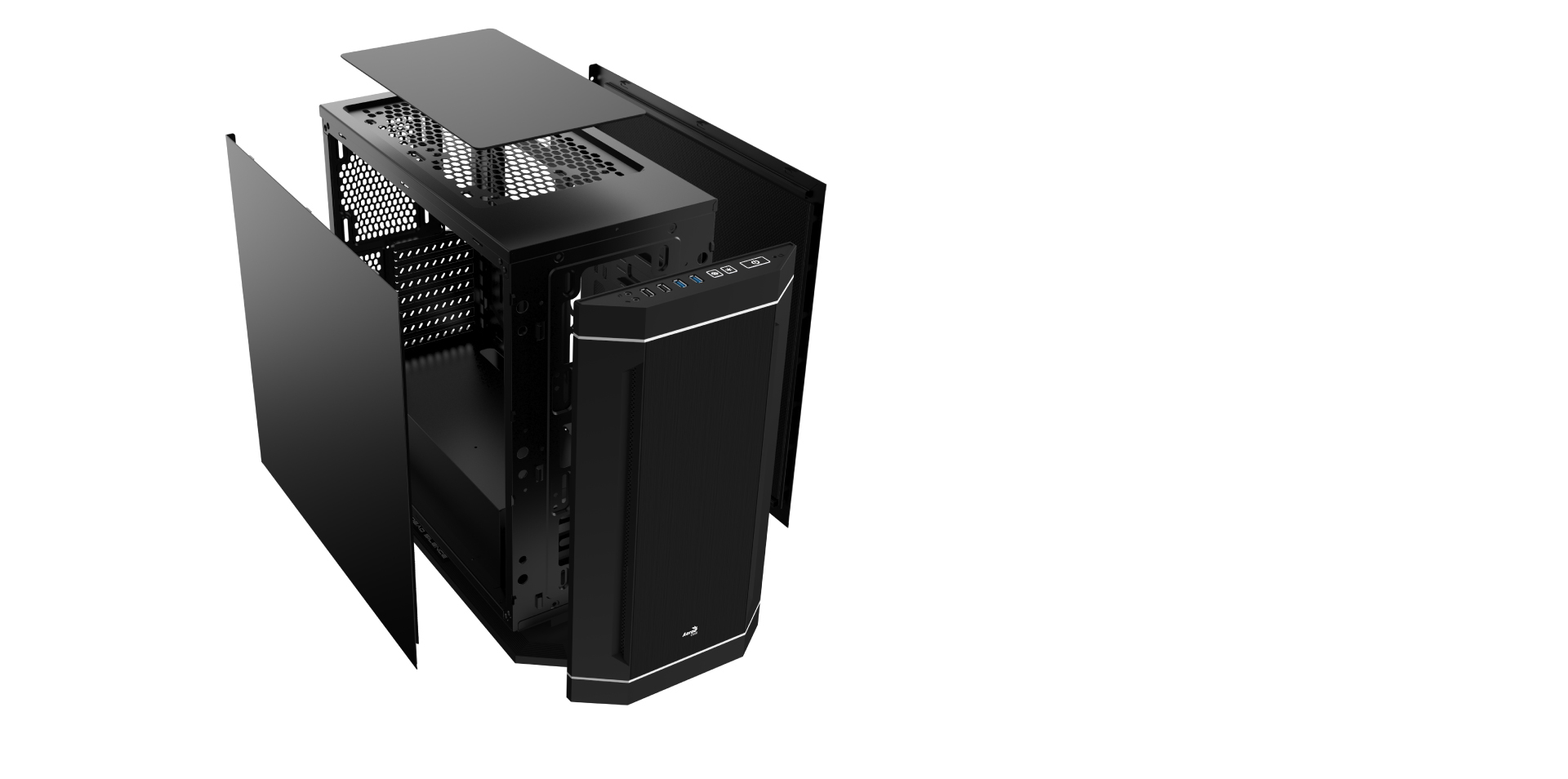

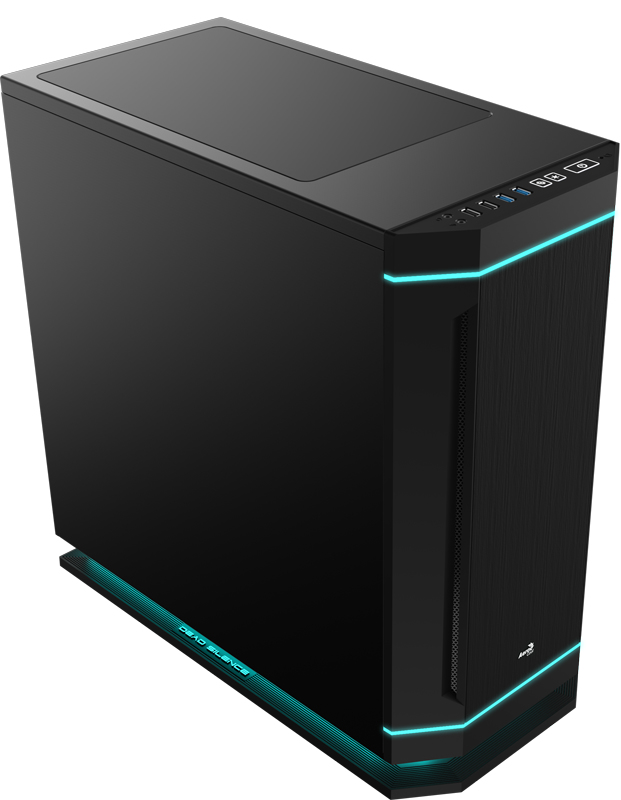

Aerocool DS 230
Model DS 230Part no. EN58331
43 specifications
- TypeMidi Tower
- Weight8.2 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Number of front fans supported (max)3
Overview
- Type
- Midi Tower
- Weight
- 8.2 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Number of front fans supported (max)
- 3
- Brand
- Aerocool
- Category
- Computer Case
- Model
- DS 230
- Part number
- EN58331
- Also known as
- Aerocool DS 230 Midi Tower Black
Specifications
43 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Steel |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Side window | No |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Bottom, Front, Side |
| Maximum CPU cooler height | 17 cm |
| Maximum graphics card length | 38.8 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Cooling | Yes |
| Liquid cooling capability | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Number of HDDs supported | 5 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 477.8 mm |
| Height | 475 mm |
| Weight | 8.2 kg |
| Material thickness | 7 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.7 kg |
Other features
| Specification | Value |
|---|---|
| Fan connector | 4-pin |
