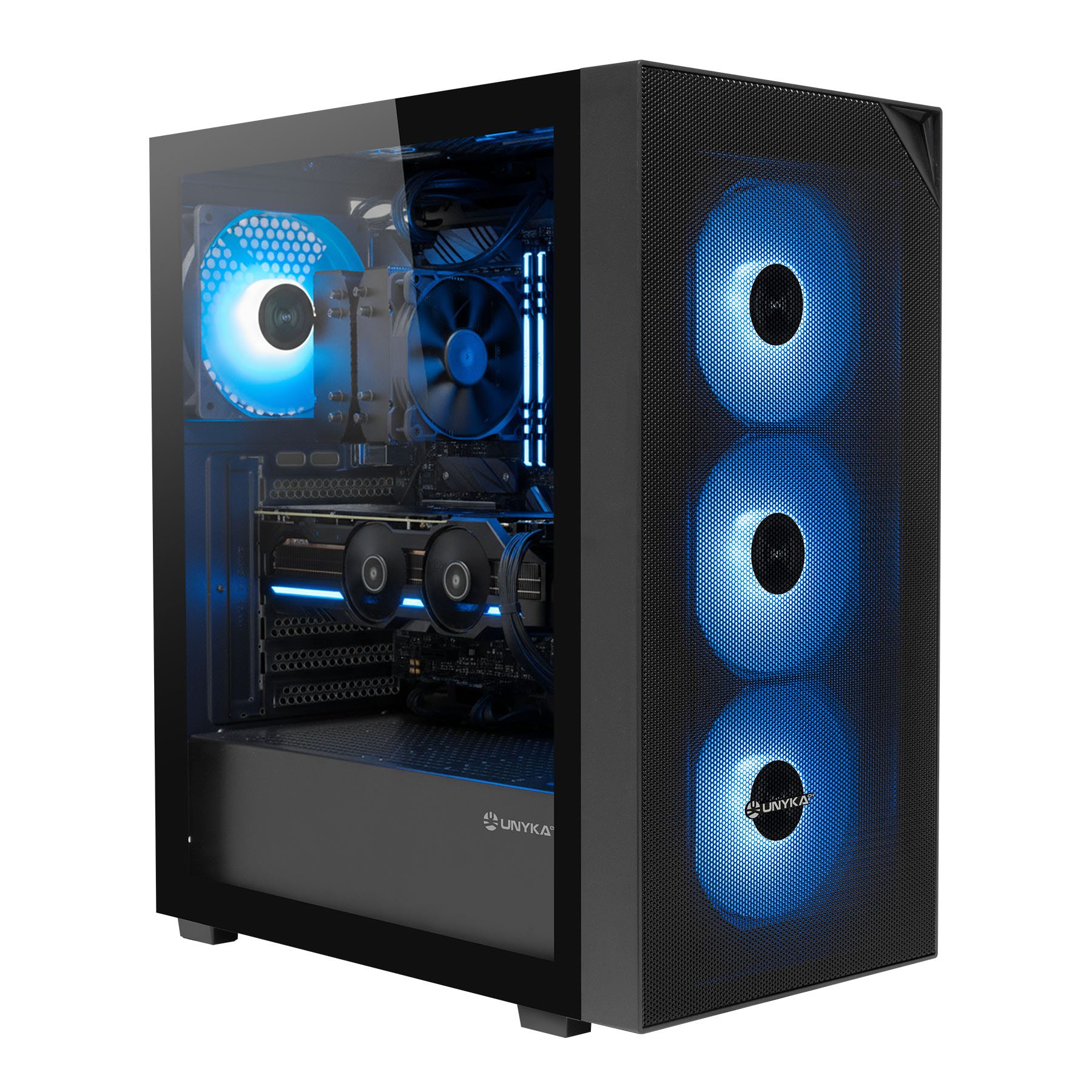

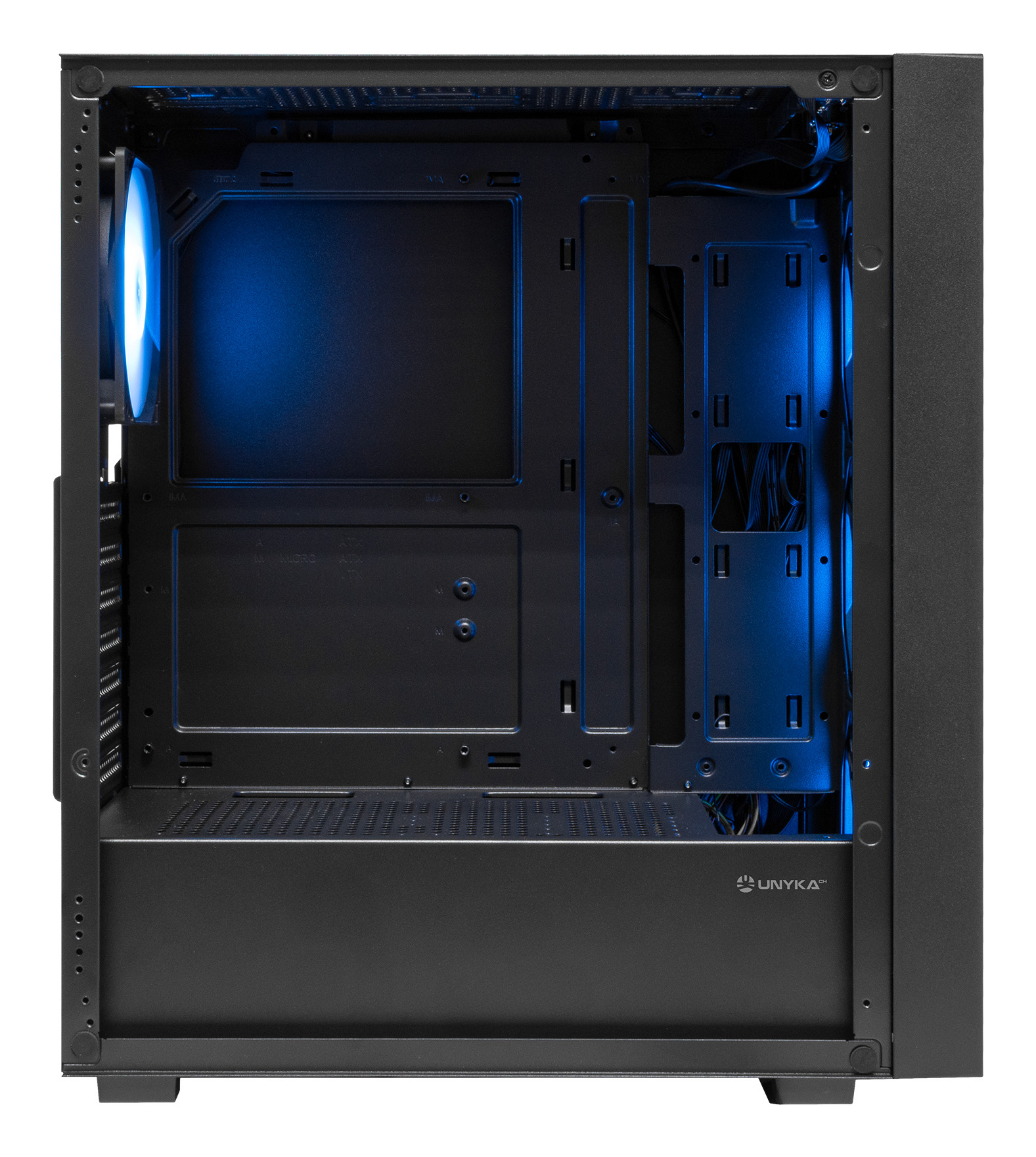

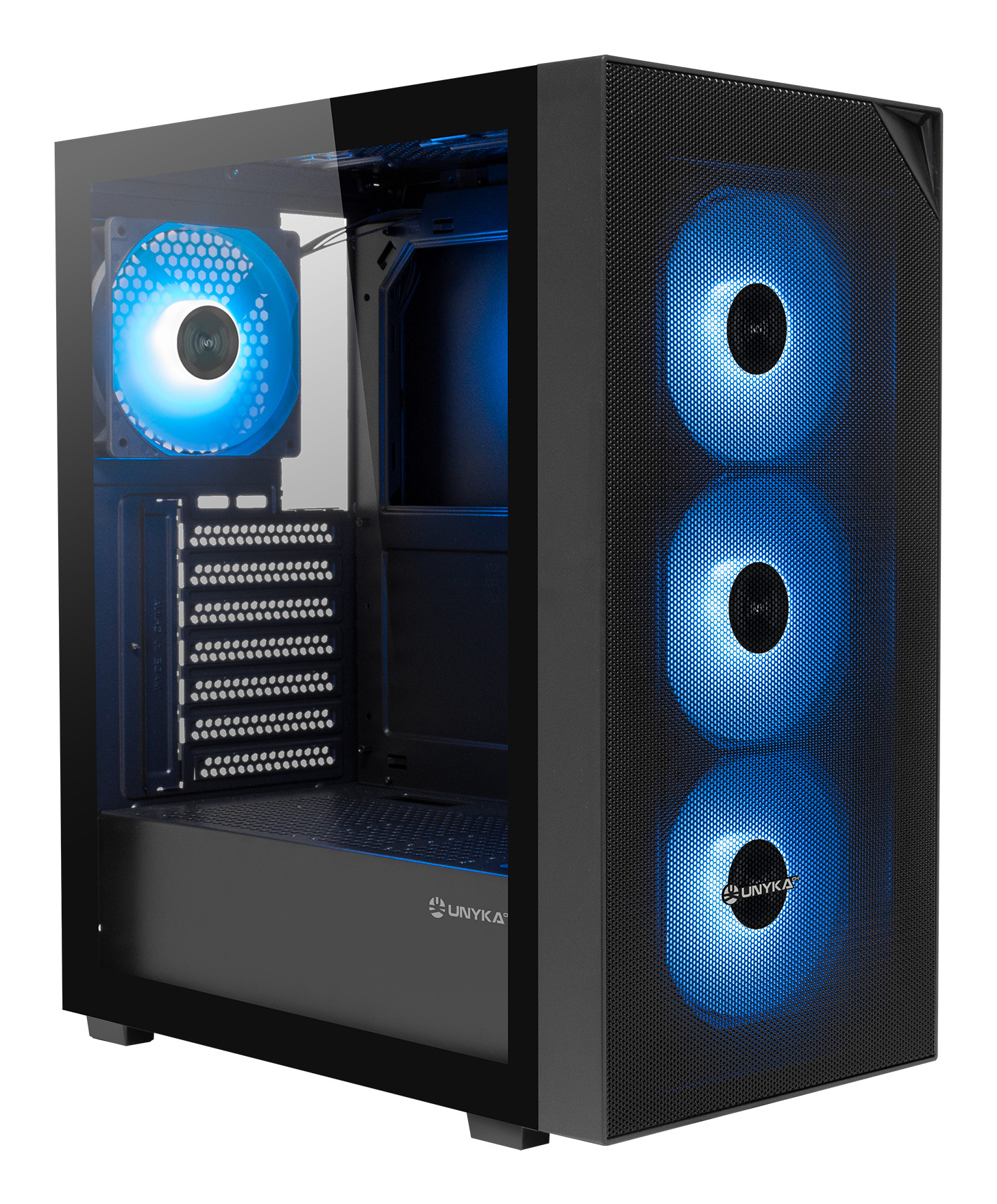

PC Case ATX Revelat Mesh Compact Edition
Model UK121805EAN 8436617921308
66 specifications
- Noise27 dB
- TypePC
- Weight5.66 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity1
Overview
- Noise
- 27 dB
- Type
- PC
- Weight
- 5.66 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Brand
- UNYKAch
- Category
- Computer Case
- Model
- UK121805
- Part number
- UK121805
- EAN / UPC
- 8436617921308
- Also known as
- UNYKAch PC Case ATX Revelat Mesh Compact Edition
Specifications
66 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SGCC, Tempered glass |
| Product colour | Black |

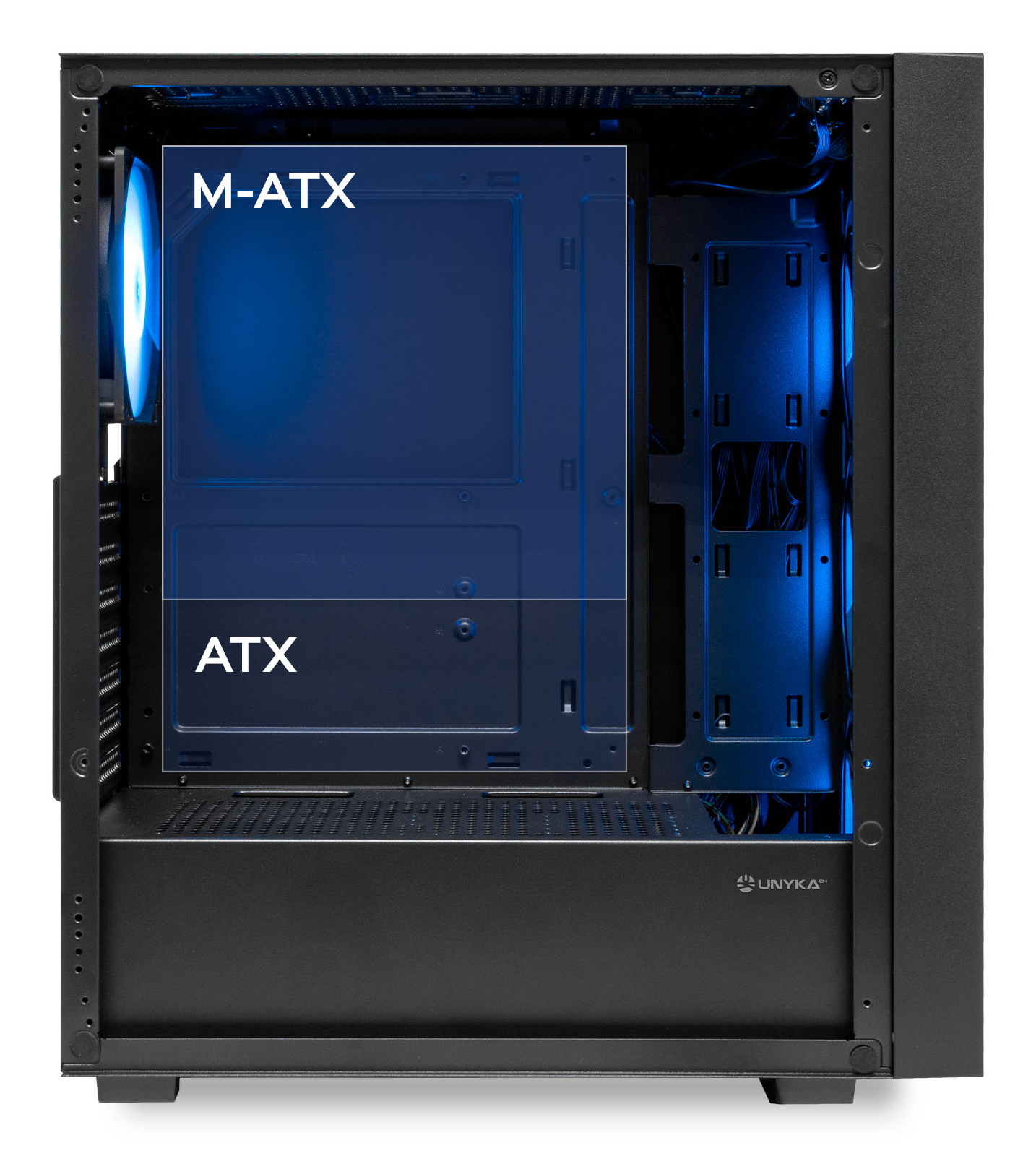

| Supported motherboard form factors | ATX, ITX, micro ATX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 0 |

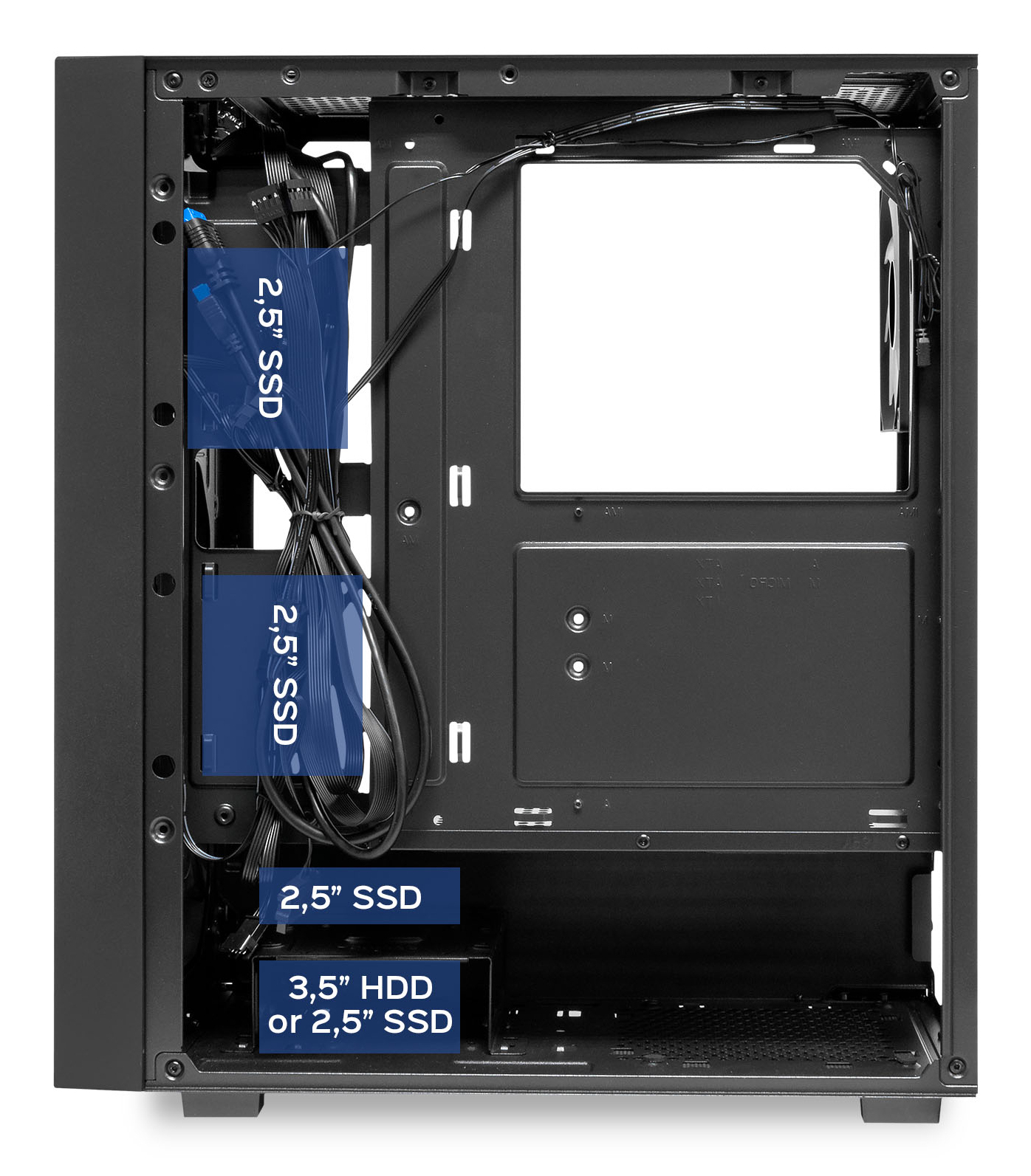

| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 1 |
| Number of storage drives supported | 4 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |

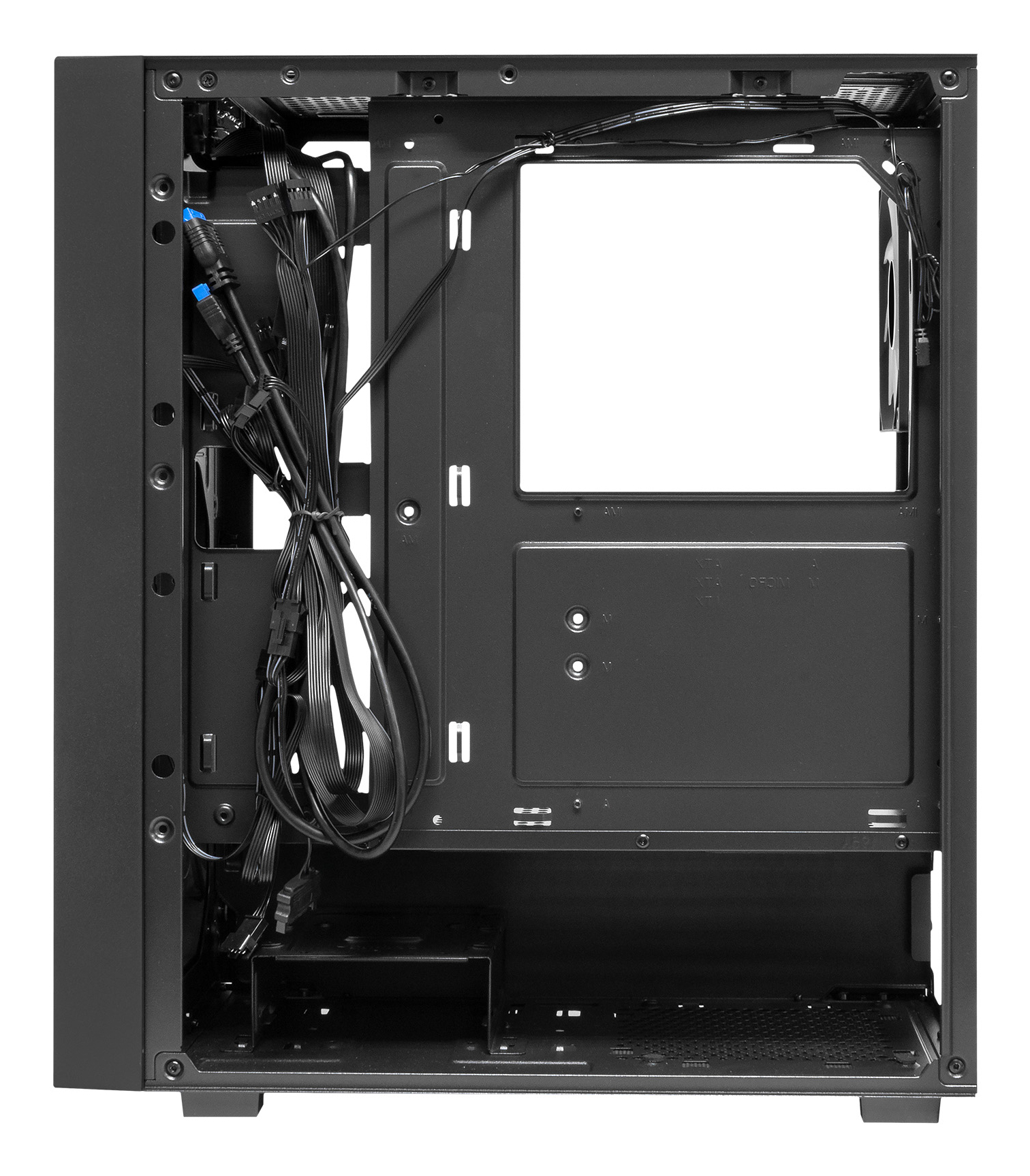

| Cable management | Yes |
| On/off button | Yes |
| RGB control button | Yes |
| Reset button | Yes |
| LED indicators | Yes |

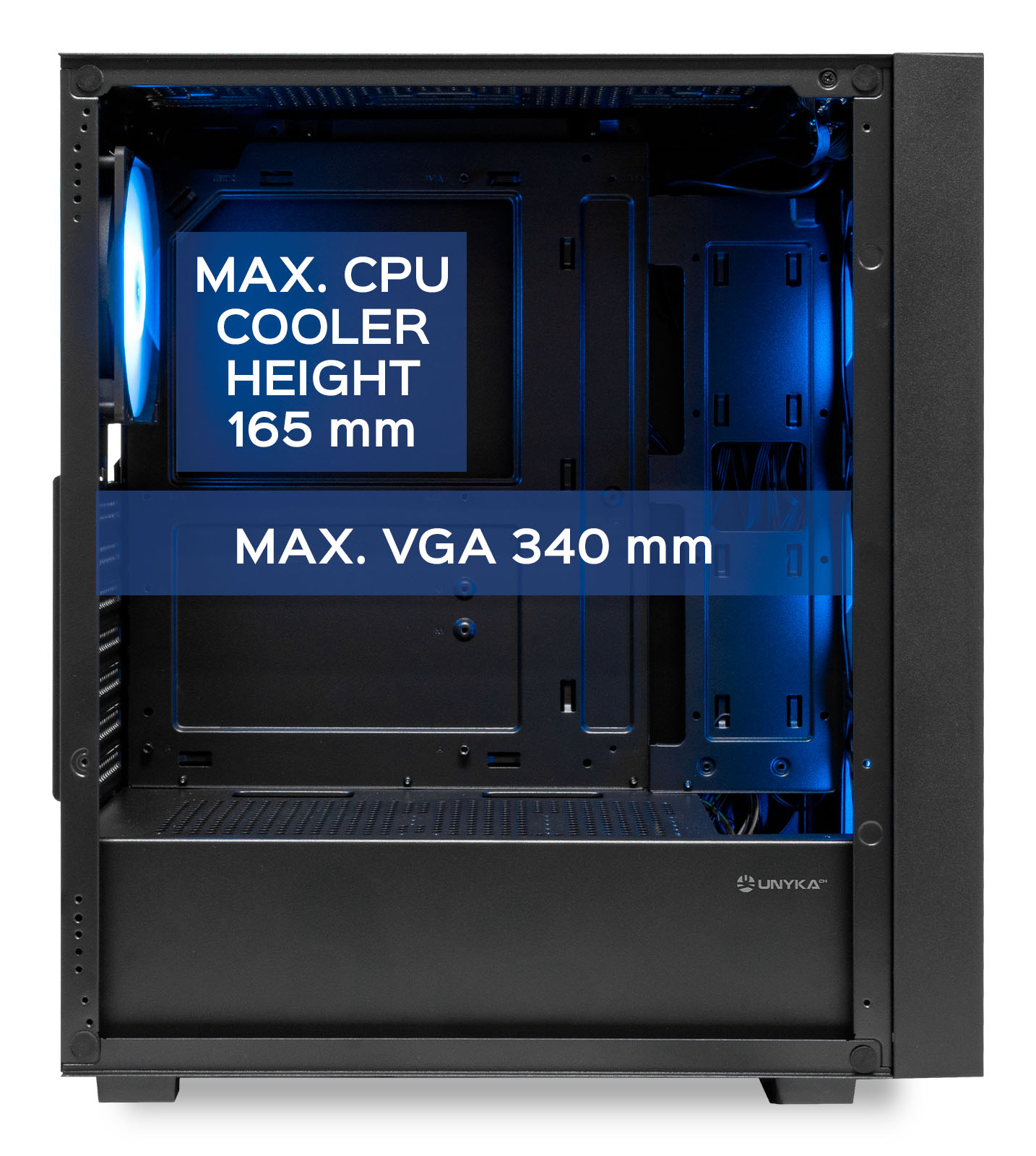

| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 34 cm |
| Maximum PSU length | 16 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|

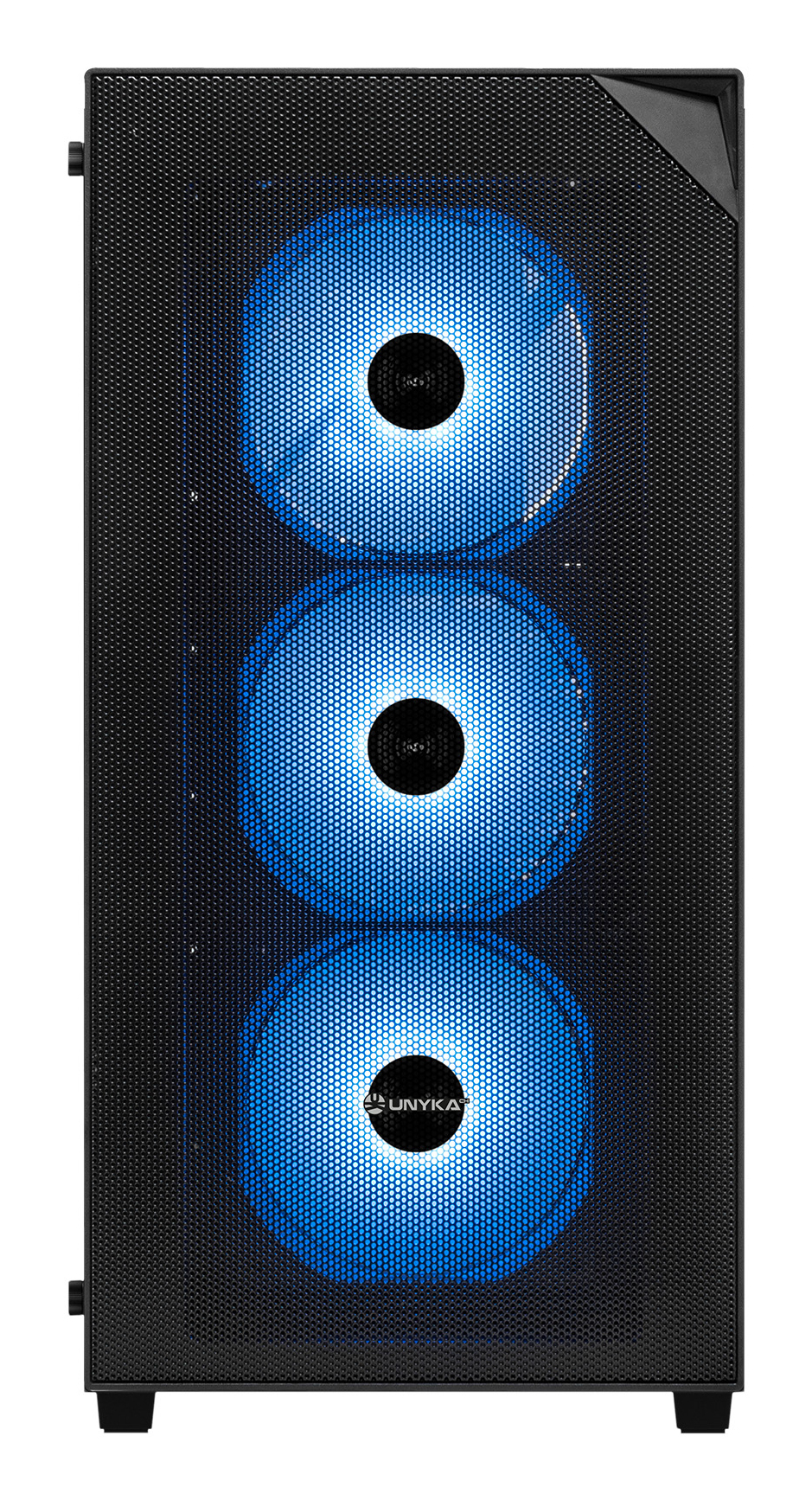

| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Fan speed | 800 - 1100 RPM |
| Maximum airflow | 48.1 cfm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,240,360 mm |
| Top radiator sizes supported | 120,240 mm |
| Pulse-width modulation (PWM) support | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 218 mm |
| Depth | 388 mm |
| Height | 448 mm |
| Weight | 5.66 kg |
| Material thickness | 0.45 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 265 mm |
| Package depth | 490 mm |
| Package height | 450 mm |
| Package weight | 6.74 kg |
Other features
| Specification | Value |
|---|---|
| Bearing type | Hydraulic |
| Noise level | 27 dB |
| Fan connector | 4-pin |
