Dark Base 701 Black
Model Dark Base 701 BlackPart no. BGW58EAN 4260052190654
65 specifications
- Noise29.3 dB
- TypeMidi Tower
- Weight12.8 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
Overview
- Noise
- 29.3 dB
- Type
- Midi Tower
- Weight
- 12.8 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Brand
- be quiet!
- Category
- Computer Case
- Model
- Dark Base 701 Black
- Part number
- BGW58
- EAN / UPC
- 4260052190654
- Also known as
- be quiet! Dark Base 701 Black Midi Tower
Specifications
65 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), Glass, Steel |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 10 |
| Side window | Yes |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Front |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| On/off button | Yes |
| RGB control button | Yes |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 41.5 cm |
| Maximum PSU length | 26 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX, PS2 |

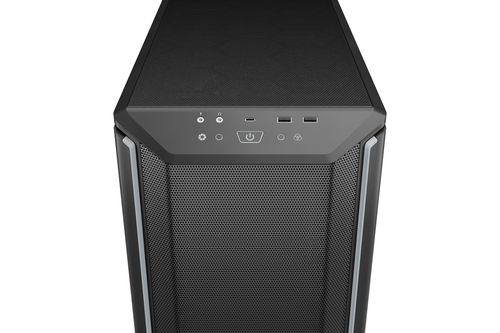

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 1x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Top fans installed | 1x 140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120,140 mm |
| Fan power consumption | 4.8 W |
| Fan rated current | 0.4 A |
| Fan rated voltage | 12 V |
| Fan speed | 0 - 1900 RPM |
| Maximum air pressure | 2.36 mmH2O |
| Maximum airflow | 78.4 cfm |
| Noise level (high speed) | 29.3 dB |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 140,240,360,120,280 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS, UKCA, WEEE |
| Sustainability certificates | Triman |
| Sustainability compliance | Yes |

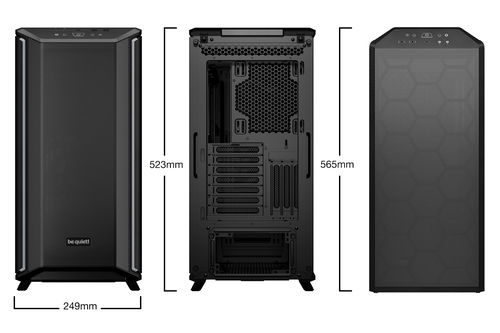

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 249 mm |
| Depth | 565 mm |
| Height | 495 mm |
| Weight | 12.8 kg |
Packaging data
| Specification | Value |
|---|---|

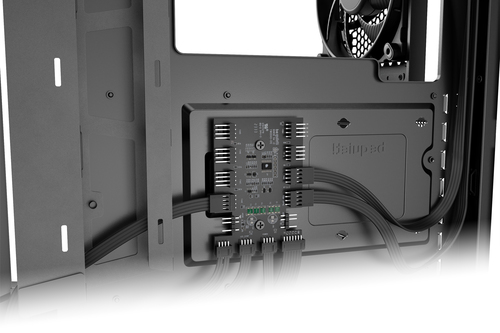

| LED controller | Yes |
| Package width | 343 mm |
| Package depth | 594 mm |
| Package height | 670 mm |
| Package weight | 15.5 kg |
Other features
| Specification | Value |
|---|---|
| Fan connector | 4-pin |
| Volume | 69.64 L |
| Mean time between failures (MTBF) | 300000 h |
