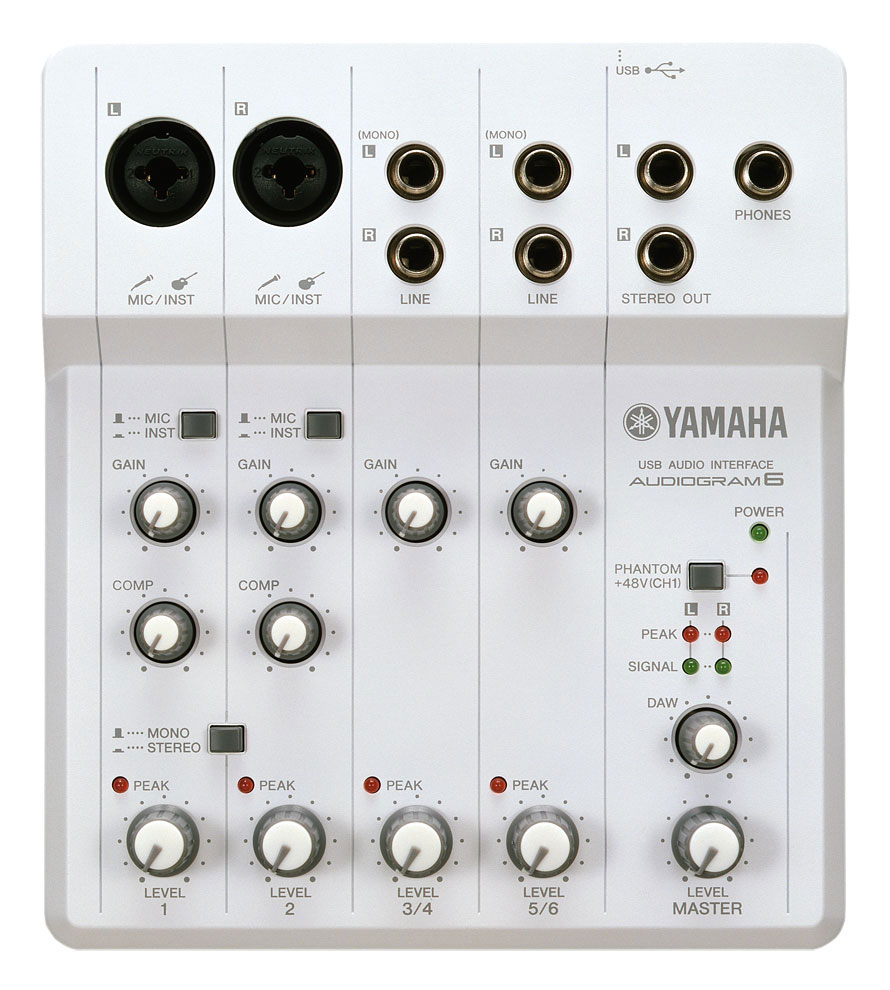

AUDIOGRAM 6
Model AUDIOGRAM 6Part no. AUDIOGRAM6EAN 086792884592
16 specifications
- Weight770 g
- Channels quantity4 channels
- Microphone inYes
- Minimum RAM128 MB
- Width170 mm
Overview
- Weight
- 770 g
- Channels quantity
- 4 channels
- Microphone in
- Yes
- Minimum RAM
- 128 MB
- Width
- 170 mm
- Brand
- Yamaha
- Category
- Audio Mixer
- Model
- AUDIOGRAM 6
- Part number
- AUDIOGRAM6
- EAN / UPC
- 086792884592, 4957812397322
- Also known as
- Yamaha AUDIOGRAM 6 4 channels
Specifications
16 specifications in 6 groups
Audio
| Specification | Value |
|---|---|
| Channels quantity | 4 channels |
| Sample rate | 44.1 kHz |
| Digital sound processing | 16 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| Microphone in | Yes |
| Headphone connectivity | 6.3 mm |
| Line inputs (RCA) | 1 |
Technical details
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| Minimum RAM | 128 MB |
| Minimum processor speed | 750 MHz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 192 mm |
| Height | 59 mm |
| Weight | 770 g |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | CUBASE AI |
| Cables included | USB |
