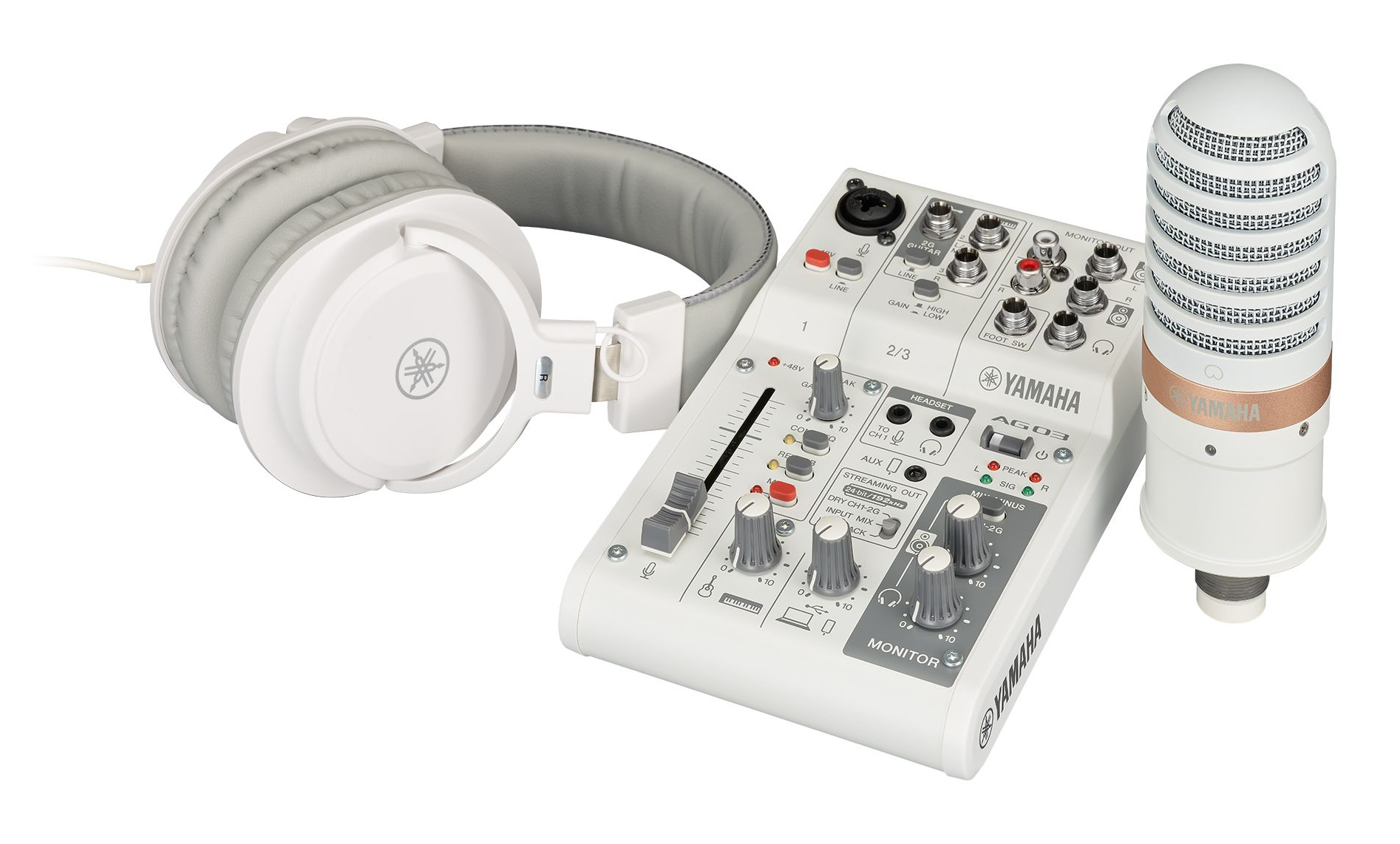

AG03MK2 LSPK
Model AG03MK2 LSPKPart no. AG03MK2WLSPKEAN 4957812677271
40 specifications
- Weight800 g
- ColourWhite
- Channels quantity3 channels
- Built-in displayNo
- EqualizerYes
- Power consumption (typical)4.5 W
Overview
- Weight
- 800 g
- Colour
- White
- Channels quantity
- 3 channels
- Built-in display
- No
- Equalizer
- Yes
- Power consumption (typical)
- 4.5 W
- Brand
- Yamaha
- Category
- Audio Mixer
- Model
- AG03MK2 LSPK
- Part number
- AG03MK2WLSPK
- EAN / UPC
- 4957812677271
- Also known as
- Yamaha AG03MK2 LSPK 3 channels White
Specifications
40 specifications in 10 groups
Audio
| Specification | Value |
|---|---|
| Channels quantity | 3 channels |
| Supported sample rates | 192 kHz |
| Digital sound processing | 24 bit |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| LED indicators | Yes |
Equalizer
| Specification | Value |
|---|---|
| Equalizer | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AUX in | Yes |
| Microphone in | Yes |
| Number of microphone inputs | 2 |
| Footswitch jack | Yes |
| Headphone connectivity | 3.5 mm |
| Line inputs (RCA) | 3 |
| Master (L, R) out | 1 |
| Monitor out | 2 |
| Phono inputs (RCA) | 2 |
| USB 2.0 ports quantity | 1 |
Technical details
| Specification | Value |
|---|---|
| DJ mixer | No |
| Rack mounting | Yes |
| Rack capacity | 2U |
| Headphone out | Yes |
| Product colour | White |
| Sound effects | Reverberation |
| USB connector type | USB Type-C |
| USB port | Yes |
| USB powered | Yes |
| Video capability | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4.5 W |
| Phantom power | 48 V |
| Power consumption | 900 mA |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 126 mm |
| Depth | 201 mm |
| Height | 63 mm |
| Weight | 800 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Microphone included | Yes |
| Cables included | USB |
| Quick start guide | Yes |
