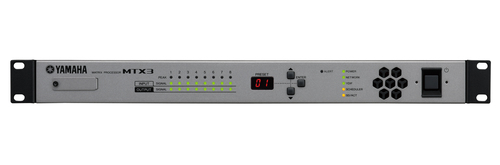

MTX3 audio mixer 21 channels 20
20000 Hz Grey
Model MTX3EAN 086792965611
27 specifications
- Weight4.8 kg
- ColourGrey
- Channels quantity21 channels
- Input impedance10000 Ω
- Output impedance75 Ω
- Number of Euroblock input connectors4
Overview
- Weight
- 4.8 kg
- Colour
- Grey
- Channels quantity
- 21 channels
- Input impedance
- 10000 Ω
- Output impedance
- 75 Ω
- Number of Euroblock input connectors
- 4
- Brand
- Yamaha
- Category
- Audio Mixer
- Model
- MTX3
- Part number
- MTX3
- EAN / UPC
- 086792965611, 4957812512077, 4957812512084
- Also known as
- Yamaha MTX3 audio mixer 21 channels 20 - 20000 Hz Grey
Specifications
27 specifications in 8 groups
Audio
| Specification | Value |
|---|---|
| Channels quantity | 21 channels |
| Supported sample rates | 44.1,48 kHz |
| Sample rate | 48 kHz |
| Frequency range | 20 - 20000 Hz |
| Signal delay (@48kHz) | 2.5 ms |
| Crosstalk (1kHz) | -100 dB |
Inputs
| Specification | Value |
|---|---|
| Input impedance | 10000 Ω |
| Nominal input level | -62 dBu |
Outputs
| Specification | Value |
|---|---|
| Output impedance | 75 Ω |
| Total Harmonic Distortion (THD) | 0.05% |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of Euroblock input connectors | 4 |
| Number of Euroblock output connectors | 4 |
Technical details
| Specification | Value |
|---|---|
| DJ mixer | No |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Grey |
| Video capability | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 50 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Phantom power | 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 362 mm |
| Height | 44 mm |
| Weight | 4.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Cables included | AC |
