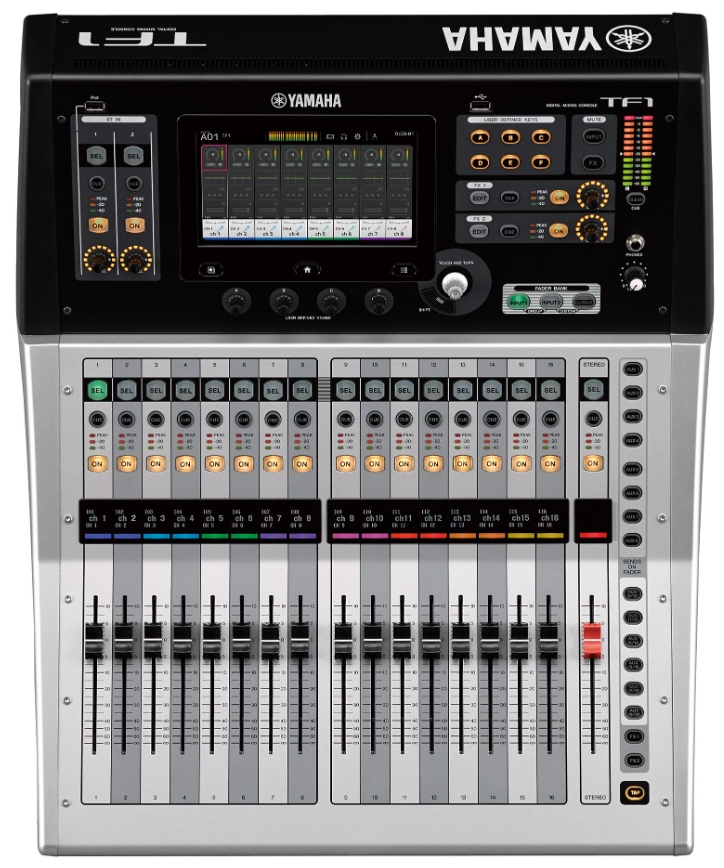

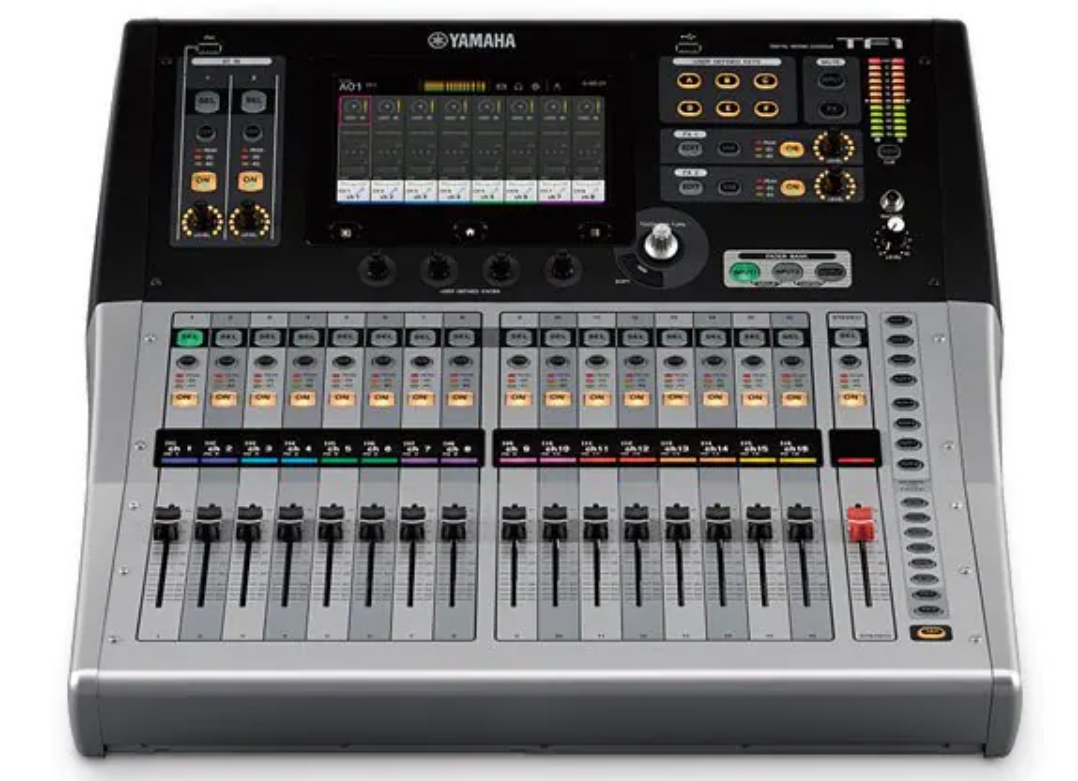

TF1 audio mixer 40 channels 20
20000 Hz Black, Silver
Model TF1
43 specifications
- Weight13.5 kg
- ColourBlack, Silver
- Channels quantity40 channels
- Line-in maximum input30 dBV
- Balanced line output level12.3 V
- Built-in displayYes
Overview
- Weight
- 13.5 kg
- Colour
- Black, Silver
- Channels quantity
- 40 channels
- Line-in maximum input
- 30 dBV
- Balanced line output level
- 12.3 V
- Built-in display
- Yes
- Brand
- Yamaha
- Category
- Audio Mixer
- Model
- TF1
- Part number
- TF1
- Also known as
- Yamaha TF1 audio mixer 40 channels 20 - 20000 Hz Black, Silver
Specifications
43 specifications in 10 groups
Audio
| Specification | Value |
|---|---|
| Channels quantity | 40 channels |
| Supported sample rates | 48 kHz |
| Sample rate | 48 kHz |
| Frequency range | 20 - 20000 Hz |
| Signal delay (@48kHz) | 2.6 ms |
| Crosstalk (1kHz) | -100 dB |
| Digital sound processing | 10 bit |
Inputs
| Specification | Value |
|---|---|
| Line-in maximum input | 30 dBV |
| Input impedance | 600 Ω |
| Maximum input level | 24.5 V |
| Microphone input impedance | 600 Ω |
| Nominal input level | 10 dBu |
Outputs
| Specification | Value |
|---|---|
| Balanced line output level | 12.3 V |
| Output impedance | 600 Ω |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Backlight display | Yes |
| Touchscreen | Yes |
Equalizer
| Specification | Value |
|---|---|
| Equalizer | Yes |

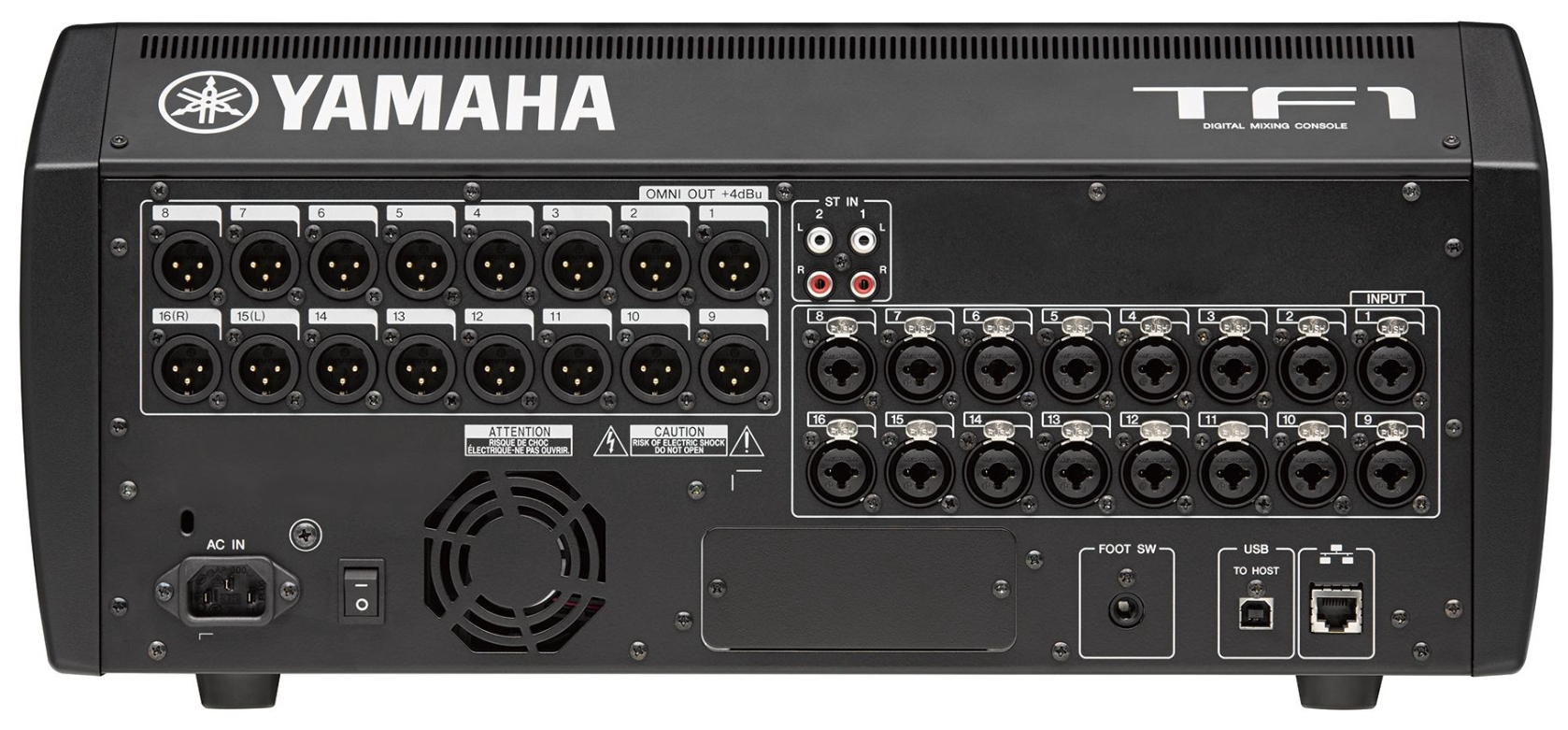

Ports & interfaces
| Specification | Value |
|---|---|
| Microphone in | Yes |
| Booth out (RCA) | 2 |
| Footswitch jack | Yes |
| USB 2.0 ports quantity | 1 |
| XLR in | Yes |
| XLR out | 16 |
Technical details
| Specification | Value |
|---|---|
| DJ mixer | No |
| Rack mounting | Yes |
| On/off switch | Yes |
| Audio input | 16 mic/line (XLR/TRS combo) |
| Product colour | Black, Silver |
| USB connector type | USB Type-B |
| USB port | Yes |
| Video capability | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Phantom power | 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 510 mm |
| Depth | 599 mm |
| Height | 225 mm |
| Weight | 13.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Power cord included | Yes |
| Quick start guide | Yes |
