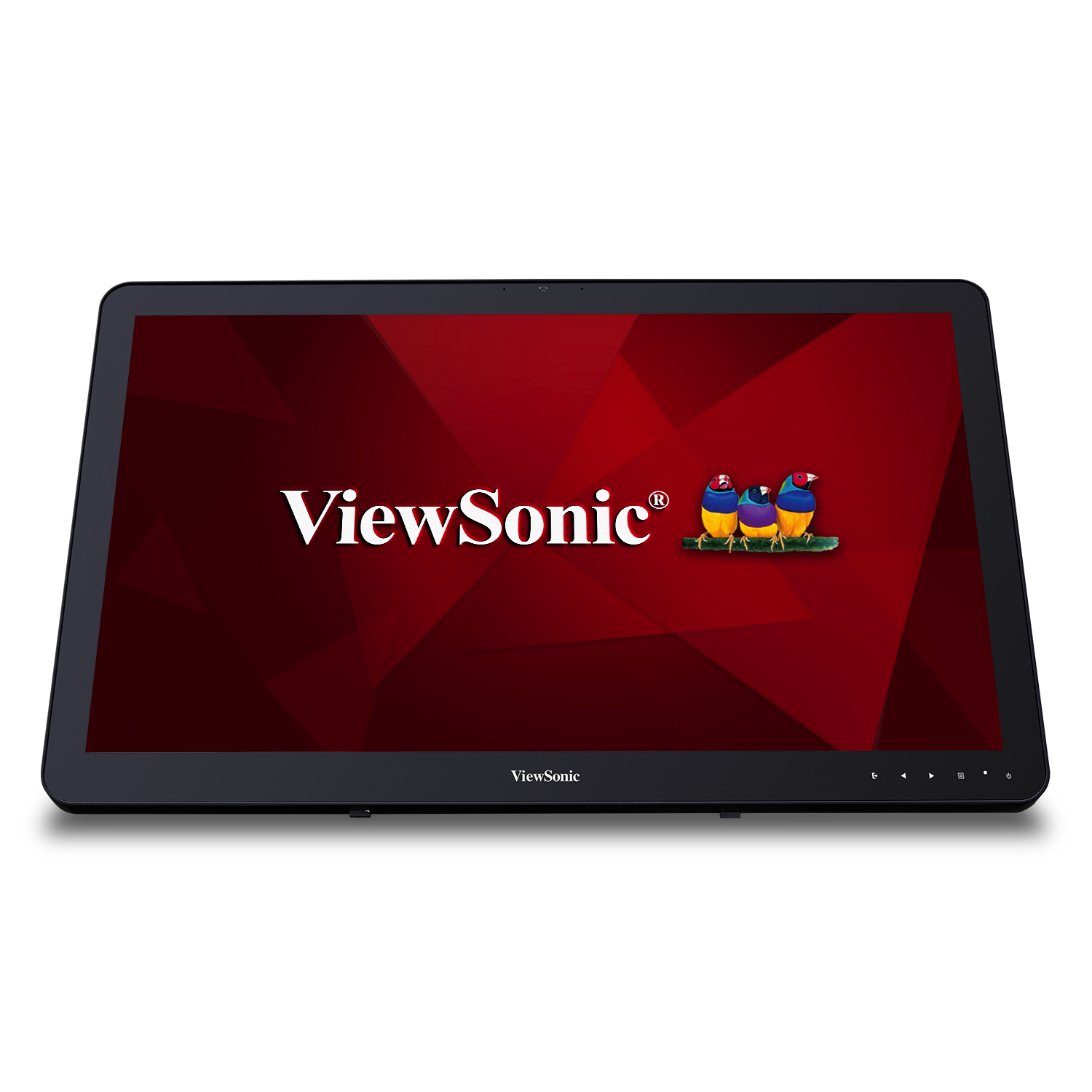

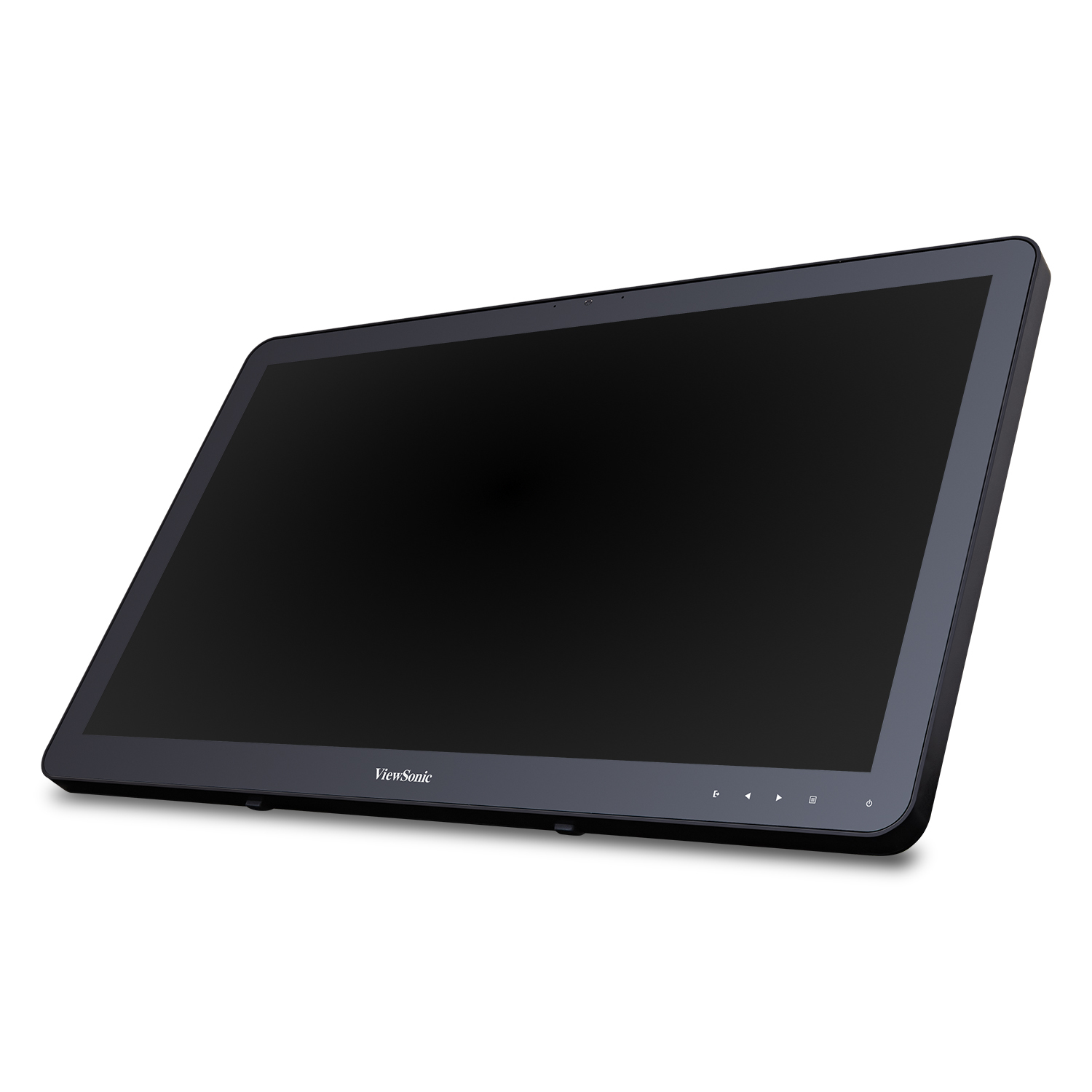

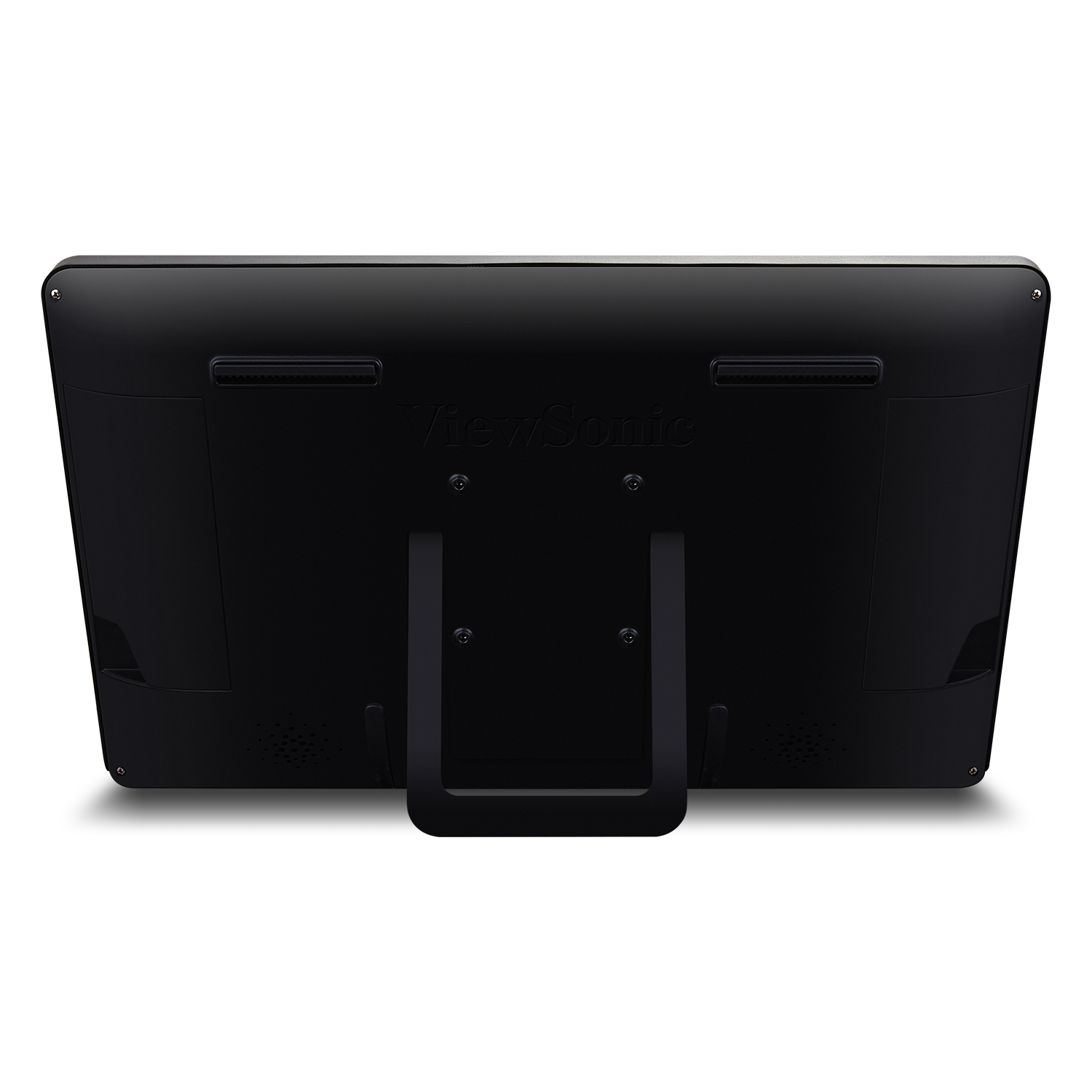

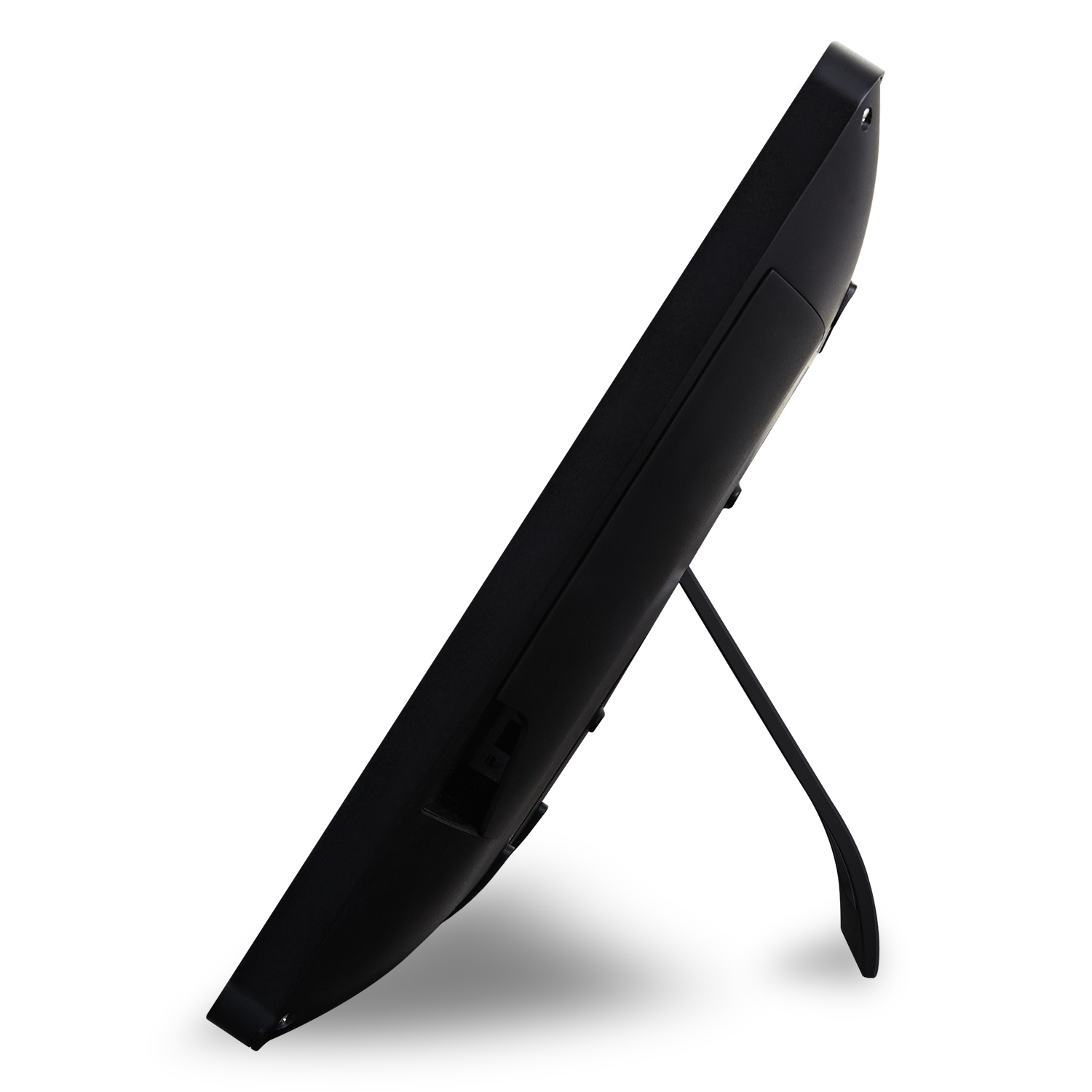

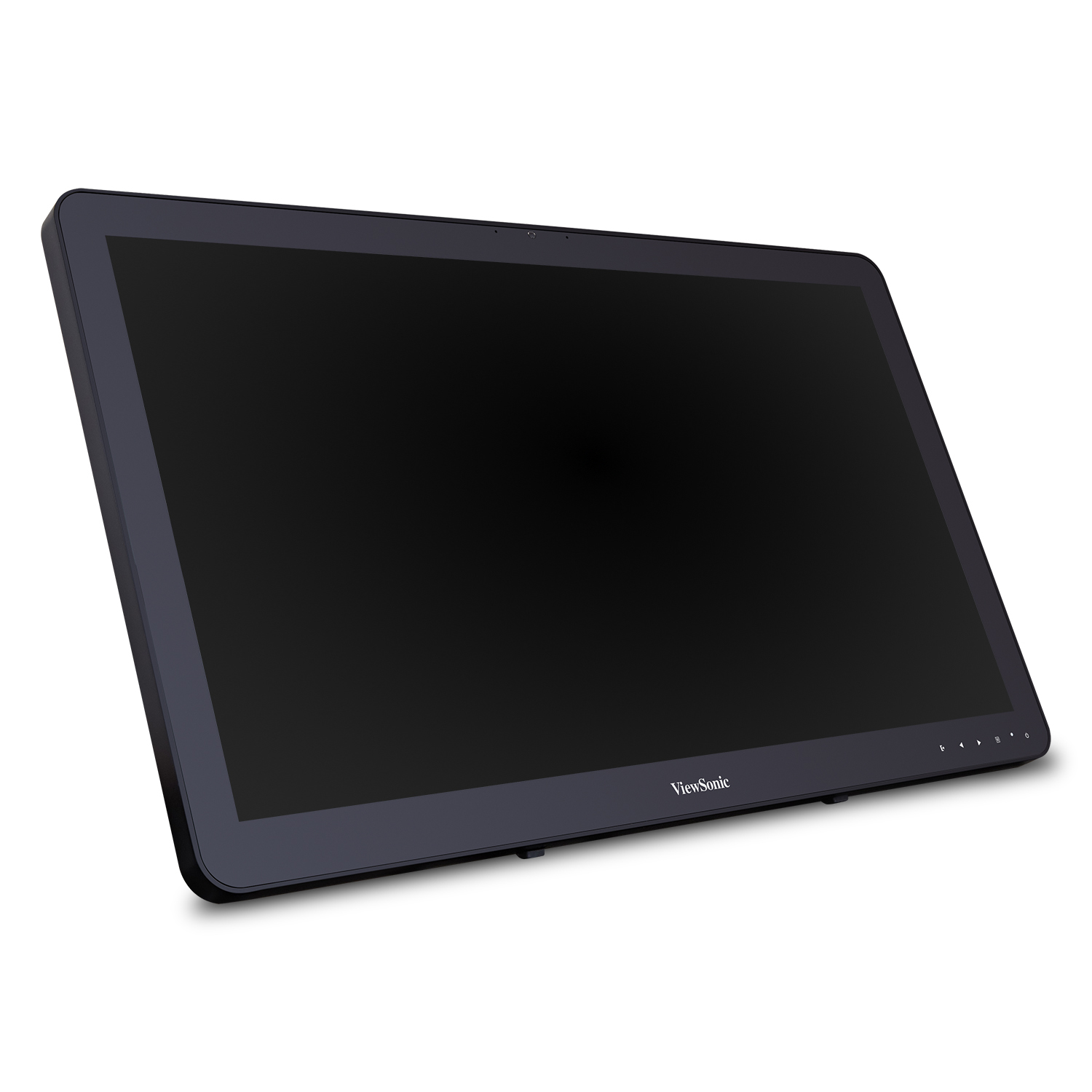

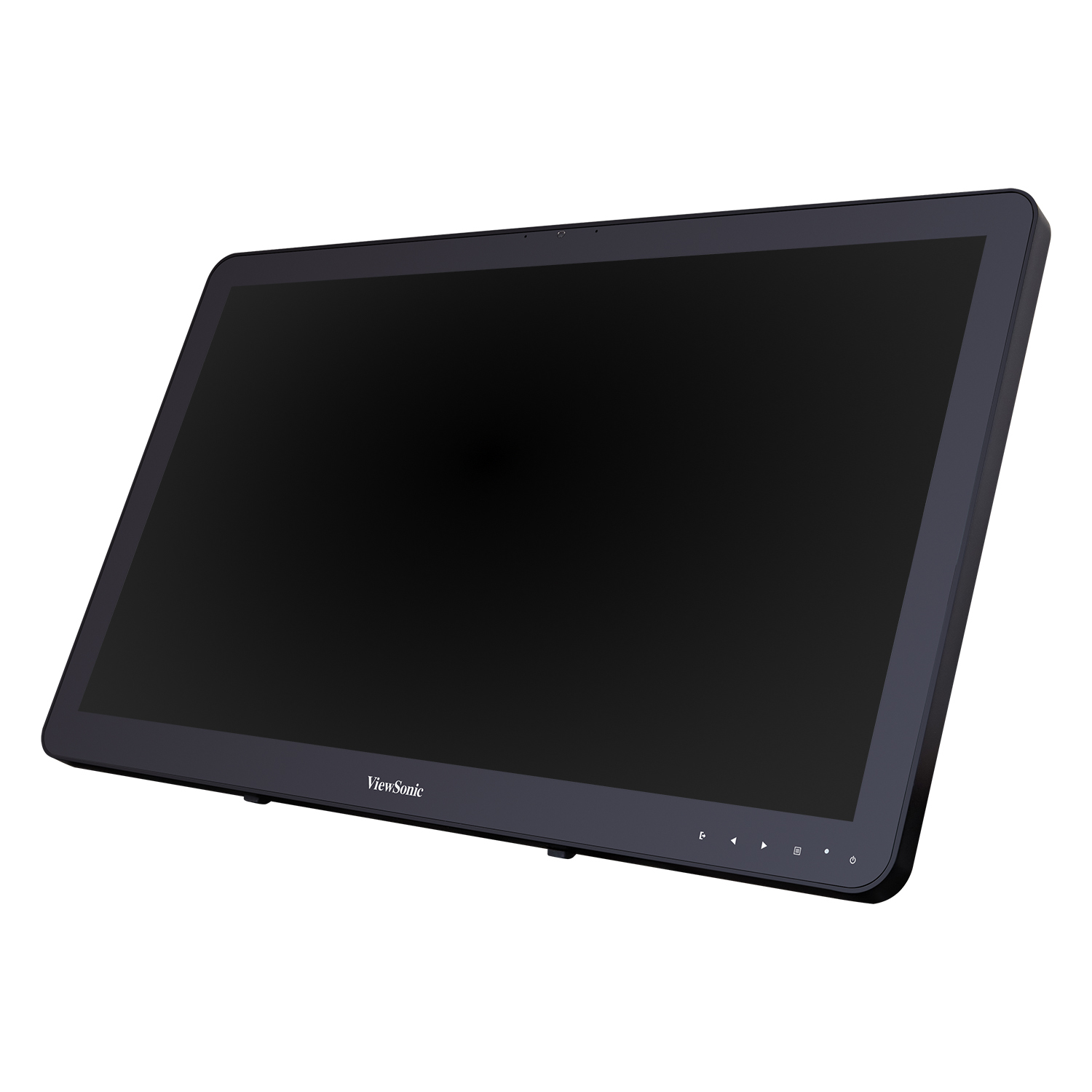

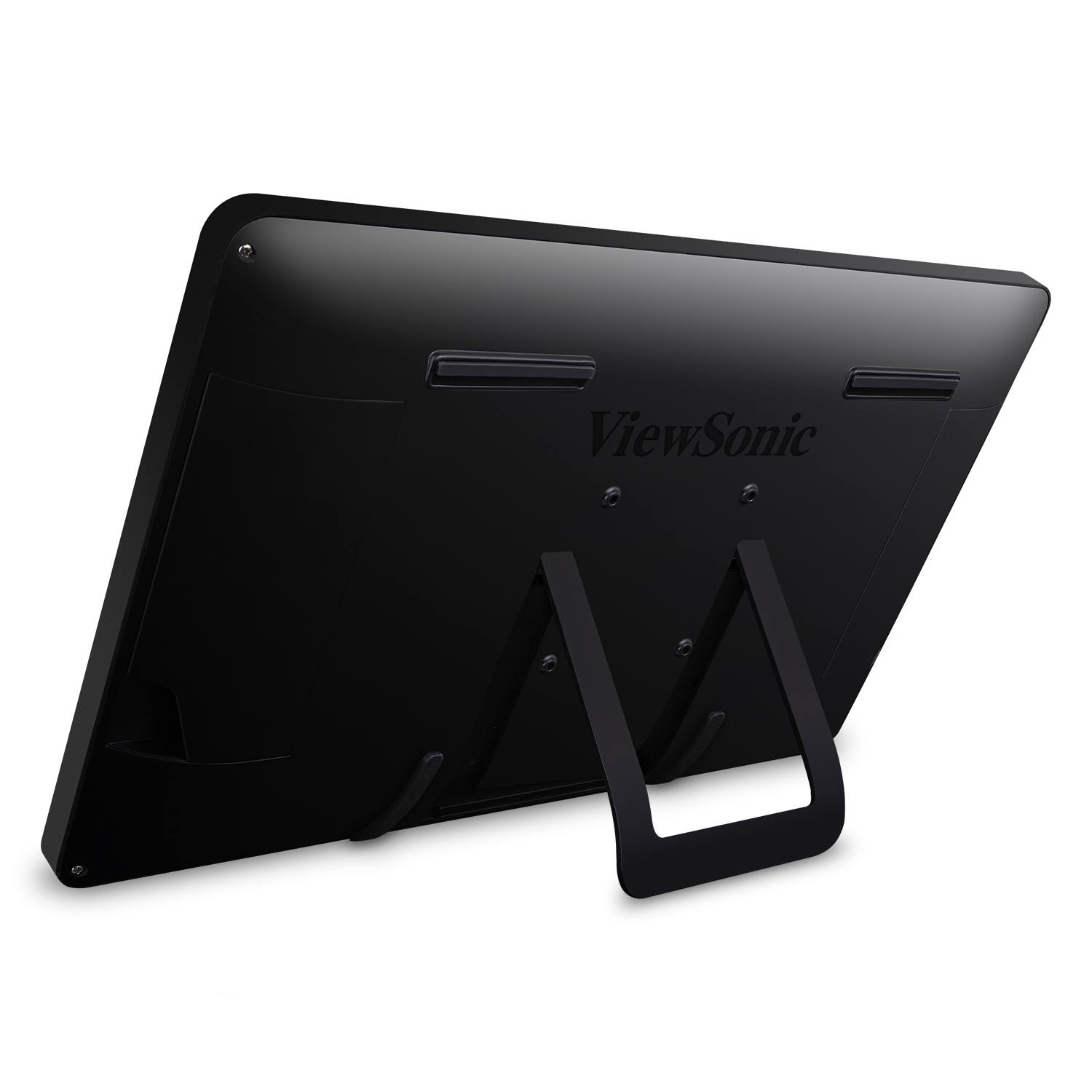

VSD242 Rockchip RK3288
61 cm (24") 1920 x 1080 pixels Touchscreen All-in-One PC 2 GB DDR3-SDRAM 16 GB Flash Android 5.1 Wi-Fi 4 (802.11n) Black
Model VSD242Part no. VSD242-BKA-US0EAN 766907826418
70 specifications
- Display61 cm (24")
- Resolution1920 x 1080 pixels
- ProcessorRockchip
- Memory2 GB
- Storage16 GB
- GraphicsNot available
Overview
- Display
- 61 cm (24")
- Resolution
- 1920 x 1080 pixels
- Processor
- Rockchip
- Memory
- 2 GB
- Storage
- 16 GB
- Graphics
- Not available
- Brand
- Viewsonic
- Category
- All-in-One PCs/Workstations
- Model
- VSD242
- Part number
- VSD242-BKA-US0
- EAN / UPC
- 766907826418, 766907826616
- Also known as
- Viewsonic VSD242 Rockchip RK3288 61 cm (24") 1920 x 1080 pixels Touchscreen All-in-One PC 2 GB DDR3-SDRAM 16 GB Flash Android 5.1 Wi-Fi 4 (802.11n) Black
Specifications
70 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61 cm (24") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| Screen shape | Flat |
| Tilt angle range | 0 - 90° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Rockchip |
| Processor family | Rockchip |
| Processor model | RK3288 |
| Processor cores | 4 |
| Processor frequency | 1.8 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 16 GB |
| Storage media | Flash |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Not available |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 5 W |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Total megapixels | 5 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

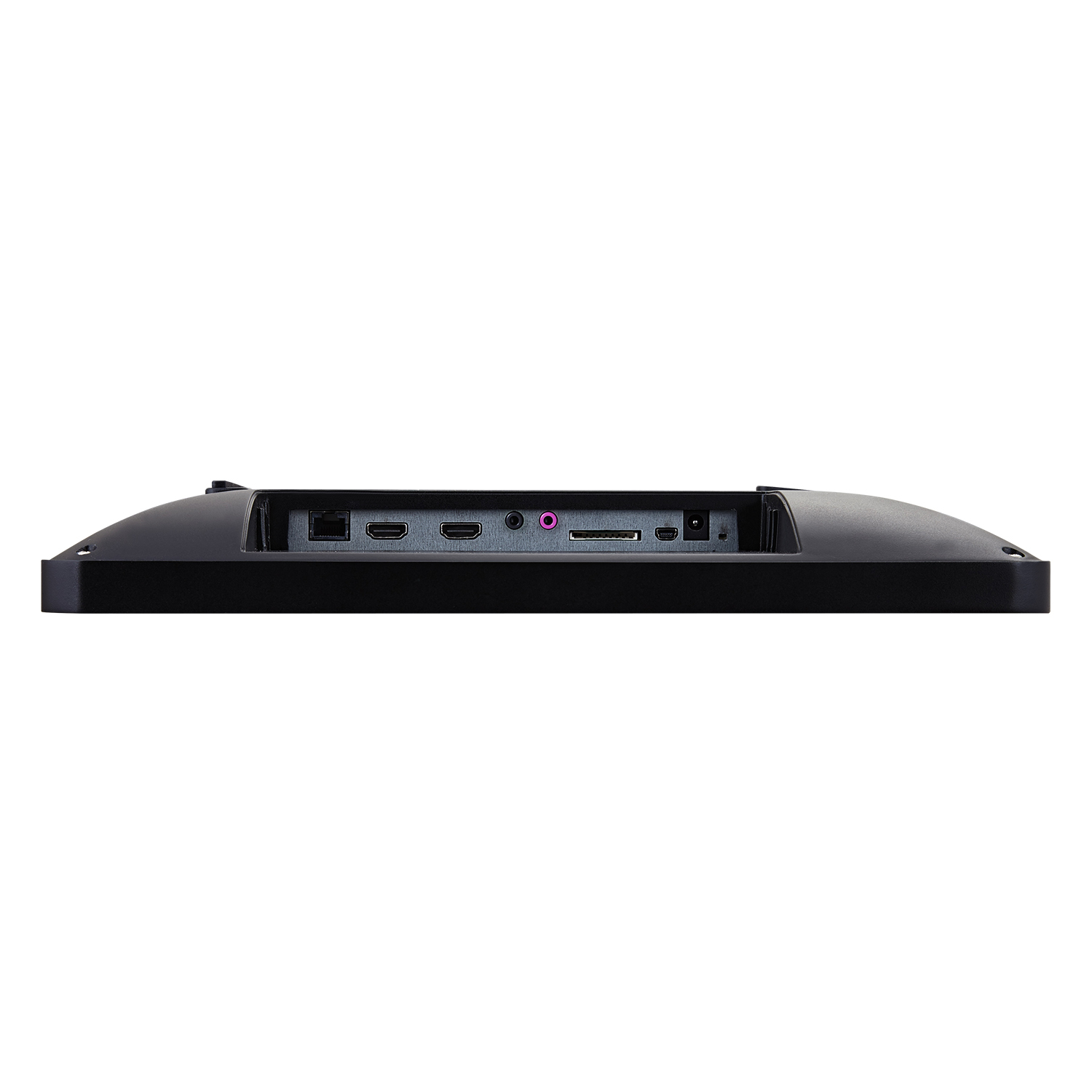

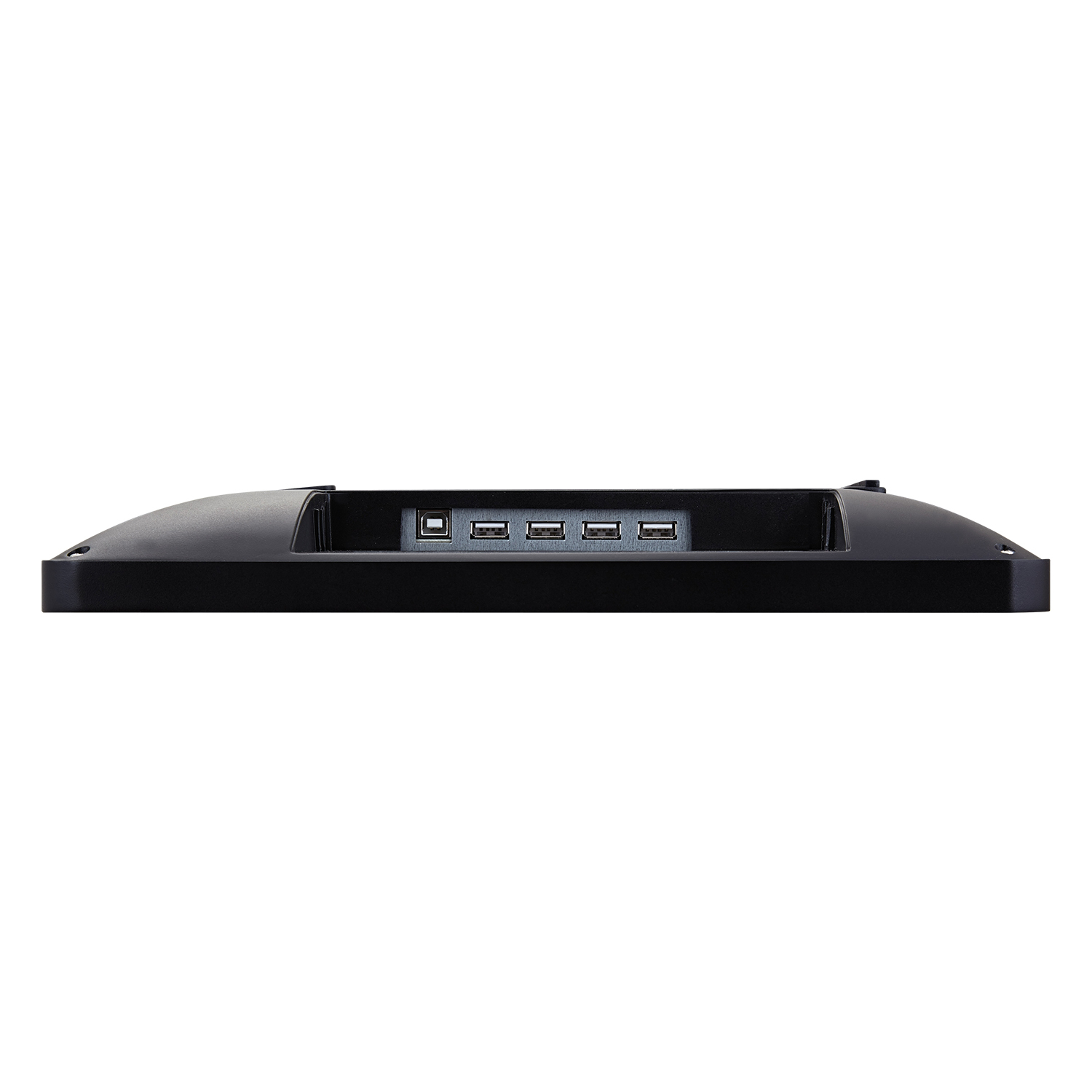

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Audio output | Yes |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android 5.1 |
Power
| Specification | Value |
|---|---|
| AC adapter power | 48 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 572.9 mm |
| Depth (with stand) | 47 mm |
| Height (with stand) | 351.8 mm |
| Weight (with stand) | 5.6 kg |
| Package width | 628 mm |
| Package depth | 125 mm |
| Package height | 395 mm |
| Package weight | 7.2 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, CB, cTUVus, FCC-B (including ICES003, CA IC, NOM, China CCC, CEL Gost-R, FAC, WEEE, RoHS, REACH, ErP, Argentina CNC, AR-S |
Other features
| Specification | Value |
|---|---|
| AC adapter output current | 4 A |
| Detachable display | No |
| eMMC capacity | 16 GB |
