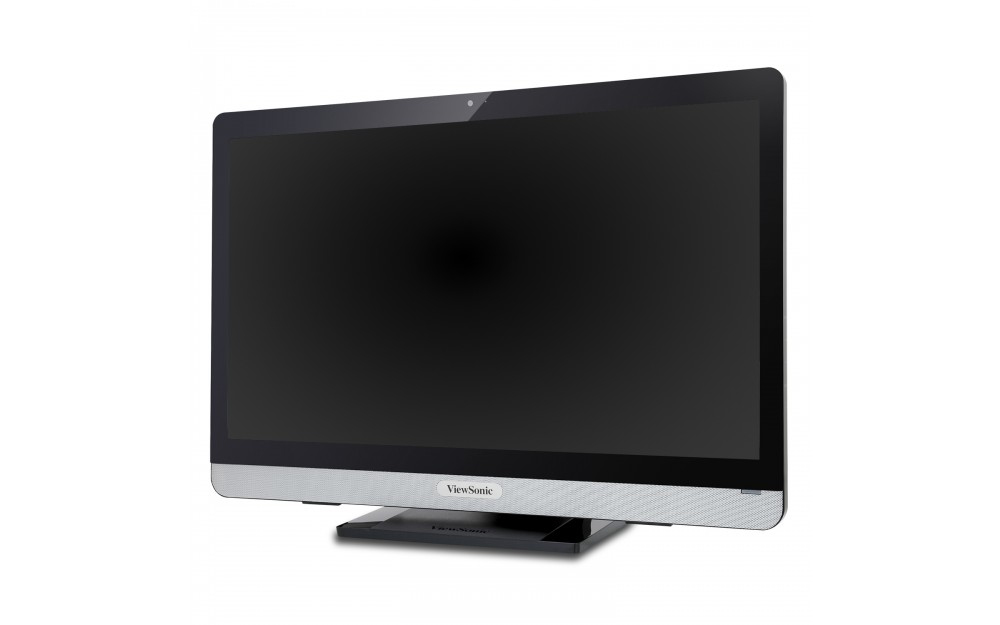

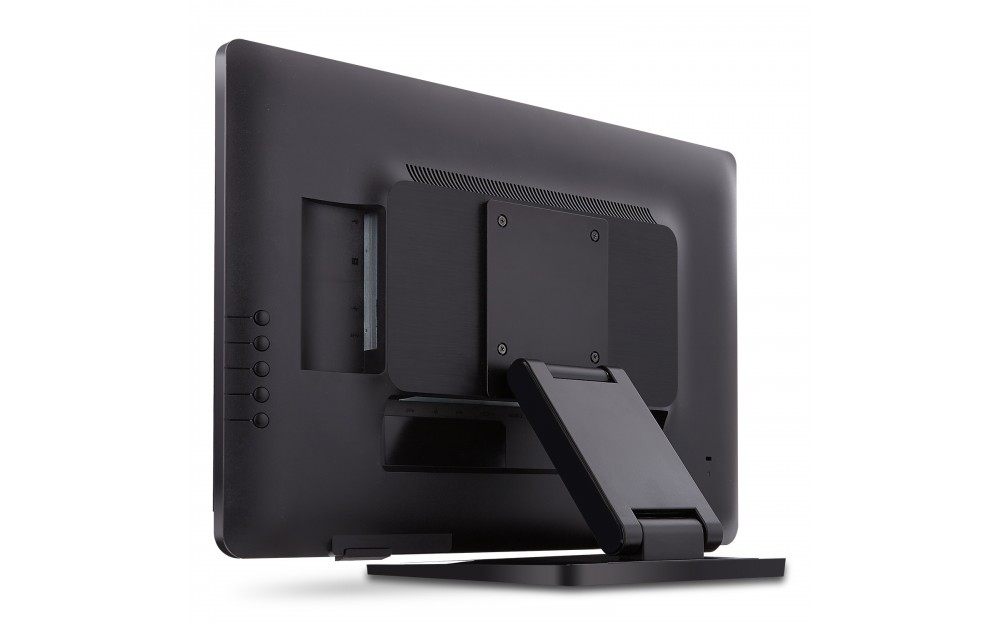

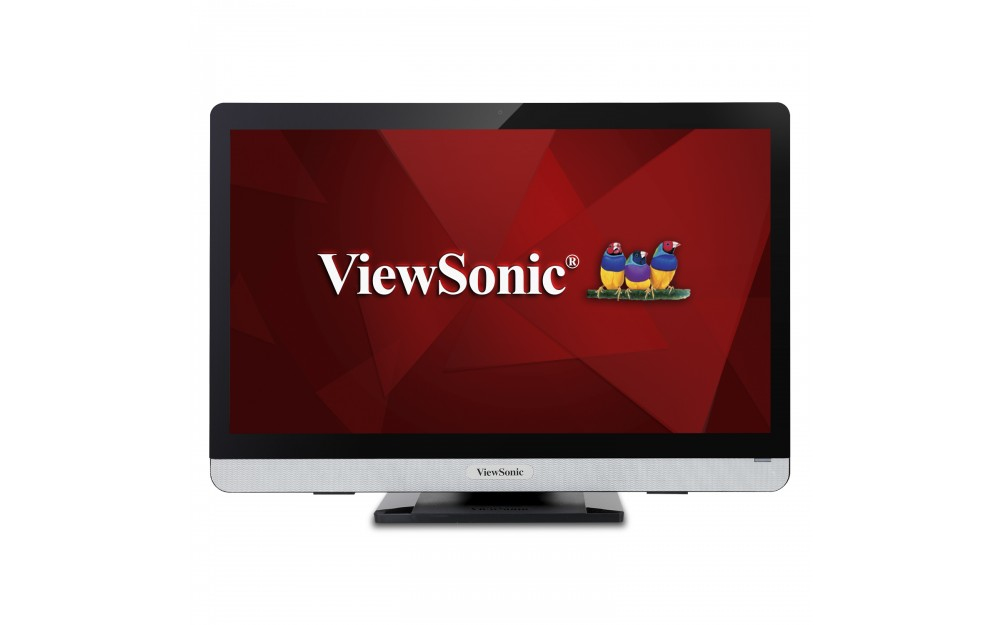

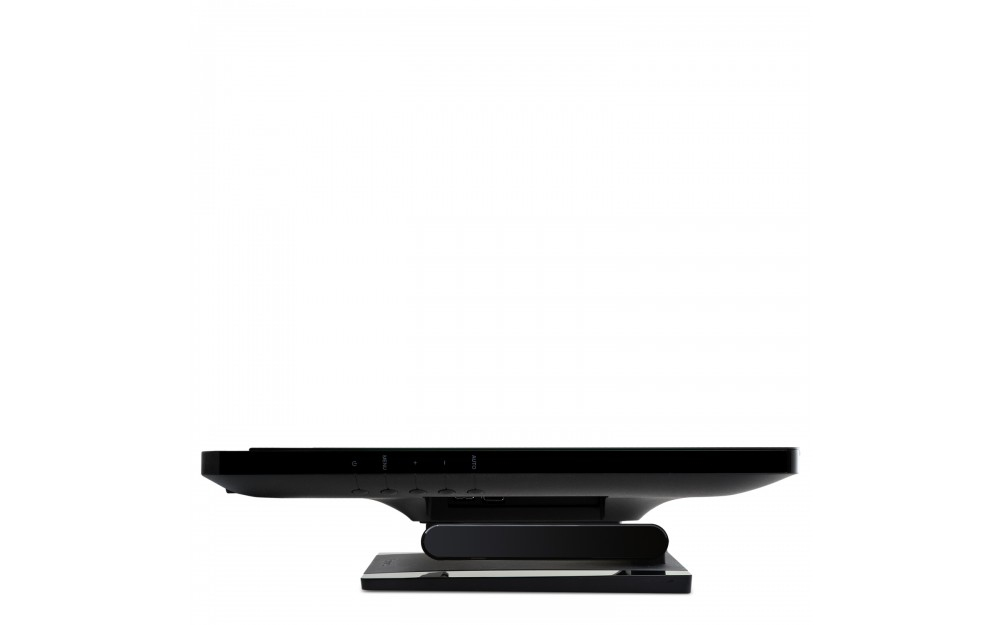

VSD231 All-in-One PC/workstation NVIDIA Tegra Tegra 3
58.4 cm (23") 1920 x 1080 pixels Touchscreen 2 GB DDR3-SDRAM 8 GB Android 4.3 Black
Model VSD231
76 specifications
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ProcessorNVIDIA Tegra
- Memory2 GB
- Storage8 GB
- GraphicsNot available
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Processor
- NVIDIA Tegra
- Memory
- 2 GB
- Storage
- 8 GB
- Graphics
- Not available
- Brand
- Viewsonic
- Category
- All-in-One PCs/Workstations
- Model
- VSD231
- Part number
- VSD231
- Also known as
- Viewsonic VSD231 All-in-One PC/workstation NVIDIA Tegra Tegra 3 58.4 cm (23") 1920 x 1080 pixels Touchscreen 2 GB DDR3-SDRAM 8 GB Android 4.3 Black
Specifications
76 specifications in 18 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| Response time | 5 ms |
| Screen shape | Flat |

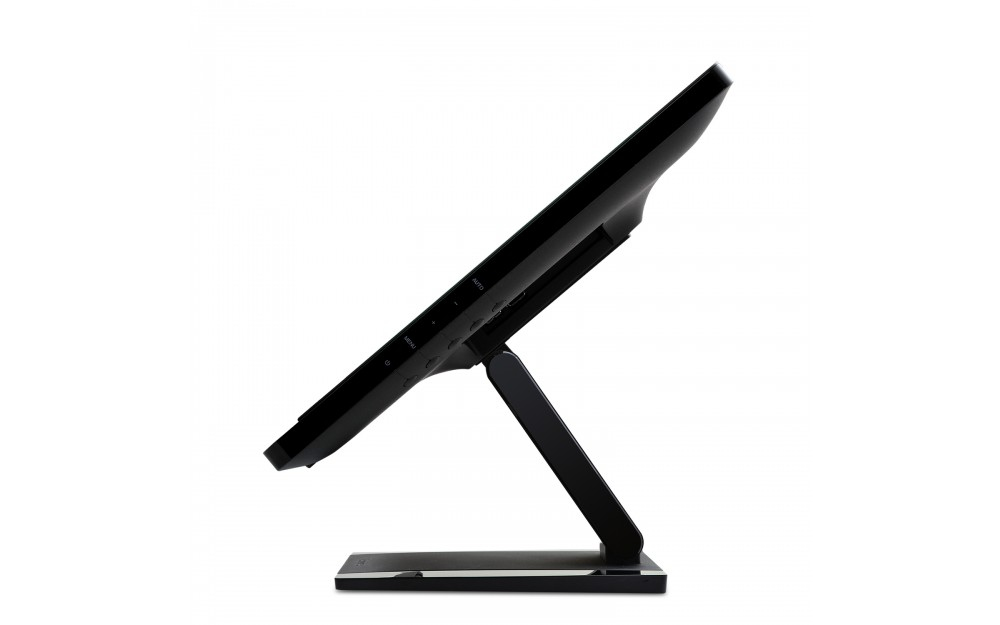

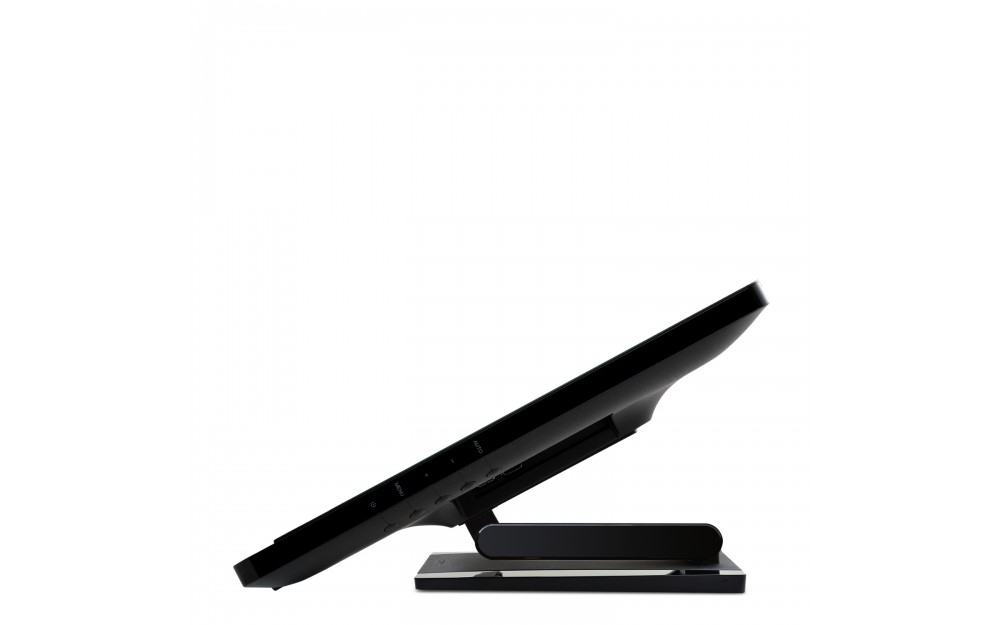

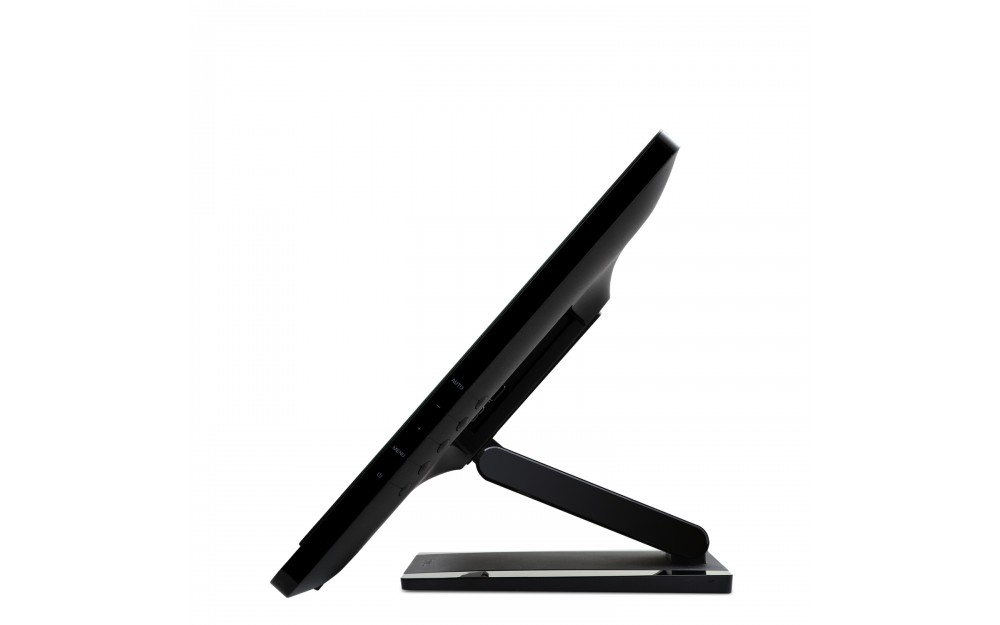

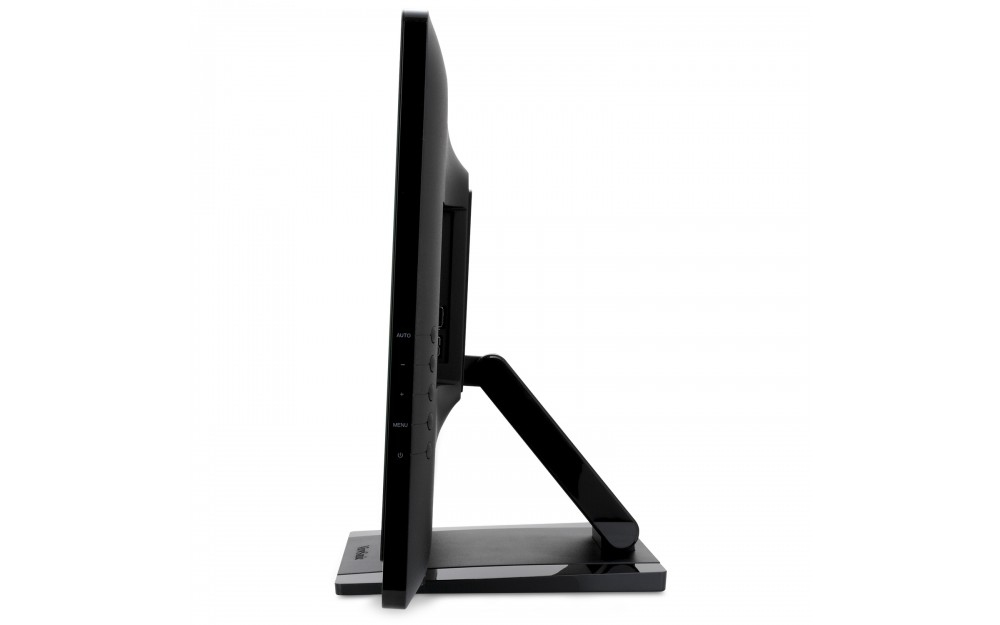

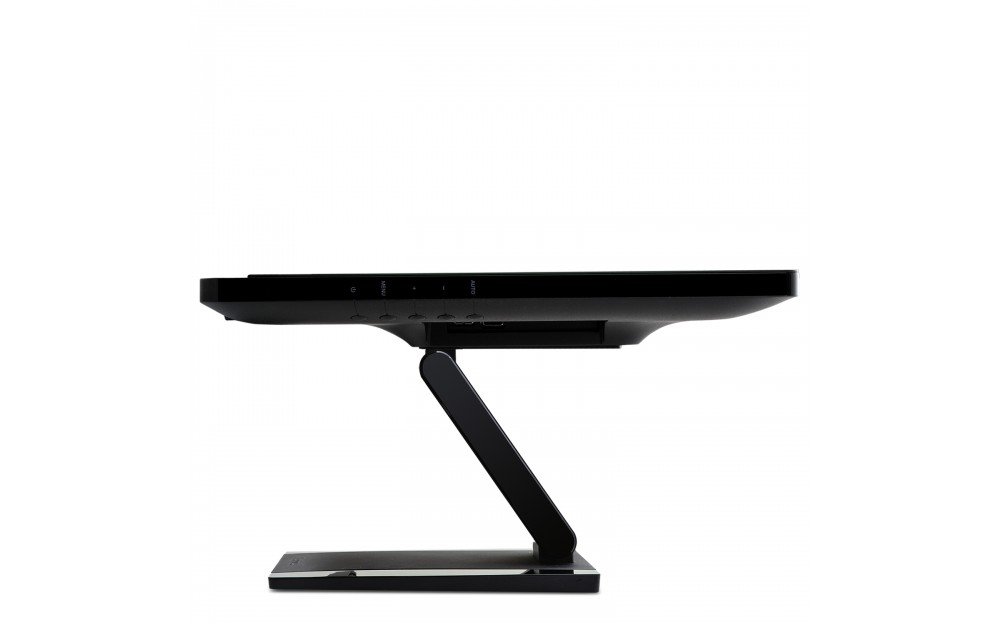

| Tilt angle range | 0 - 90° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | NVIDIA |
| Processor family | NVIDIA Tegra |
| Processor model | Tegra 3 |
| Processor cores | 4 |
| Processor frequency | 1.6 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 8 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Not available |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Total megapixels | 2 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android 4.3 |
Power
| Specification | Value |
|---|---|
| AC adapter power | 48 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 547.1 mm |
| Depth (with stand) | 192.4 mm |
| Height (with stand) | 392.6 mm |
| Weight (with stand) | 7.2 kg |
| Width (without stand) | 547.1 mm |
| Depth (without stand) | 48.3 mm |
| Height (without stand) | 370.8 mm |
| Package width | 620 mm |
| Package depth | 170 mm |
| Package height | 455 mm |
| Package weight | 8.4 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, CB, UL/CUL, FCC-B (including ICES003, FCC-C,IC RSS-210, China CCC, CEL Gost-R, FAC, WEEE, REACH, SVHC, ErP, Argentina CNC |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| AC adapter included | Yes |
| Cables included | HDMI, VGA |
| Power cord included | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Autonomy mode | No |
| Detachable display | No |
