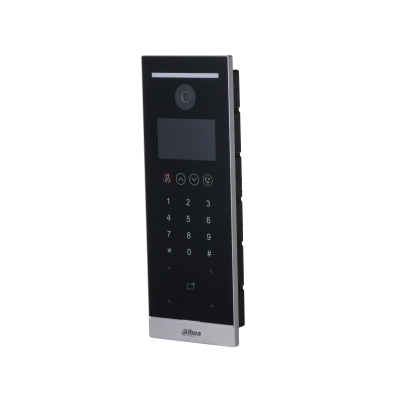

VTO6531H Face recognition terminal Silver
Model VTO6531HPart no. DHI-VTO6531H+VTM130EAN 6939554988165
51 specifications
- Display10.9 cm (4.3")
- Memory1 GB
- TypeFace recognition terminal
- OSEmbedded Linux System
- Weight1 kg
- ColourSilver
Overview
- Display
- 10.9 cm (4.3")
- Memory
- 1 GB
- Type
- Face recognition terminal
- OS
- Embedded Linux System
- Weight
- 1 kg
- Colour
- Silver
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- VTO6531H
- Part numbers
- DHI-VTO6531H+VTM130, VTO6531H
- EAN / UPC
- 6939554988165
- Also known as
- Dahua Technology VTO6531H Face recognition terminal Silver
Specifications
51 specifications in 10 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| Authentication type | Password, Access chip/card, Face recognition |
| Access chip/card reader | Yes |
| Access chip/card reader type | Contactless |
| Access code reader | Yes |
| Cards capacity | 10000 cards |
| Face capacity | 10000 |
| Face recognition accuracy | 99.5% |
| Face recognition distance | 0.3 - 2 m |
| Face recognition duration | 0.2 s |
| Fingerprint reader | No |
| Noise reduction | Yes |
| Tamper | Yes |
| Product colour | Silver |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| International Protection (IP) code | IP65 |
| Certification | CE/FCC |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Display type | IPS |
| Maximum resolution | 800 x 480 pixels |
| Screen shape | Flat |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Total megapixels | 2 MP |
| Infrared (IR) light | Yes |
| Maximum aperture number | 1.6 |
| Wide Dynamic Range (WDR) | Yes |
Performance
| Specification | Value |
|---|---|
| Operating system installed | Embedded Linux System |
| Built-in processor | Yes |
| Internal memory | 1 GB |
| Flash memory | 4 GB |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Supported network protocols | SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP |
| Alarm input/output | Yes |
| RS-485 ports | 1 |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 18 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 145.5 mm |
| Height | 43.5 mm |
| Weight | 1 kg |
| Width | 388.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.29 kg |
Packaging content
| Specification | Value |
|---|---|

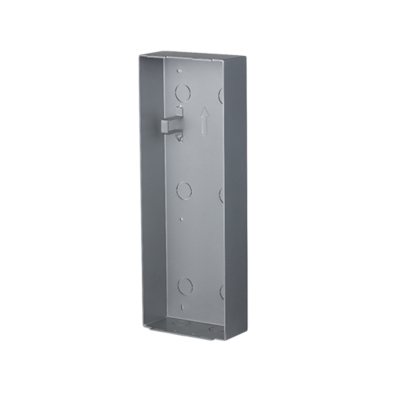

| Mounting bracket(s) included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 60 °C |
