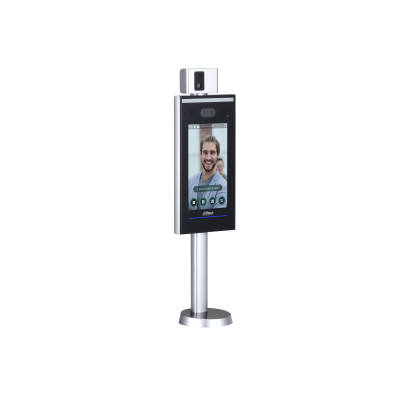

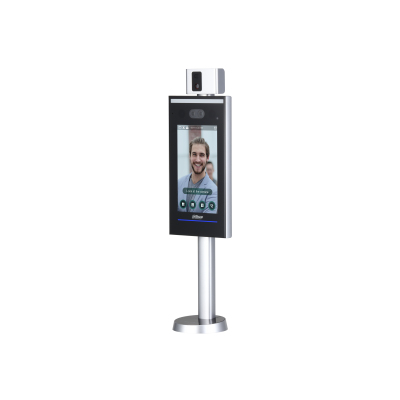

DHI-ASI7223X-A-V1 access control reader Face recognition terminal Stainless steel
Model DHI-ASI7223X-A-V1
69 specifications
- Display17.8 cm (7")
- TypeFace recognition terminal
- Weight3.1 kg
- ColourStainless steel
- Built-in displayYes
- Ethernet LAN (RJ-45) ports2
Overview
- Display
- 17.8 cm (7")
- Type
- Face recognition terminal
- Weight
- 3.1 kg
- Colour
- Stainless steel
- Built-in display
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- DHI-ASI7223X-A-V1
- Part number
- DHI-ASI7223X-A-V1
- Also known as
- Dahua Technology DHI-ASI7223X-A-V1 access control reader Face recognition terminal Stainless steel
Specifications
69 specifications in 10 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| Authentication type | Face recognition, Password |
| LED indicators | Status |
| Wiegand interface | Yes |
| Tamper protection | Yes |
| Access chip/card reader | No |
| Access code reader | Yes |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Anti-passback | Yes |
| Duress alarm | Yes |
| Exit button | Yes |
| Face capacity | 100000 |
| Face recognition accuracy | 99.5% |
| Face recognition distance | 0.3 - 2 m |
| Face recognition duration | 0.2 s |
| Fingerprint reader | No |
| Holiday period | 128 h |
| Lock control | Yes |
| Open Supervised Device Protocol (OSDP) | Yes |
| Password capacity | 100000 |
| Real-time surveillance | Yes |
| Record capacity | 300000 |
| Remote verification | Yes |
| Software development kit (SDK) support | Yes |
| Temperature measurement accuracy | 0.5 °C |
| Temperature measurement distance | 30 - 180 cm |
| Temperature measurement height | 120 - 210 cm |
| Temperature measurement range | 30 - 45 °C |
| Unlock function | Yes |
| User capacity | 100000 user(s) |
| Voice prompts | Yes |
| Web-based management | Yes |
| Product colour | Stainless steel |
| Housing material | Aluminium, Polycarbonate (PC), Tempered glass |
| Certification | CE/FCC |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 17.8 cm (7") |
| Display type | LCD |
| Maximum resolution | 1024 x 600 pixels |
| Screen shape | Curved |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera type | Dual camera |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Total megapixels | 2 MP |
| Infrared (IR) light | Yes |
| Wide Dynamic Range (WDR) | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Supported network protocols | IPv4, RTSP, RTP, TCP, UDP, P2P, SIP |
| Alarm input/output | Yes |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 24 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 129 mm |
| Height | 99.7 mm |
| Weight | 3.1 kg |
| Width | 477 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 258 mm |
| Package height | 130 mm |
| Package width | 593 mm |
Packaging content
| Specification | Value |
|---|---|
| Power adapter included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
