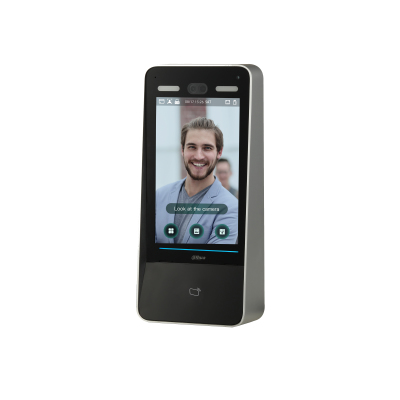

ASI8213Y-V3 Face recognition terminal Black
Model ASI8213Y-V3Part no. DHI-ASI8213Y-V3
64 specifications
- Display25.6 cm (10.1")
- TypeFace recognition terminal
- Weight4.32 kg
- ColourBlack
- Built-in displayYes
- Ethernet LAN (RJ-45) ports1
Overview
- Display
- 25.6 cm (10.1")
- Type
- Face recognition terminal
- Weight
- 4.32 kg
- Colour
- Black
- Built-in display
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- ASI8213Y-V3
- Part number
- DHI-ASI8213Y-V3
- Also known as
- Dahua Technology ASI8213Y-V3 Face recognition terminal Black
Specifications
64 specifications in 8 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| Authentication type | Access chip/card, Face recognition, Password |
| Vandal-proof | Yes |
| LED indicators | Status |
| Wiegand interface | Yes |
| Tamper protection | Yes |
| Access chip/card reader | Yes |
| Access chip/card reader type | Contactless |
| Alarm function | Yes |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Anti-passback | Yes |
| Cards capacity | 100000 cards |
| Contactless working distance | 1 cm |
| Door contact input | 1 |
| Duress alarm | Yes |
| Face capacity | 100000 |
| Face recognition accuracy | 99.5% |
| Face recognition distance | 0.3 - 2 m |
| Lock control | Yes |
| Open Supervised Device Protocol (OSDP) | Yes |
| Password capacity | 100000 |
| Real-time surveillance | Yes |
| Remote verification | Yes |
| Software development kit (SDK) support | Yes |
| Tamper | Yes |
| Unlock function | Yes |
| User capacity | 100000 user(s) |
| Voice prompts | Yes |
| Waterproof | Yes |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| International Protection (IP) code | IP65 |
| Certification | CE, FCC |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 25.6 cm (10.1") |
| Display type | TFT |
| Maximum resolution | 1280 x 800 pixels |
| Screen shape | Flat |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera type | Dual camera |
| Sensor type | CMOS |
| Total megapixels | 2 MP |
| Infrared (IR) light | Yes |
| Wide Dynamic Range (WDR) | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Built-in speaker(s) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | IPv4, RTSP, RTP, TCP, UDP, P2P |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 24 W |
| DC current (max) | 2 A |
| DC voltage range | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 77.2 mm |
| Height | 396.9 mm |
| Weight | 4.32 kg |
| Width | 185.6 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
