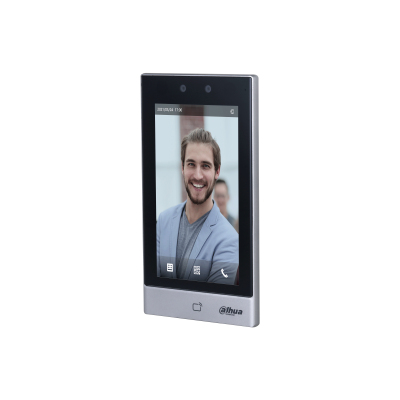

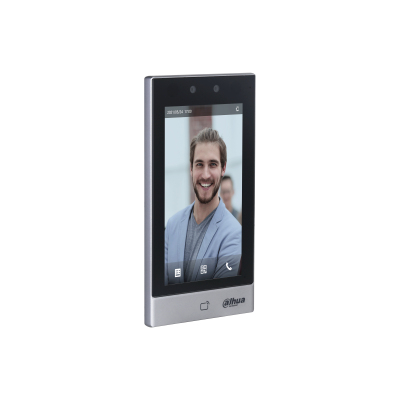

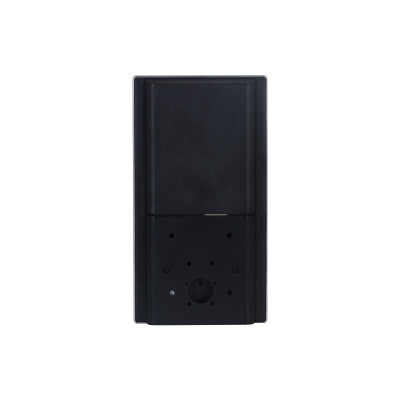

DHI-ASI7213S-W access control reader Face recognition terminal Black, Silver
Model DHI-ASI7213S-WEAN 6923169751429
65 specifications
- Display17.8 cm (7")
- TypeFace recognition terminal
- ColourBlack, Silver
- Built-in displayYes
- Input voltage12 V
- Depth24.2 mm
Overview
- Display
- 17.8 cm (7")
- Type
- Face recognition terminal
- Colour
- Black, Silver
- Built-in display
- Yes
- Input voltage
- 12 V
- Depth
- 24.2 mm
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- DHI-ASI7213S-W
- Part number
- DHI-ASI7213S-W
- EAN / UPC
- 6923169751429
- Also known as
- Dahua Technology DHI-ASI7213S-W access control reader Face recognition terminal Black, Silver
Specifications
65 specifications in 10 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| Authentication type | Access chip/card, Face recognition, Password |
| LED indicators | Status |
| Wiegand interface | Yes |
| Access chip/card reader | Yes |
| Active tampering alarm | Yes |
| Alarm function | Yes |
| Cards capacity | 100000 cards |
| Duress alarm | Yes |
| Exit button | Yes |
| Face capacity | 50000 |
| Face recognition accuracy | 99.9% |
| Face recognition distance | 0.3 - 2 m |
| Face recognition duration | 0.2 s |
| Fingerprint reader | No |
| Holiday period | 128 h |
| Interoperability | CGI;ONVIF |
| Lock control | Yes |
| Open Supervised Device Protocol (OSDP) | Yes |
| Password capacity | 50000 |
| Real-time surveillance | Yes |
| Record capacity | 300000 |
| Remote verification | Yes |
| Software development kit (SDK) support | Yes |
| Temperature alarm | Yes |
| Unlock function | Yes |
| User capacity | 50000 user(s) |
| Voice prompts | Yes |
| Web-based management | Yes |
| QR code | Yes |
| Product colour | Black, Silver |
| Housing material | Polycarbonate (PC), Tempered glass |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 17.8 cm (7") |
| Display type | LCD |
| Maximum resolution | 1024 x 600 pixels |
| Screen shape | Flat |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera type | Single camera |
| Sensor type | CMOS |
| Total megapixels | 2 MP |
| Wide Dynamic Range (WDR) | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | UDP; TCP; IPv4; RTSP; SIP; P2P; RTP |
| Alarm input/output | Yes |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 24 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 24.2 mm |
| Height | 218 mm |
| Width | 118 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 164 mm |
| Package height | 72 mm |
| Package weight | 670 g |
| Package width | 299 mm |
Packaging content
| Specification | Value |
|---|---|
| Power adapter included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 55 °C |
