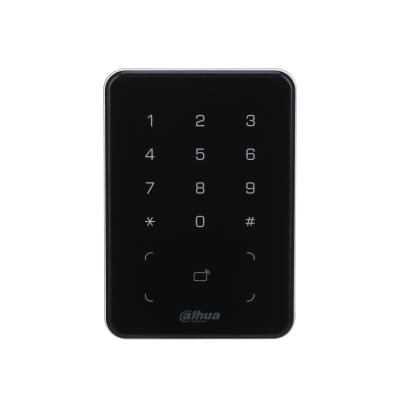

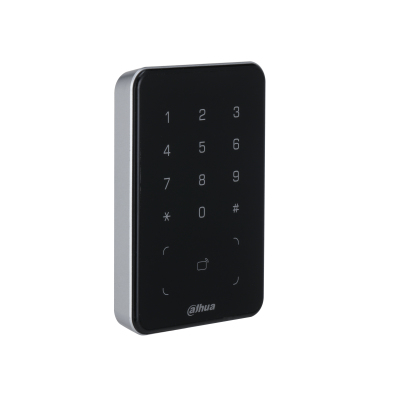

Dahua Technology DHI-ASR2101A-ME access control reader Basic access control reader Black

Dahua Technology

DHI-ASR2101A-ME access control reader Basic access control reader Black

Model DHI-ASR2101A-MEEAN 6939554942204

27 specifications

TypeBasic access control reader
ColourBlack
RS-485 ports1
DC current (max)0.5 A
Mounting bracket weight350 g
Operating relative humidity (H-H)5 - 95%

See all specifications

Overview

Type: Basic access control reader
Colour: Black
RS-485 ports: 1
DC current (max): 0.5 A
Mounting bracket weight: 350 g
Operating relative humidity (H-H): 5 - 95%

Brand: Dahua Technology
Category: Access Control Reader
Model: DHI-ASR2101A-ME
Part number: DHI-ASR2101A-ME
EAN / UPC: 6939554942204
Also known as: Dahua Technology DHI-ASR2101A-ME access control reader Basic access control reader Black

Specifications

27 specifications in 6 groups

Technical details

Specification	Value
Type	Basic access control reader
Authentication type	Access chip/card, Password
Buzzer	Yes
Wiegand interface	Yes
Tamper protection	Yes
Access chip/card reader	Yes
Access chip/card reader type	Contactless
Access code reader	Yes
Alarm function	Yes
RFID reading distance	5 cm
Verification (1:1) time	0.1 s
Product colour	Black
Housing material	Acrylic, Polycarbonate (PC)
International Protection (IP) code	IP66
Certification	CE; FCC

Ports & interfaces

Specification	Value
RS-485 ports	1

Power

Specification	Value
DC current (max)	0.5 A
DC voltage range	12 V

Weight & dimensions

Specification	Value
Mounting bracket weight	350 g
Depth	123 mm
Height	15 mm
Width	86 mm

Packaging data

Specification	Value
Package depth	185 mm
Package height	71 mm
Package width	163 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 70 °C
