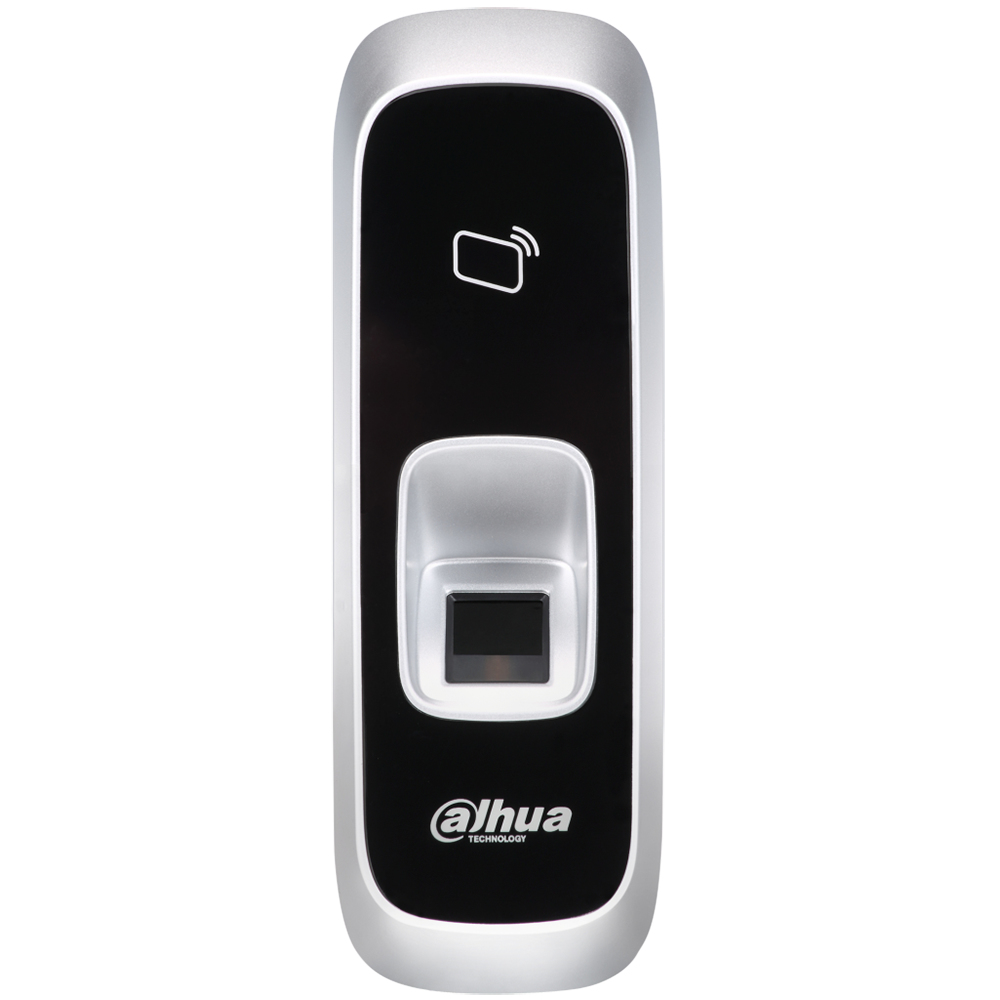

Dahua Technology DHI-ASR1102A(V3) access control reader Basic access control reader Black, Grey

Dahua Technology

DHI-ASR1102A(V3) access control reader Basic access control reader Black, Grey

Model DHI-ASR1102A(V3)EAN 6923172555731

25 specifications

TypeBasic access control reader
Weight250 g
ColourBlack, Grey
Built-in displayNo
RS-485 ports1
Power consumption (typical)1 W

See all specifications

Overview

Type: Basic access control reader
Weight: 250 g
Colour: Black, Grey
Built-in display: No
RS-485 ports: 1
Power consumption (typical): 1 W

Brand: Dahua Technology
Category: Access Control Reader
Model: DHI-ASR1102A(V3)
Part number: DHI-ASR1102A(V3)
EAN / UPC: 6923172555731
Also known as: Dahua Technology DHI-ASR1102A(V3) access control reader Basic access control reader Black, Grey

Specifications

25 specifications in 7 groups

Technical details

Specification	Value
Type	Basic access control reader
Authentication type	Access chip/card, Biometric, Password
Access chip/card reader	Yes
Access code reader	Yes
Fingerprint capacity	3000
Fingerprint reader	Yes
Fingerprint recognition duration	1.5 s
Fingerprint sensor type	Optical
RFID frequency	13.56 MHz
Product colour	Black, Grey

Display

Specification	Value
Built-in display	No

Ports & interfaces

Specification	Value
RS-485 ports	1

Power

Specification	Value
Power consumption (typical)	1 W
DC voltage range	9 - 15 V
Power consumption	100 mA

Weight & dimensions

Specification	Value
Depth	29 mm
Height	165.5 mm
Weight	250 g
Width	56.6 mm

Packaging data

Specification	Value
Package depth	56 mm
Package height	192 mm
Package weight	350 g
Package width	130 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-10 - 55 °C
