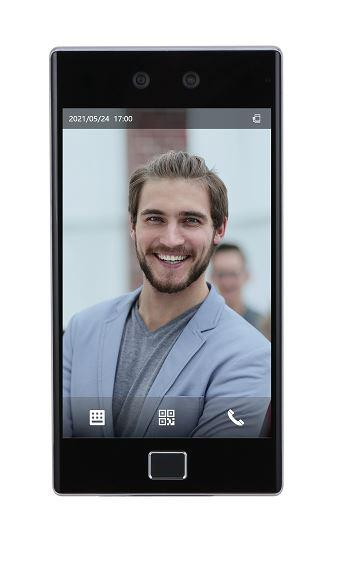

DHI-ASI8214S-W access control reader Black
Model DHI-ASI8214S-W
44 specifications
- Display20.3 cm (8")
- ColourBlack
- Access chip/card readerYes
- Input voltage12 V
- Depth24.8 mm
- Operating relative humidity (H-H)0 - 90%
Overview
- Display
- 20.3 cm (8")
- Colour
- Black
- Access chip/card reader
- Yes
- Input voltage
- 12 V
- Depth
- 24.8 mm
- Operating relative humidity (H-H)
- 0 - 90%
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- DHI-ASI8214S-W
- Part number
- DHI-ASI8214S-W
- Also known as
- Dahua Technology DHI-ASI8214S-W access control reader Black
Specifications
44 specifications in 9 groups
Technical details
| Specification | Value |
|---|---|
| Authentication type | Access chip/card, Biometric, Face recognition, Password |
| Access chip/card reader | Yes |
| Access code reader | Yes |
| Alarm function | Yes |
| Cards capacity | 500000 cards |
| Exit button | Yes |
| Face capacity | 100000 |
| Fingerprint capacity | 10000 |
| Fingerprint reader | Yes |
| Lock control | Yes |
| Password capacity | 100000 |
| Record capacity | 300000 |
| Unlock function | Yes |
| User capacity | 100000 user(s) |
| QR code | Yes |
| Product colour | Black |
| Housing material | Polycarbonate (PC) |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 20.3 cm (8") |
| Display type | LCD |
| Maximum resolution | 1280 x 800 pixels |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Wide Dynamic Range (WDR) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Alarm input/output | Yes |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 24 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 24.8 mm |
| Height | 237.4 mm |
| Width | 122.6 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 360 mm |
| Package height | 390 mm |
| Package weight | 1 kg |
| Package width | 320 mm |
Packaging content
| Specification | Value |
|---|---|
| Mounting bracket(s) included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -30 - 60 °C |
