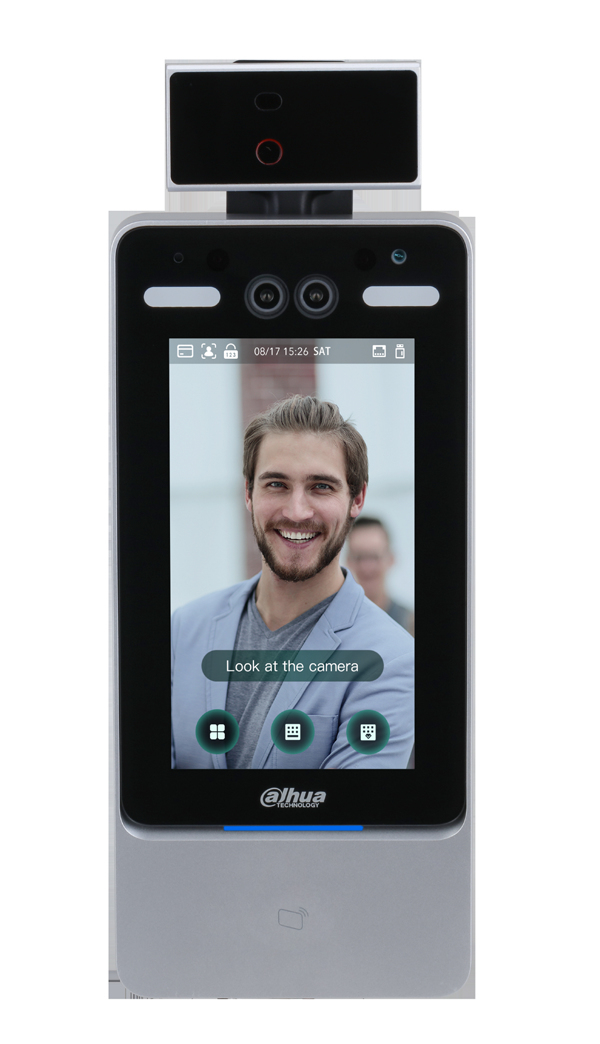

Dahua Technology DHI-ASI7213Y-V3-T1P access control reader Face recognition terminal Black, Grey
Dahua Technology

DHI-ASI7213Y-V3-T1P access control reader Face recognition terminal Black, Grey

Model DHI-ASI7213Y-V3-T1PEAN 6923172503787

53 specifications
  • Display17.8 cm (7")
  • TypeFace recognition terminal
  • ColourBlack, Grey
  • Total megapixels2 MP
  • Built-in processorYes
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

Display
17.8 cm (7")
Type
Face recognition terminal
Colour
Black, Grey
Total megapixels
2 MP
Built-in processor
Yes
Ethernet LAN (RJ-45) ports
1
Brand
Dahua Technology
Model
DHI-ASI7213Y-V3-T1P
Part number
DHI-ASI7213Y-V3-T1P
EAN / UPC
6923172503787
Also known as
Dahua Technology DHI-ASI7213Y-V3-T1P access control reader Face recognition terminal Black, Grey

Specifications

53 specifications in 9 groups

Technical details

TypeFace recognition terminal
LED indicatorsStatus
Wiegand interfaceYes
Access chip/card readerYes
Active tampering alarmYes
Anti-passbackYes
Duress alarmYes
Exit buttonYes
Face capacity50000
Face recognition accuracy99.5%
Face recognition distance0.3 - 2 m
Face recognition duration0.35 s
Holiday period128 h
InteroperabilityONVIF, CGI
Lock controlYes
Open Supervised Device Protocol (OSDP)Yes
Password capacity50000
Real-time surveillanceYes
Record capacity100000
Remote verificationYes
Software development kit (SDK) supportYes
Temperature alarmYes
Temperature measurement accuracy0.5 °C
Temperature measurement distance0.5 - 1.2 cm
Temperature measurement errorYes
Temperature measurement height120 - 210 cm
Temperature measurement range30 - 45 °C
Unlock functionYes
User capacity50000 user(s)
Voice promptsYes
Web-based managementYes
Product colourBlack, Grey
Housing materialAcrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Display

Display diagonal17.8 cm (7")
Screen shapeFlat
TouchscreenYes
Touchscreen technologyCapacitive

Camera

Total megapixels2 MP

Performance

Built-in processorYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Supported network protocolsIPv4, RTSP, RTP, TCP, UDP, P2P
Alarm input/outputYes
RS-485 ports1
USB portYes

Power

Input voltage12 V
Input current1 A
Power consumption (typical)12 W

Weight & dimensions

Depth40.5 mm
Height336.9 mm
Width130.1 mm

Packaging data

Package weight2 kg

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)15 - 30 °C
