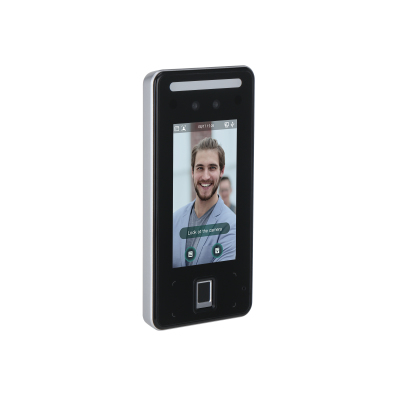

DHI-ASI6214J-MFW access control reader Intelligent access control reader Black
Model DHI-ASI6214J-MFWEAN 6939554948749
60 specifications
- Display10.9 cm (4.3")
- Weight780 g
- ColourBlack
- Wiegand interfaceYes
- Ethernet LAN (RJ-45) ports1
- Power consumption (typical)24 W
Overview
- Display
- 10.9 cm (4.3")
- Weight
- 780 g
- Colour
- Black
- Wiegand interface
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Power consumption (typical)
- 24 W
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- DHI-ASI6214J-MFW
- Part number
- DHI-ASI6214J-MFW
- EAN / UPC
- 6939554948749
- Also known as
- Dahua Technology DHI-ASI6214J-MFW access control reader Intelligent access control reader Black
Specifications
60 specifications in 9 groups
Technical details
| Specification | Value |
|---|---|
| Type | Intelligent access control reader |
| Authentication type | Access chip/card, Biometric, Face recognition, Password |
| Wiegand interface | Yes |
| Access chip/card reader | Yes |
| Alarm input channels | 1 |
| Anti-passback | Yes |
| Cards capacity | 6000 cards |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Duress alarm | Yes |
| Exit button | Yes |
| Face recognition accuracy | 99.5% |
| Face recognition distance | 0.3 - 1.5 m |
| Fingerprint capacity | 6000 |
| Fingerprint reader | Yes |
| Fingerprint recognition duration | 0.5 s |
| Holiday period | 512 h |
| Interoperability | CGI |
| Lock control | Yes |
| Open Supervised Device Protocol (OSDP) | Yes |
| Real-time surveillance | Yes |
| Recommended usage | Indoor & outdoor |
| Remote verification | Yes |
| Software development kit (SDK) support | Yes |
| Tamper | Yes |
| Voice prompts | Yes |
| Waterproof | Yes |
| Web-based management | Yes |
| Number of users | 6000 user(s) |
| Product colour | Black |
| Housing material | Metal, Polycarbonate (PC) |
| International Protection (IP) code | IP65 |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Display type | TFT |
| Maximum resolution | 480 x 272 pixels |
| Screen shape | Curved |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Sensor type | CMOS |
| Total megapixels | 2 MP |
| Infrared (IR) light | Yes |
| Wide Dynamic Range (WDR) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100 |
| Supported network protocols | IPv4; RTSP; RTP; TCP; UDP; P2P |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 24 W |
| DC current (max) | 2 A |
| DC voltage range | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 22.5 mm |
| Height | 174 mm |
| Weight | 780 g |
| Width | 87.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Mounting bracket(s) included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 60 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
