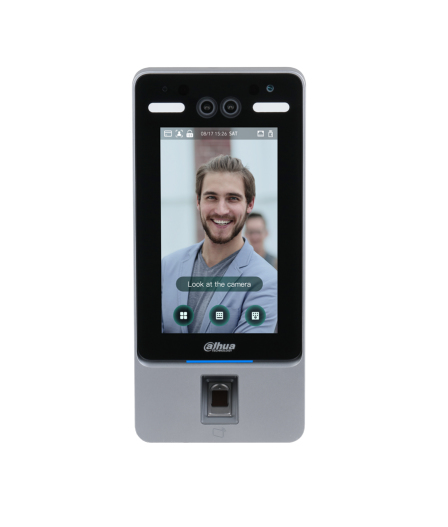

Dahua Technology DHI-ASI4214Y access control reader Face recognition terminal Black, Grey

Dahua Technology

DHI-ASI4214Y access control reader Face recognition terminal Black, Grey

Model DHI-ASI4214Y

32 specifications

Display17.8 cm (7")
TypeFace recognition terminal
ColourBlack, Grey
Sensor typeCMOS
Ethernet LAN (RJ-45) ports1
Input voltage12 V

See all specifications

Overview

Display: 17.8 cm (7")
Type: Face recognition terminal
Colour: Black, Grey
Sensor type: CMOS
Ethernet LAN (RJ-45) ports: 1
Input voltage: 12 V

Brand: Dahua Technology
Category: Access Control Reader
Model: DHI-ASI4214Y
Part number: DHI-ASI4214Y
Also known as: Dahua Technology DHI-ASI4214Y access control reader Face recognition terminal Black, Grey

Specifications

32 specifications in 8 groups

Technical details

Specification	Value
Type	Face recognition terminal
Access chip/card reader	Yes
Active tampering alarm	Yes
Anti-passback	Yes
Duress alarm	Yes
Face recognition accuracy	99.5%
Open Supervised Device Protocol (OSDP)	Yes
Real-time surveillance	Yes
Software development kit (SDK) support	Yes
User capacity	2000 user(s)
Voice prompts	Yes
Product colour	Black, Grey
Certification	CE/FCC

Display

Specification	Value
Display diagonal	17.8 cm (7")

Camera

Specification	Value
Sensor type	CMOS
Total megapixels	2 MP
Wide Dynamic Range (WDR)	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Supported network protocols	IPv4, RTSP, RTP, TCP, UDP, P2P
RS-232 ports	1
RS-485 ports	1
USB port	Yes

Power

Specification	Value
Input voltage	12 V

Weight & dimensions

Specification	Value
Depth	36.9 mm
Height	283 mm
Width	130 mm

Packaging data

Specification	Value
Package depth	124 mm
Package height	380 mm
Package weight	1.8 kg
Package width	235 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 55 °C
