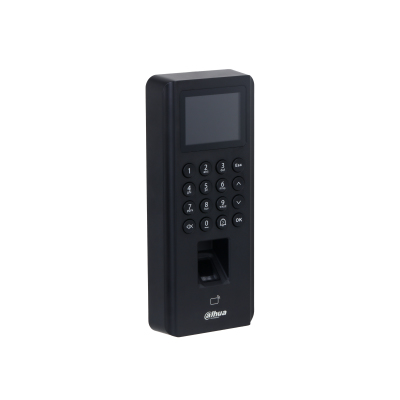

DHI-ASI2212J-D access control reader Intelligent access control reader Black
Model DHI-ASI2212J-DEAN 6923169753812
43 specifications
- Display6.1 cm (2.4")
- ColourBlack
- Wiegand interfaceYes
- Ethernet LAN (RJ-45) ports1
- Input voltage12 V
- Depth30 mm
Overview
- Display
- 6.1 cm (2.4")
- Colour
- Black
- Wiegand interface
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Input voltage
- 12 V
- Depth
- 30 mm
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- DHI-ASI2212J-D
- Part number
- DHI-ASI2212J-D
- EAN / UPC
- 6923169753812
- Also known as
- Dahua Technology DHI-ASI2212J-D access control reader Intelligent access control reader Black
Specifications
43 specifications in 7 groups
Technical details
| Specification | Value |
|---|---|
| Type | Intelligent access control reader |
| Authentication type | Access chip/card, Biometric, Password |
| Wiegand interface | Yes |
| Access chip/card reader | Yes |
| Access chip/card reader type | Contactless |
| Access code reader | Yes |
| Alarm function | Yes |
| Alarm output channels | 1 |
| Contactless working distance | 6 cm |
| Exit button | Yes |
| Fingerprint capacity | 3000 |
| Fingerprint reader | Yes |
| Fingerprint sensor type | Optical |
| Identification (1:N) time | 1 s |
| Keypad integrated | Yes |
| Password capacity | 5000 |
| Record capacity | 100000 |
| Remotely operated | Yes |
| User capacity | 5000 user(s) |
| Number of users | 5000 user(s) |
| Product colour | Black |
| Certification | CE; FCC |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 6.1 cm (2.4") |
| Display type | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100 Mbit/s |
| Cabling technology | 10/100 |
| Supported network protocols | UDP; TCP; IPv4; P2P |
| Alarm input/output | Yes |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Power consumption (max) | 12 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 30 mm |
| Height | 205 mm |
| Width | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 75 mm |
| Package height | 254 mm |
| Package weight | 450 g |
| Package width | 131 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -10 - 55 °C |
