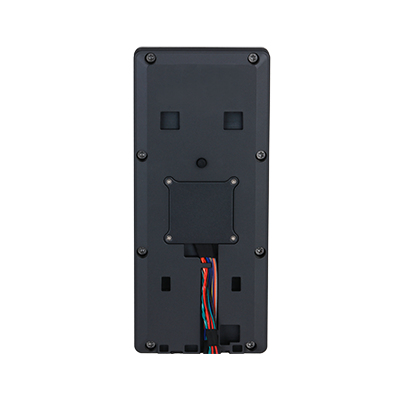

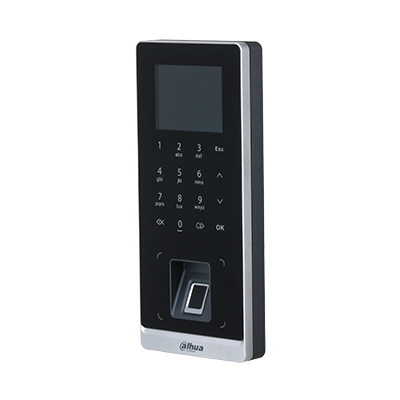

DHI-ASI2212H-W access control reader Intelligent access control reader
Model DHI-ASI2212H-WEAN 6923172504821
33 specifications
- Display6.1 cm (2.4")
- Weight264 g
- BuzzerYes
- Front cameraNo
- Ethernet LAN (RJ-45) ports1
- DC current (max)1 A
Overview
- Display
- 6.1 cm (2.4")
- Weight
- 264 g
- Buzzer
- Yes
- Front camera
- No
- Ethernet LAN (RJ-45) ports
- 1
- DC current (max)
- 1 A
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- DHI-ASI2212H-W
- Part number
- DHI-ASI2212H-W
- EAN / UPC
- 6923172504821
- Also known as
- Dahua Technology DHI-ASI2212H-W access control reader Intelligent access control reader
Specifications
33 specifications in 8 groups
Technical details
| Specification | Value |
|---|---|
| Type | Intelligent access control reader |
| Authentication type | Access chip/card, Biometric, Password |
| Buzzer | Yes |
| Access chip/card reader | Yes |
| Access code reader | Yes |
| Cards capacity | 30000 cards |
| Fingerprint capacity | 3000 |
| Fingerprint reader | Yes |
| Number of users | 30000 user(s) |
| Certification | CE; FCC |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 6.1 cm (2.4") |
| Display type | LCD |
| Maximum resolution | 240 x 320 pixels |
Camera
| Specification | Value |
|---|---|
| Front camera | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | IPv4; TCP; UDP; P2P |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| DC current (max) | 1 A |
| DC voltage range | 12 V |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 25.5 mm |
| Height | 183 mm |
| Weight | 264 g |
| Width | 80 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 66 mm |
| Package height | 248 mm |
| Package weight | 464 g |
| Package width | 143 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -30 - 65 °C |
