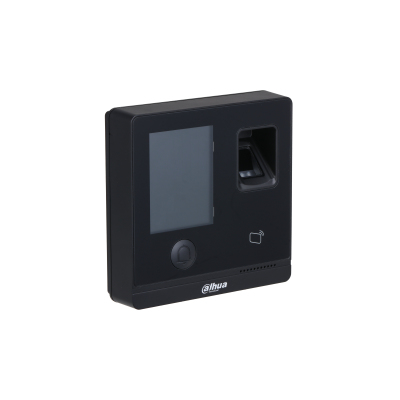

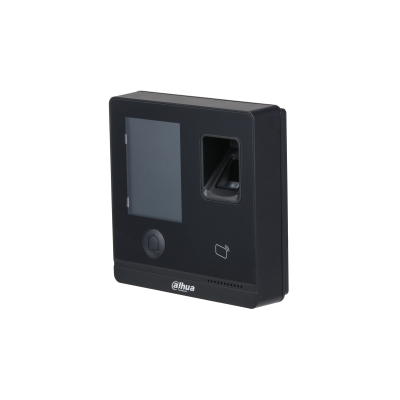

DHI-ASI1212F access control reader Intelligent access control reader Black
Model DHI-ASI1212FEAN 6939554986246
44 specifications
- Display7.11 cm (2.8")
- ColourBlack
- Authentication typeAccess chip/card, Biometric
- Built-in displayYes
- Ethernet LAN (RJ-45) ports1
- Input voltage12 V
Overview
- Display
- 7.11 cm (2.8")
- Colour
- Black
- Authentication type
- Access chip/card, Biometric
- Built-in display
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Input voltage
- 12 V
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- DHI-ASI1212F
- Part number
- DHI-ASI1212F
- EAN / UPC
- 6939554986246
- Also known as
- Dahua Technology DHI-ASI1212F access control reader Intelligent access control reader Black
Specifications
44 specifications in 10 groups
Technical details
| Specification | Value |
|---|---|
| Type | Intelligent access control reader |
| Authentication type | Access chip/card, Biometric |
| Buzzer | Yes |
| Access chip/card reader | Yes |
| Alarm function | Yes |
| Anti-passback | Yes |
| Cards capacity | 30000 cards |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Duress alarm | Yes |
| Fingerprint capacity | 3000 |
| Fingerprint reader | Yes |
| Fingerprint recognition duration | 1.5 s |
| Fingerprint sensor type | Optical |
| Lock control | Yes |
| Recommended usage | Indoor |
| Tamper | Yes |
| User capacity | 30000 user(s) |
| Number of users | 30000 user(s) |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Glass, Polycarbonate (PC) |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 7.11 cm (2.8") |
| Display type | TFT |
| Maximum resolution | 240 x 320 pixels |
| Touchscreen | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 32.5 mm |
| Height | 114.5 mm |
| Width | 114.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 72 mm |
| Package height | 187 mm |
| Package weight | 415 g |
| Package width | 164 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -10 - 45 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
