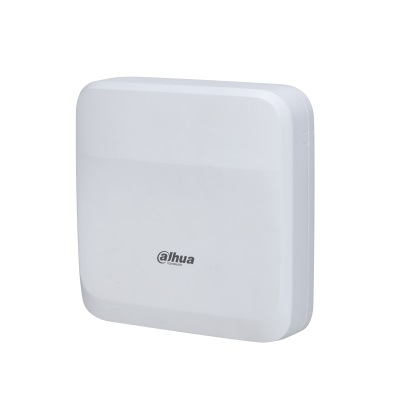

DHI-ASC3202B access control reader Basic access control reader White
Model DHI-ASC3202BEAN 6923172500106
46 specifications
- TypeBasic access control reader
- Weight990 g
- ColourWhite
- Built-in displayNo
- Ethernet LAN (RJ-45) ports1
- Power over Ethernet (PoE)Yes
Overview
- Type
- Basic access control reader
- Weight
- 990 g
- Colour
- White
- Built-in display
- No
- Ethernet LAN (RJ-45) ports
- 1
- Power over Ethernet (PoE)
- Yes
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- DHI-ASC3202B
- Part number
- DHI-ASC3202B
- EAN / UPC
- 6923172500106
- Also known as
- Dahua Technology DHI-ASC3202B access control reader Basic access control reader White
Specifications
46 specifications in 9 groups
Technical details
| Specification | Value |
|---|---|
| Type | Basic access control reader |
| Authentication type | Access chip/card, Password |
| Buzzer | Yes |
| Wiegand interface | Yes |
| Tamper protection | Yes |
| Access chip/card reader | Yes |
| Access code reader | No |
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Cards capacity | 5000 cards |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Duress alarm | Yes |
| Exit button | Yes |
| Fingerprint capacity | 3000 |
| Fingerprint reader | Yes |
| Interoperability | ONVIF; CGI |
| Lock control | Yes |
| Real-time surveillance | Yes |
| Record capacity | 300000 |
| Software development kit (SDK) support | Yes |
| Unlock function | Yes |
| User capacity | 1000 user(s) |
| Web-based management | Yes |
| Product colour | White |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| IK code | IK06 |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Camera
| Specification | Value |
|---|---|
| Front camera | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100 |
| Supported network protocols | P2P; IPv4; DNS; DDNS; TCP; UDP |
| RS-485 ports | 3 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Power consumption | 1700 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 186.4 mm |
| Height | 58.3 mm |
| Weight | 990 g |
| Width | 185.8 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 254 mm |
| Package height | 86 mm |
| Package width | 243 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
