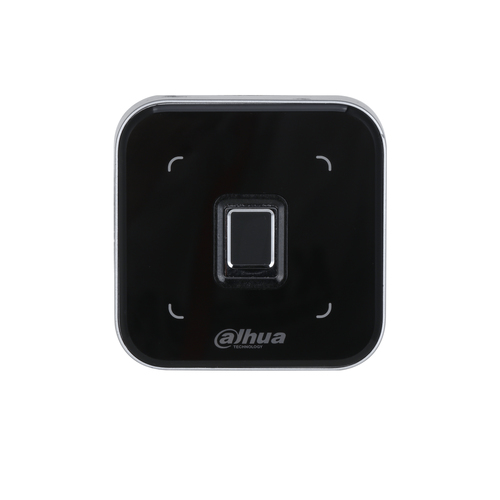

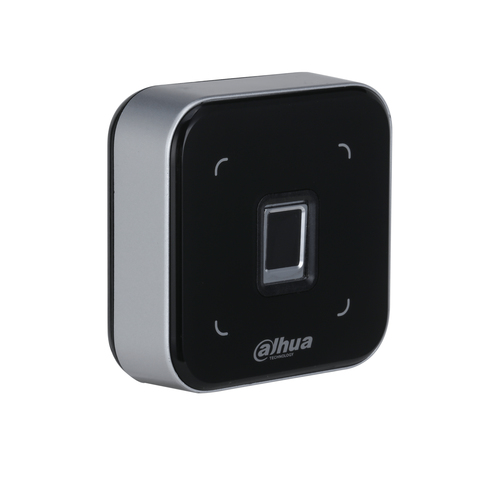

ASR2102A-D Basic access control reader Black
Model ASR2102A-DPart no. DHI-ASR2102A-DEAN 6939554939631
38 specifications
- TypeBasic access control reader
- ColourBlack
- Built-in displayNo
- RS-485 ports1
- Power consumption (typical)1.7 W
- Depth70 mm
Overview
- Type
- Basic access control reader
- Colour
- Black
- Built-in display
- No
- RS-485 ports
- 1
- Power consumption (typical)
- 1.7 W
- Depth
- 70 mm
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- ASR2102A-D
- Part number
- DHI-ASR2102A-D
- EAN / UPC
- 6939554939631
- Also known as
- Dahua Technology ASR2102A-D Basic access control reader Black
Specifications
38 specifications in 9 groups
Technical details
| Specification | Value |
|---|---|
| Type | Basic access control reader |
| Authentication type | Access chip/card, Biometric |
| Buzzer | Yes |
| Tamper protection | Yes |
| Access chip/card reader | Yes |
| Access chip/card reader type | Contactless |
| Active tampering alarm | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Contacting working distance | 0 mm |
| Contactless working distance | 5 cm |
| Fingerprint capacity | 3000 |
| Fingerprint reader | Yes |
| Fingerprint recognition duration | 1.5 s |
| Fingerprint sensor type | Capacitive |
| Identification (1:N) time | 0.1 s |
| Recommended usage | Indoor & outdoor |
| Unlock function | Yes |
| Watch Dog function | Yes |
| Waterproof | Yes |
| Product colour | Black |
| Housing material | Acrylic, Polycarbonate (PC) |
| International Protection (IP) code | IP65 |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Camera
| Specification | Value |
|---|---|
| Front camera | No |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.7 W |
| DC current (max) | 0.5 A |
| DC voltage range | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 70 mm |
| Height | 26 mm |
| Width | 70 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 313 mm |
| Package height | 204 mm |
| Package weight | 170 g |
| Package width | 578 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 65 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
