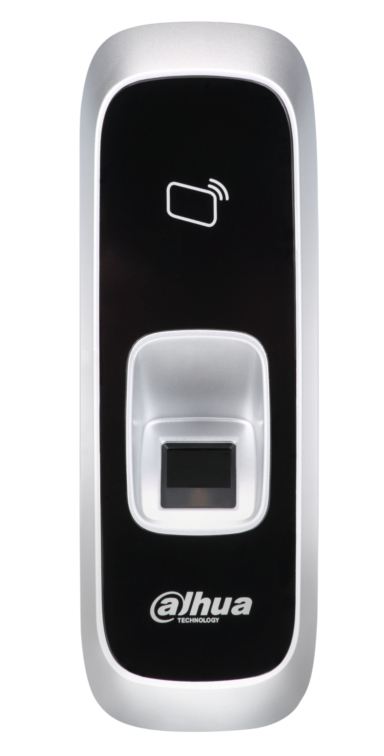

Dahua Technology ASR1102A-D access control reader Basic access control reader Black, Grey

Dahua Technology

ASR1102A-D access control reader Basic access control reader Black, Grey

Model ASR1102A-D

27 specifications

TypeBasic access control reader
Weight250 g
ColourBlack, Grey
Built-in displayYes
DC voltage range9 - 15 V
Depth56 mm

See all specifications

Overview

Type: Basic access control reader
Weight: 250 g
Colour: Black, Grey
Built-in display: Yes
DC voltage range: 9 - 15 V
Depth: 56 mm

Brand: Dahua Technology
Category: Access Control Reader
Model: ASR1102A-D
Part number: ASR1102A-D
Also known as: Dahua Technology ASR1102A-D access control reader Basic access control reader Black, Grey

Specifications

27 specifications in 7 groups

Technical details

Specification	Value
Type	Basic access control reader
Authentication type	Access chip/card
Access chip/card reader	Yes
Access chip/card reader type	Contactless
Access code reader	Yes
Alarm function	Yes
False Acceptance Rate (FAR)	0.00004%
False Rejection Rate (FRR)	0.15%
Identification (1:N) time	1.5 s
Verification (1:1) time	0.5 s
Watch Dog function	Yes
Product colour	Black, Grey
International Protection (IP) code	IP55

Display

Specification	Value
Built-in display	Yes
Display type	LCD

Performance

Specification	Value
Built-in processor	Yes

Ports & interfaces

Specification	Value
PC connected	Yes
PC connection	RS-485
RS-485 ports	1

Power

Specification	Value
DC voltage range	9 - 15 V
Power consumption	100 mA

Weight & dimensions

Specification	Value
Depth	56 mm
Height	47 mm
Weight	250 g
Width	125 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-5 - 55 °C
