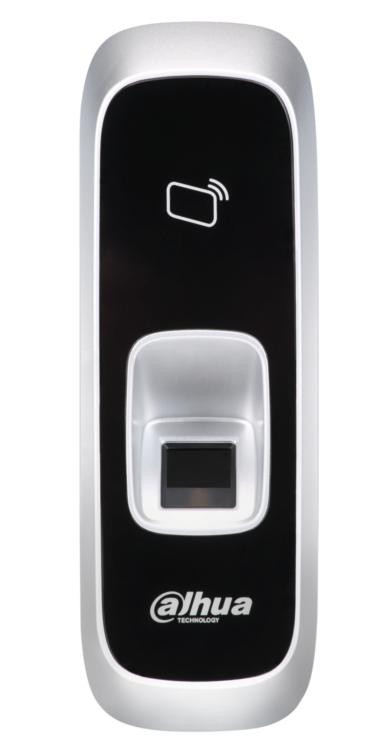

Dahua Technology ASR1102A access control reader Basic access control reader Black, Grey

Dahua Technology

ASR1102A access control reader Basic access control reader Black, Grey

Model ASR1102A

28 specifications

TypeBasic access control reader
Weight250 g
ColourBlack, Grey
Built-in displayYes
DC voltage range9 - 15 V
Depth56 mm

See all specifications

Overview

Type: Basic access control reader
Weight: 250 g
Colour: Black, Grey
Built-in display: Yes
DC voltage range: 9 - 15 V
Depth: 56 mm

Brand: Dahua Technology
Category: Access Control Reader
Model: ASR1102A
Part numbers: ASR1102A, ASR1102A(V2)
Also known as: Dahua Technology ASR1102A access control reader Basic access control reader Black, Grey

Specifications

28 specifications in 7 groups

Technical details

Specification	Value
Type	Basic access control reader
Authentication type	Access chip/card
Access chip/card reader	Yes
Access chip/card reader type	Contactless
Access code reader	Yes
Alarm function	Yes
False Acceptance Rate (FAR)	0.00004%
False Rejection Rate (FRR)	0.15%
Identification (1:N) time	1.5 s
RFID frequency	13.56 MHz
Verification (1:1) time	0.5 s
Watch Dog function	Yes
Product colour	Black, Grey
International Protection (IP) code	IP55

Display

Specification	Value
Built-in display	Yes
Display type	LCD

Performance

Specification	Value
Built-in processor	Yes

Ports & interfaces

Specification	Value
PC connected	Yes
PC connection	RS-485
RS-485 ports	1

Power

Specification	Value
DC voltage range	9 - 15 V
Power consumption	100 mA

Weight & dimensions

Specification	Value
Depth	56 mm
Height	47 mm
Weight	250 g
Width	125 mm

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-5 - 55 °C
