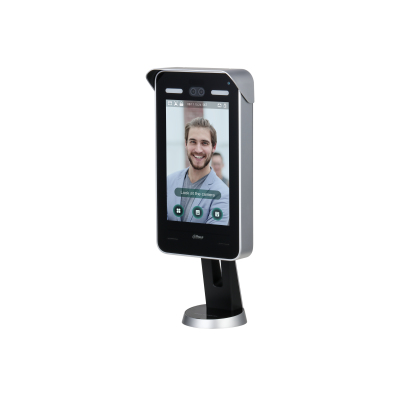

ASI8223Y-A-V3 Face recognition terminal
Model ASI8223Y-A-V3Part no. DHI-ASI8223Y-A-V3
51 specifications
- Display25.6 cm (10.1")
- TypeFace recognition terminal
- Weight5.51 kg
- Built-in displayYes
- Ethernet LAN (RJ-45) ports1
- Power consumption (typical)24 W
Overview
- Display
- 25.6 cm (10.1")
- Type
- Face recognition terminal
- Weight
- 5.51 kg
- Built-in display
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Power consumption (typical)
- 24 W
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- ASI8223Y-A-V3
- Part number
- DHI-ASI8223Y-A-V3
- Also known as
- Dahua Technology ASI8223Y-A-V3 Face recognition terminal
Specifications
51 specifications in 8 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| Authentication type | Access chip/card, Face recognition, Password |
| LED indicators | Status |
| Tamper protection | Yes |
| Access chip/card reader | Yes |
| Access code reader | Yes |
| Alarm input channels | 1 |
| Anti-passback | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Duress alarm | Yes |
| Face capacity | 100000 |
| Face recognition accuracy | 99.5% |
| Face recognition distance | 0.3 - 2 m |
| Face recognition duration | 0.2 s |
| Fingerprint reader | No |
| Holiday period | 128 h |
| Open Supervised Device Protocol (OSDP) | Yes |
| Password capacity | 100000 |
| Real-time surveillance | Yes |
| Record capacity | 100000 |
| Remote verification | Yes |
| Software development kit (SDK) support | Yes |
| Unlock function | Yes |
| User capacity | 100000 user(s) |
| Voice prompts | Yes |
| Web-based management | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 25.6 cm (10.1") |
| Display type | TFT |
| Maximum resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Total megapixels | 2 MP |
| Wide Dynamic Range (WDR) | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100 Mbit/s |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 24 W |
| DC current (max) | 2 A |
| DC voltage range | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 190.6 mm |
| Height | 78 mm |
| Weight | 5.51 kg |
| Width | 464.5 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
