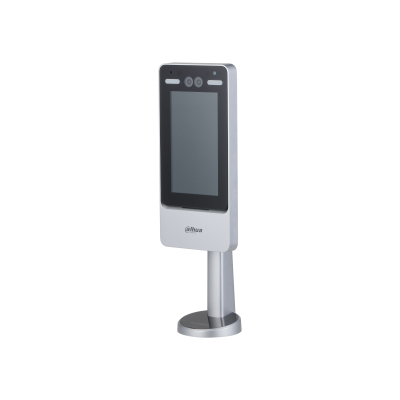

ASI7223Y-A-V3 Face recognition terminal Black, Silver
Model ASI7223Y-A-V3Part no. DHI-ASI7223Y-A-V3EAN 6939554979248
59 specifications
- Display17.8 cm (7")
- TypeFace recognition terminal
- Weight2.5 kg
- ColourBlack, Silver
- Built-in displayYes
- Ethernet LAN (RJ-45) ports1
Overview
- Display
- 17.8 cm (7")
- Type
- Face recognition terminal
- Weight
- 2.5 kg
- Colour
- Black, Silver
- Built-in display
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- ASI7223Y-A-V3
- Part number
- DHI-ASI7223Y-A-V3
- EAN / UPC
- 6939554979248
- Also known as
- Dahua Technology ASI7223Y-A-V3 Face recognition terminal Black, Silver
Specifications
59 specifications in 9 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| Authentication type | Access chip/card, Face recognition, Password |
| LED indicators | Status |
| Wiegand interface | Yes |
| Tamper protection | Yes |
| Access chip/card reader | Yes |
| Access code reader | Yes |
| Alarm function | Yes |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Anti-passback | Yes |
| Duress alarm | Yes |
| Exit button | Yes |
| Face capacity | 50000 |
| Face recognition accuracy | 99.5% |
| Face recognition distance | 0.3 - 2 m |
| Face recognition duration | 0.35 s |
| Fingerprint reader | No |
| Holiday period | 128 h |
| Lock control | Yes |
| Open Supervised Device Protocol (OSDP) | Yes |
| Password capacity | 50000 |
| Real-time surveillance | Yes |
| Record capacity | 100000 |
| Remote verification | Yes |
| Software development kit (SDK) support | Yes |
| User capacity | 50000 user(s) |
| Voice prompts | Yes |
| Web-based management | Yes |
| Product colour | Black, Silver |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 17.8 cm (7") |
| Display type | IPS |
| Maximum resolution | 600 x 1024 pixels |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Total megapixels | 2 MP |
| Wide Dynamic Range (WDR) | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Alarm input/output | Yes |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 12 W |
| DC current (max) | 2 A |
| DC voltage range | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 130 mm |
| Height | 106.6 mm |
| Weight | 2.5 kg |
| Width | 416 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 535 mm |
| Package height | 310 mm |
| Package width | 1070 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
