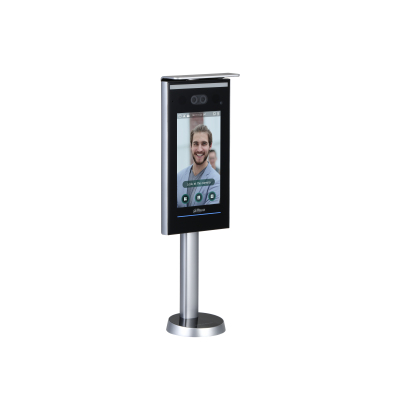

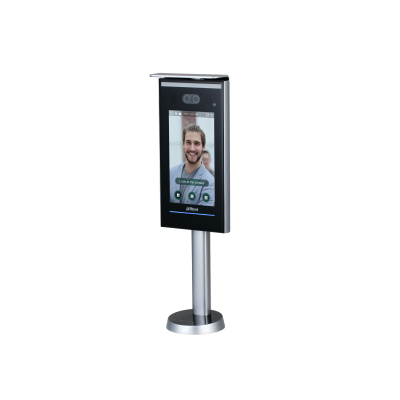

ASI7223X-A Face recognition terminal Black, Steel
Model ASI7223X-APart no. DHI-ASI7223X-A
60 specifications
- Display17.8 cm (7")
- TypeFace recognition terminal
- ColourBlack, Steel
- Built-in displayYes
- Supported network protocolsIPv4, RTSP, RTP, TCP, UDP, P2P
- Power consumption (typical)24 W
Overview
- Display
- 17.8 cm (7")
- Type
- Face recognition terminal
- Colour
- Black, Steel
- Built-in display
- Yes
- Supported network protocols
- IPv4, RTSP, RTP, TCP, UDP, P2P
- Power consumption (typical)
- 24 W
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- ASI7223X-A
- Part number
- DHI-ASI7223X-A
- Also known as
- Dahua Technology ASI7223X-A Face recognition terminal Black, Steel
Specifications
60 specifications in 8 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| Authentication type | Face recognition |
| LED indicators | Status |
| Wiegand interface | Yes |
| Access chip/card reader | Yes |
| Access code reader | Yes |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Face capacity | 100000 |
| Face recognition accuracy | 99.5% |
| Face recognition distance | 0.3 - 2 m |
| Face recognition duration | 0.2 s |
| Holiday period | 128 h |
| Open Supervised Device Protocol (OSDP) | Yes |
| Password capacity | 100000 |
| Recommended usage | Indoor & outdoor |
| Record capacity | 300000 |
| Remote verification | Yes |
| Remotely operated | Yes |
| Software development kit (SDK) support | Yes |
| Temperature measurement range | -30 - 60 °C |
| User capacity | 100000 user(s) |
| Voice prompts | Yes |
| Waterproof | Yes |
| Web-based management | Yes |
| Number of users | 100000 user(s) |
| Product colour | Black, Steel |
| Housing material | Aluminium, Polycarbonate (PC), Tempered glass |
| International Protection (IP) code | IP65 |
| Certification | CE/FCC |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 17.8 cm (7") |
| Display type | LCD |
| Maximum resolution | 1024 x 600 pixels |
| Screen shape | Flat |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera type | Dual camera |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Total megapixels | 2 MP |
| Infrared (IR) light | Yes |
| Wide Dynamic Range (WDR) | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Supported network protocols | IPv4, RTSP, RTP, TCP, UDP, P2P |
| PC connected | Yes |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 24 W |
| DC current (max) | 2 A |
| DC voltage range | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 98.8 mm |
| Height | 428 mm |
| Width | 129 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 320 mm |
| Package height | 545 mm |
| Package weight | 3 kg |
| Package width | 585 mm |
