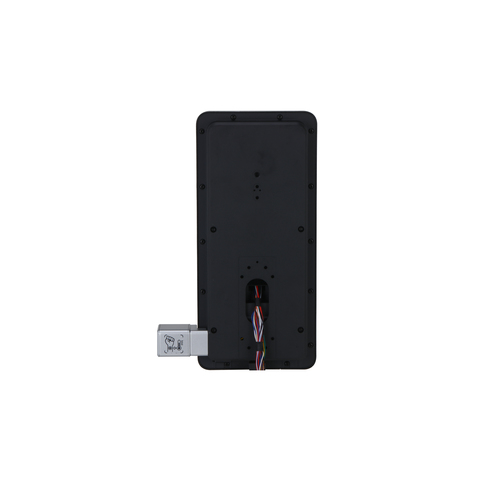

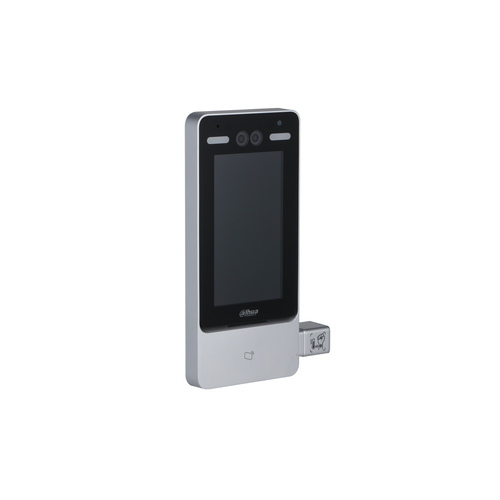

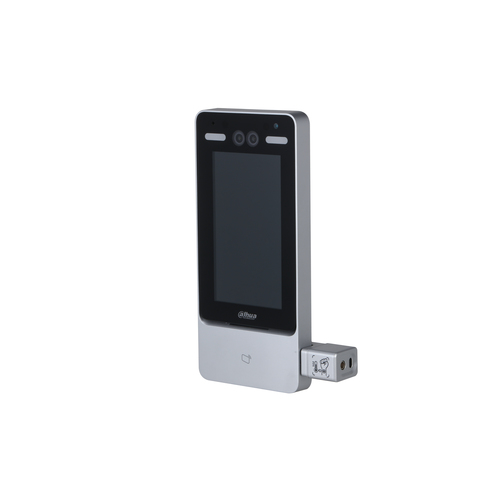

ASI7213YO-V3-T0 access control reader Face recognition terminal Silver, Black
Model ASI7213YO-V3-T0
50 specifications
- Display17.8 cm (7")
- TypeFace recognition terminal
- ColourSilver, Black
- Sensor typeCMOS
- Ethernet LAN (RJ-45) ports1
- Input voltage12 V
Overview
- Display
- 17.8 cm (7")
- Type
- Face recognition terminal
- Colour
- Silver, Black
- Sensor type
- CMOS
- Ethernet LAN (RJ-45) ports
- 1
- Input voltage
- 12 V
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- ASI7213YO-V3-T0
- Part number
- ASI7213YO-V3-T0
- Also known as
- Dahua Technology ASI7213YO-V3-T0 access control reader Face recognition terminal Silver, Black
Specifications
50 specifications in 8 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| LED indicators | Status |
| Access chip/card reader | Yes |
| Active tampering alarm | Yes |
| Anti-passback | Yes |
| Duress alarm | Yes |
| Exit button | Yes |
| Face capacity | 50000 |
| Face recognition accuracy | 99.5% |
| Face recognition distance | 0.3 - 1 m |
| Face recognition duration | 0.35 s |
| Holiday period | 128 h |
| Lock control | Yes |
| Password capacity | 50000 |
| Real-time surveillance | Yes |
| Record capacity | 100000 |
| Remotely operated | Yes |
| Temperature measurement accuracy | 0.3 °C |
| Temperature measurement distance | 1 - 5 cm |
| Temperature measurement range | 30 - 45 °C |
| User capacity | 50000 user(s) |
| Web-based management | Yes |
| Product colour | Silver, Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Certification | CE/FCC |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Screen shape | Flat |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Camera
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Total megapixels | 2 MP |
| Infrared (IR) light | Yes |
| Number of cameras | 2 |
| Wide Dynamic Range (WDR) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input/output | Yes |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 12 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 40.7 mm |
| Height | 283.1 mm |
| Width | 130.1 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 380 mm |
| Package height | 124 mm |
| Package weight | 1.9 kg |
| Package width | 235 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 10 - 40 °C |
