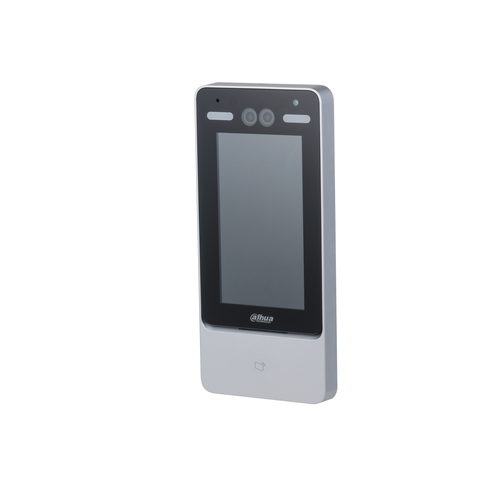

ASI7213Y-V3 access control reader Face recognition terminal Black, Grey
Model ASI7213Y-V3
50 specifications
- Display17.8 cm (7")
- TypeFace recognition terminal
- ColourBlack, Grey
- Sensor typeCMOS
- Built-in processorYes
- Ethernet LAN (RJ-45) ports1
Overview
- Display
- 17.8 cm (7")
- Type
- Face recognition terminal
- Colour
- Black, Grey
- Sensor type
- CMOS
- Built-in processor
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- ASI7213Y-V3
- Part number
- ASI7213Y-V3
- Also known as
- Dahua Technology ASI7213Y-V3 access control reader Face recognition terminal Black, Grey
Specifications
50 specifications in 9 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| LED indicators | Status |
| Wiegand interface | Yes |
| Access chip/card reader | Yes |
| Active tampering alarm | Yes |
| Anti-passback | Yes |
| Duress alarm | Yes |
| Exit button | Yes |
| Face capacity | 50000 |
| Face recognition accuracy | 99.5% |
| Face recognition distance | 0.3 - 2 m |
| Face recognition duration | 0.35 s |
| Holiday period | 128 h |
| Interoperability | CGI |
| Lock control | Yes |
| Open Supervised Device Protocol (OSDP) | Yes |
| Password capacity | 50000 |
| Real-time surveillance | Yes |
| Record capacity | 100000 |
| Remote verification | Yes |
| Software development kit (SDK) support | Yes |
| Unlock function | Yes |
| User capacity | 50000 user(s) |
| Voice prompts | Yes |
| Web-based management | Yes |
| Product colour | Black, Grey |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Screen shape | Flat |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Camera
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Total megapixels | 2 MP |
| Wide Dynamic Range (WDR) | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | IPv4, RTSP, RTP, TCP, UDP, P2P |
| Alarm input/output | Yes |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 12 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 36.9 mm |
| Height | 283 mm |
| Width | 130 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.8 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
