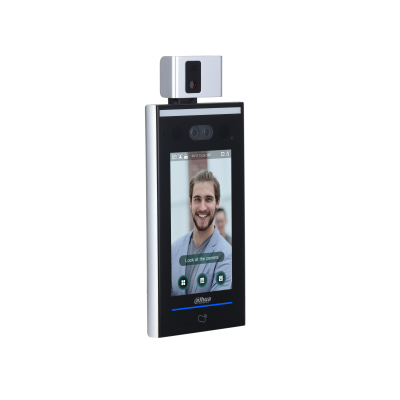

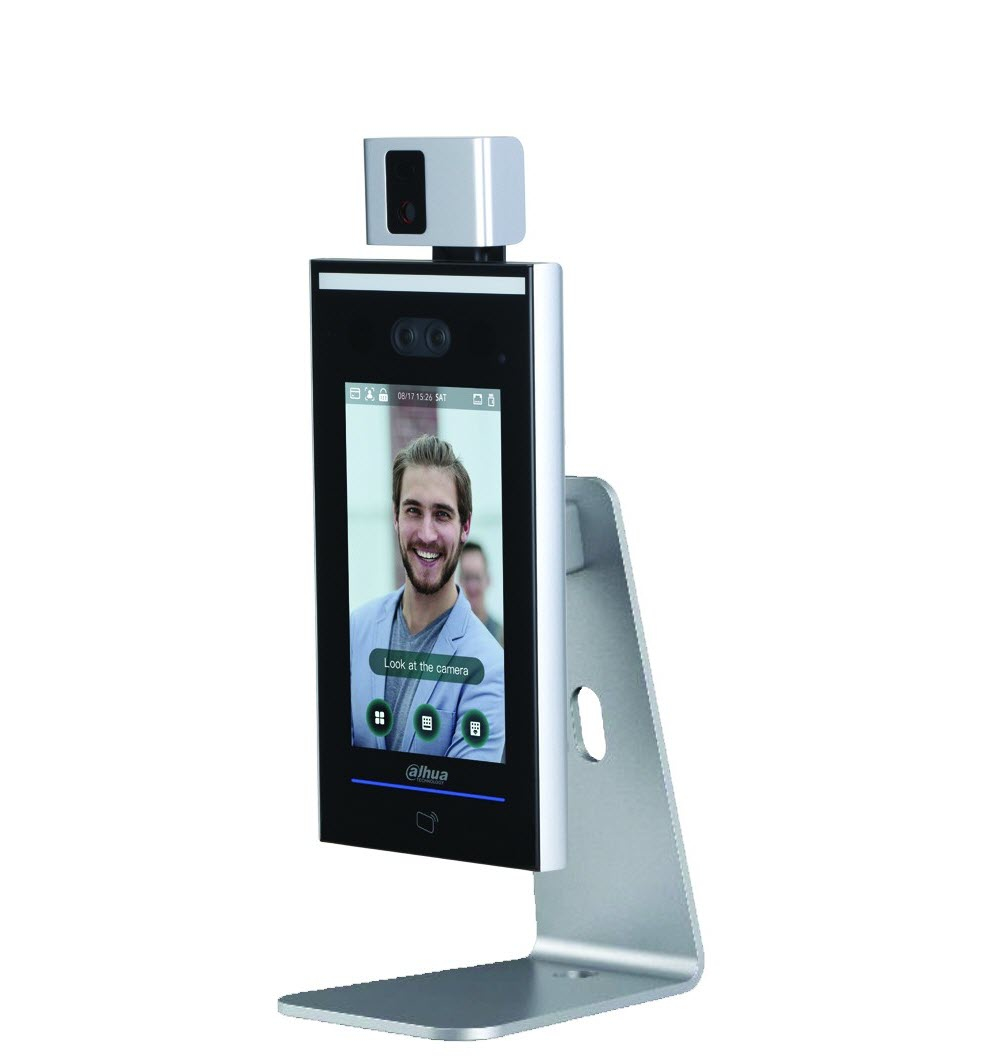

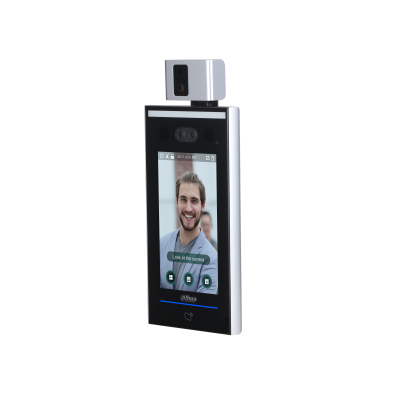

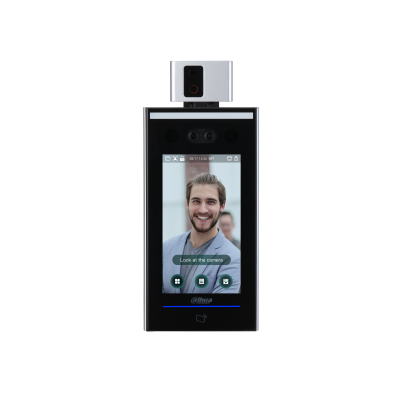

ASI7213X-T1 + ASF072X-T1
Model ASI7213X-T1 + ASF072X-T1Part no. ASI7213X-KIT
59 specifications
- Display17.8 cm (7")
- TypeFace recognition terminal
- ColourBlack, Silver
- Sensor typeCMOS
- Built-in processorYes
- Ethernet LAN (RJ-45) ports1
Overview
- Display
- 17.8 cm (7")
- Type
- Face recognition terminal
- Colour
- Black, Silver
- Sensor type
- CMOS
- Built-in processor
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- ASI7213X-T1 + ASF072X-T1
- Part number
- ASI7213X-KIT
- Also known as
- Dahua Technology ASI7213X-T1 + ASF072X-T1 Face recognition terminal Black, Silver
Specifications
59 specifications in 9 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| LED indicators | Status |
| Wiegand interface | Yes |
| Access chip/card reader | Yes |
| Active tampering alarm | Yes |
| Anti-passback | Yes |
| Compliance certificates | CE |
| Duress alarm | Yes |
| Exit button | Yes |
| Face capacity | 100000 |
| Face recognition accuracy | 99.5% |
| Face recognition distance | 0.3 - 1.2 m |
| Face recognition duration | 0.2 s |
| Holiday period | 128 h |
| Interoperability | ONVIF, CGI |
| Lock control | Yes |
| Open Supervised Device Protocol (OSDP) | Yes |
| Password capacity | 100000 |
| Real-time surveillance | Yes |
| Record capacity | 300000 |
| Remote verification | Yes |
| Software development kit (SDK) support | Yes |
| Temperature alarm | Yes |
| Temperature measurement accuracy | 0.5 °C |
| Temperature measurement distance | 0.5 - 1.2 cm |
| Temperature measurement error | Yes |
| Temperature measurement height | 120 - 210 cm |
| Temperature measurement range | 30 - 45 °C |
| Unlock function | Yes |
| User capacity | 100000 user(s) |
| Voice prompts | Yes |
| Web-based management | Yes |
| Product colour | Black, Silver |
| Housing material | Aluminium, Polycarbonate (PC), Tempered glass |
| Certification | FCC |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Screen shape | Curved |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Camera
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Total megapixels | 2 MP |
| Infrared (IR) light | Yes |
| Wide Dynamic Range (WDR) | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | IPv4, RTSP, RTP, TCP, UDP, P2P |
| Alarm input/output | Yes |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 24 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 32 mm |
| Height | 302.6 mm |
| Width | 129 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.2 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 15 - 30 °C |
