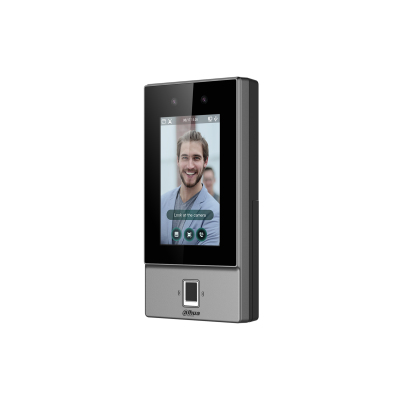

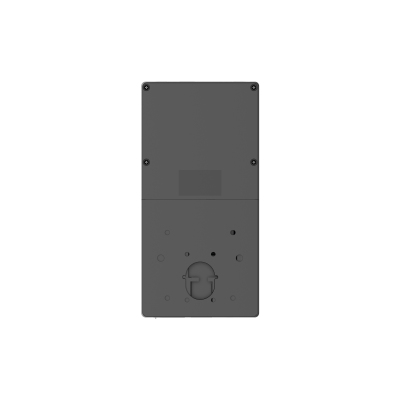

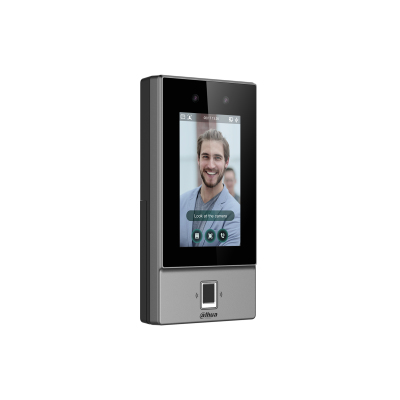

ASI6214S-PW access control reader Face recognition terminal Black, Grey
Model ASI6214S-PW
49 specifications
- Display10.9 cm (4.3")
- TypeFace recognition terminal
- Weight700 g
- ColourBlack, Grey
- Built-in displayYes
- Input voltage12 V
Overview
- Display
- 10.9 cm (4.3")
- Type
- Face recognition terminal
- Weight
- 700 g
- Colour
- Black, Grey
- Built-in display
- Yes
- Input voltage
- 12 V
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- ASI6214S-PW
- Part number
- ASI6214S-PW
- Also known as
- Dahua Technology ASI6214S-PW access control reader Face recognition terminal Black, Grey
Specifications
49 specifications in 7 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| Authentication type | Access chip/card, Biometric, Face recognition, Password |
| Buzzer | Yes |
| Access chip/card reader | Yes |
| Access code reader | Yes |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Backlight | Yes |
| Duress alarm | Yes |
| Face capacity | 6000 |
| Face recognition distance | 0.3 - 1.5 m |
| Fingerprint capacity | 6000 |
| Fingerprint reader | Yes |
| Identification (1:N) time | 0.2 s |
| Password capacity | 6000 |
| Supported protocols | UDP; TCP; IPv4; RTSP; SIP; P2P; RTP |
| User capacity | 6000 user(s) |
| QR code | Yes |
| Product colour | Black, Grey |
| International Protection (IP) code | IP65 |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Display size (HxV) | 480 x 272 mm |
| Display type | LCD |
| Screen shape | Flat |
| Touchscreen | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Sensor type | CMOS |
| Number of cameras | 1 |
| Wide Dynamic Range (WDR) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100 |
| Alarm input/output | Yes |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 1.5 A |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 12 W |
| DC current (max) | 1.5 A |
| DC voltage range | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 27 mm |
| Height | 180.1 mm |
| Weight | 700 g |
| Width | 90.1 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -30 - 60 °C |
