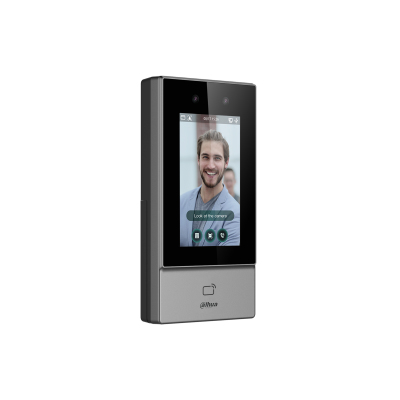

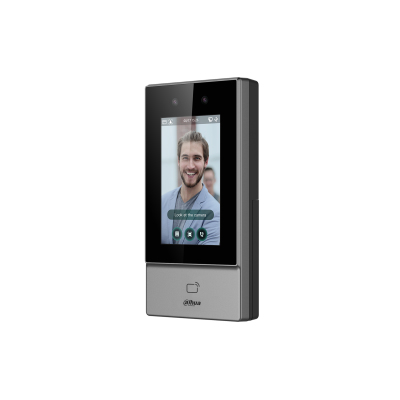

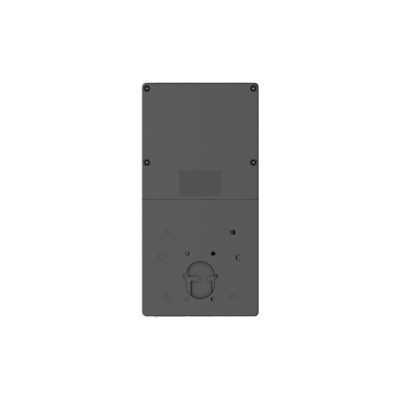

ASI6213S-PW Face recognition terminal
Model ASI6213S-PWPart no. DHI-ASI6213S-PWEAN 6923169754758
43 specifications
- Display10.9 cm (4.3")
- TypeFace recognition terminal
- Built-in displayYes
- Depth180.1 mm
- Operating relative humidity (H-H)0 - 90%
Overview
- Display
- 10.9 cm (4.3")
- Type
- Face recognition terminal
- Built-in display
- Yes
- Depth
- 180.1 mm
- Operating relative humidity (H-H)
- 0 - 90%
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- ASI6213S-PW
- Part number
- DHI-ASI6213S-PW
- EAN / UPC
- 6923169754758
- Also known as
- Dahua Technology ASI6213S-PW Face recognition terminal
Specifications
43 specifications in 8 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| Authentication type | Access chip/card, Face recognition, Password |
| Access chip/card reader | Yes |
| Access code reader | Yes |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Cards capacity | 10000 cards |
| Duress alarm | Yes |
| Exit button | Yes |
| Face capacity | 6000 |
| Fingerprint reader | No |
| Interoperability | CGI; ONVIF |
| Lock control | Yes |
| Open Supervised Device Protocol (OSDP) | Yes |
| Password capacity | 6000 |
| Software development kit (SDK) support | Yes |
| Supported protocols | UDP; TCP; IPv4; RTSP; SIP; P2P; RTP |
| User capacity | 6000 user(s) |
| International Protection (IP) code | IP65 |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Display type | LCD |
| Maximum resolution | 272 x 480 pixels |
| Screen shape | Flat |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Total megapixels | 2 MP |
Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 12 W |
| DC current (max) | 1.5 A |
| DC voltage range | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 180.1 mm |
| Height | 27 mm |
| Width | 90.1 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 700 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -30 - 60 °C |
