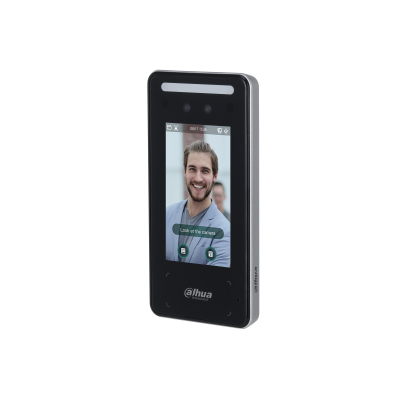

ASI6213J-MW access control reader Face recognition terminal Black, Grey
Model ASI6213J-MWEAN 6939554948510
45 specifications
- Display10.9 cm (4.3")
- TypeFace recognition terminal
- ColourBlack, Grey
- Sensor typeCMOS
- Built-in processorYes
- Ethernet LAN (RJ-45) ports1
Overview
- Display
- 10.9 cm (4.3")
- Type
- Face recognition terminal
- Colour
- Black, Grey
- Sensor type
- CMOS
- Built-in processor
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- ASI6213J-MW
- Part number
- ASI6213J-MW
- EAN / UPC
- 6939554948510
- Also known as
- Dahua Technology ASI6213J-MW access control reader Face recognition terminal Black, Grey
Specifications
45 specifications in 8 groups
Technical details
| Specification | Value |
|---|---|
| Type | Face recognition terminal |
| Wiegand interface | Yes |
| Active tampering alarm | Yes |
| Anti-passback | Yes |
| Duress alarm | Yes |
| Exit button | Yes |
| Face capacity | 6000 |
| Face recognition accuracy | 99.5% |
| Face recognition distance | 0.3 - 1.5 m |
| Face recognition duration | 0.3 s |
| Holiday period | 128 h |
| Interoperability | CGI |
| Lock control | Yes |
| Open Supervised Device Protocol (OSDP) | Yes |
| Password capacity | 6000 |
| Record capacity | 150000 |
| Software development kit (SDK) support | Yes |
| Temperature alarm | Yes |
| User capacity | 6000 user(s) |
| Voice prompts | Yes |
| Product colour | Black, Grey |
| International Protection (IP) code | IP65 |
| Certification | CE FCC |
Display
| Specification | Value |
|---|---|
| Display diagonal | 10.9 cm (4.3") |
| Screen shape | Flat |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Camera
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Total megapixels | 2 MP |
| Infrared (IR) light | Yes |
| Wide Dynamic Range (WDR) | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | IPv4; RTSP; RTP; TCP; UDP; P2P |
| Alarm input/output | Yes |
| RS-485 ports | 1 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 24 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 22.5 mm |
| Height | 174 mm |
| Width | 87.5 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
