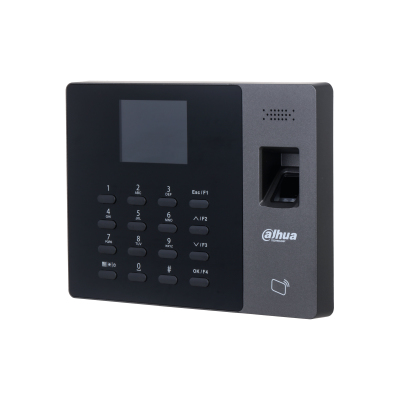

ASA1222GL USB access control reader
Model ASA1222GLPart no. DHI-ASA1222GLEAN 6923172582447
34 specifications
- Display6.1 cm (2.4")
- TypeUSB access control reader
- Built-in displayYes
- Front cameraNo
- Ethernet LAN (RJ-45) ports1
- Power consumption (typical)12 W
Overview
- Display
- 6.1 cm (2.4")
- Type
- USB access control reader
- Built-in display
- Yes
- Front camera
- No
- Ethernet LAN (RJ-45) ports
- 1
- Power consumption (typical)
- 12 W
- Brand
- Dahua Technology
- Category
- Access Control Reader
- Model
- ASA1222GL
- Part number
- DHI-ASA1222GL
- EAN / UPC
- 6923172582447
- Also known as
- Dahua Technology ASA1222GL USB access control reader
Specifications
34 specifications in 8 groups
Technical details
| Specification | Value |
|---|---|
| Type | USB access control reader |
| Authentication type | Access chip/card, Biometric, Password |
| Access chip/card reader | Yes |
| Access code reader | Yes |
| Cards capacity | 1000 cards |
| Fingerprint capacity | 2000 |
| Fingerprint reader | Yes |
| Fingerprint recognition duration | 2 s |
| Fingerprint sensor type | Optical |
| Password capacity | 1000 |
| Record capacity | 100000 |
| User capacity | 1000 user(s) |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 6.1 cm (2.4") |
| Display type | TFT |
| Maximum resolution | 320 x 240 pixels |
Camera
| Specification | Value |
|---|---|
| Front camera | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | UDP; TCP; IPv4 |
| USB port | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12 W |
| DC current (max) | 1 A |
| DC voltage range | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 32.7 mm |
| Height | 135.6 mm |
| Width | 181.6 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 71 mm |
| Package height | 162 mm |
| Package weight | 610 g |
| Package width | 298 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
