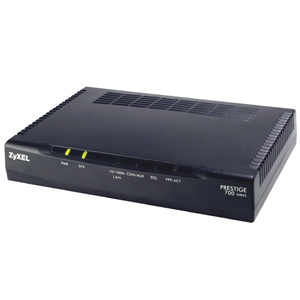

P-791 Series G.SHDSL Bridge / Router
Model P-791 Series G.SHDSL Bridge / RouterPart no. 130201G0791
19 specifications
- Speed0.1 Gbit/s
- ConnectivityITU G.991.2 G.shdsl
- Weight309 g
- Networking standardsIEEE 802.1d
- Management protocolsSNMP MIB I/MIB II
- Filtering descriptionPacket
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- ITU G.991.2 G.shdsl
- Weight
- 309 g
- Networking standards
- IEEE 802.1d
- Management protocols
- SNMP MIB I/MIB II
- Filtering description
- Packet
- Brand
- Zyxel
- Category
- Wired Router
- Model
- P-791 Series G.SHDSL Bridge / Router
- Part number
- 130201G0791
- Also known as
- Zyxel P-791 Series G.SHDSL Bridge / Router wired router
Specifications
19 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d |
| Data transfer rate | 2.3 Mbit/s |
| Full duplex | No |
| Supports ISDN connection | No |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1 x RJ-11 (G.SHDSL) 1 x RJ-45 (10M/100M Ethernet LAN) 1 x Serial port, RS232 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP MIB I/MIB II |
Security
| Specification | Value |
|---|---|
| Filtering description | Packet |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 309 g |
Other features
| Specification | Value |
|---|---|
| Interface | ITU G.991.2 G.shdsl |
| Power requirements | 100-120 VAC, 200-240 VAC |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 181 x 127 x 36.5 mm |
| Management platform | Web-Based |
| Maximum data transfer rate | 0.1 Gbit/s |
| Networking features | PPP, PPP over AAL5, PPP over Ethernet |
| Security features | Packet Filtering Password Protected System Management Terminal PAP CHAP Microsoft CHAP |
