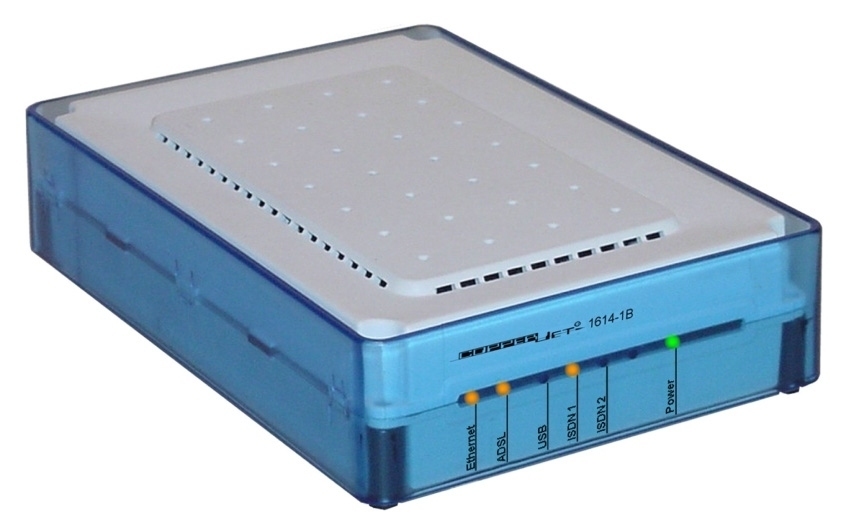

CopperJet 1614 - ADSL over analog/PSTN
Model CopperJet 1614 - ADSL over analog/PSTNPart no. CJT-1614-1BEU-01
21 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight400 g
- Full duplexYes
- CertificationCE mark IEC 60950
- LED indicatorsISDN, Power
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 400 g
- Full duplex
- Yes
- Certification
- CE mark IEC 60950
- LED indicators
- ISDN, Power
- Brand
- Allied Telesis
- Category
- Wired Router
- Model
- CopperJet 1614 - ADSL over analog/PSTN
- Part number
- CJT-1614-1BEU-01
- Also known as
- Allied Telesis CopperJet 1614 - ADSL over analog/PSTN wired router
Specifications
21 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
| Supports ISDN connection | No |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| Downstream data rate | 24 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | - Ethernet (RJ45) - ADSL (RJ11) - ISDN (RJ45) - Power - USB |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP V1, V2, MIB I, MIB II, TELNET, Dying Gasp, Webserver |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Installation CD |
Features
| Specification | Value |
|---|---|
| Certification | CE mark IEC 60950 |
Design
| Specification | Value |
|---|---|
| LED indicators | ISDN, Power |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 400 g |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | - Ethernet: Windows, Linux & MAC - USB: Windows 98SE, ME, 2000, XP |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 120 x 170 x 40 mm |
| Maximum data transfer rate | 0.1 Gbit/s |
| Power supply type | 115-230 VAC, 50 - 60 Hz, 8 W |
| Security features | - Stateful Inspection Firewall - Intrusion Detection - Denial Of Service protection - De-Militarized Zone - NAT/NAPT |
| Supported WAN type | - ADSL Annex A - ITU-T G.992.1 (G.dmt) - ITU-T G.992.3 ADSL2 (G.dmt.bis) - ITU-T G.992.5 ADSL2+ (G.dmt.bis.plus) - ANSI T1.413 i2 - G.994.1 (G.hs) |
| Voice features | - 1 x ISDN BRI S0 (RJ45) - 4 wire line (Tx & Rx) - ISDN 2B + 1D (2 x 64kbps + 1 x 16kbps) - 128 kbps data rate - Internal Ring Source - ELCP, CAS, CCS - G.711 (64Kbps PCM) - G.726 (32Kbps ADPCM) - G.168 - Universal CP Tone Detect - Voice Activity Detect s/AGC - Silence Compression and Reconstruction |
