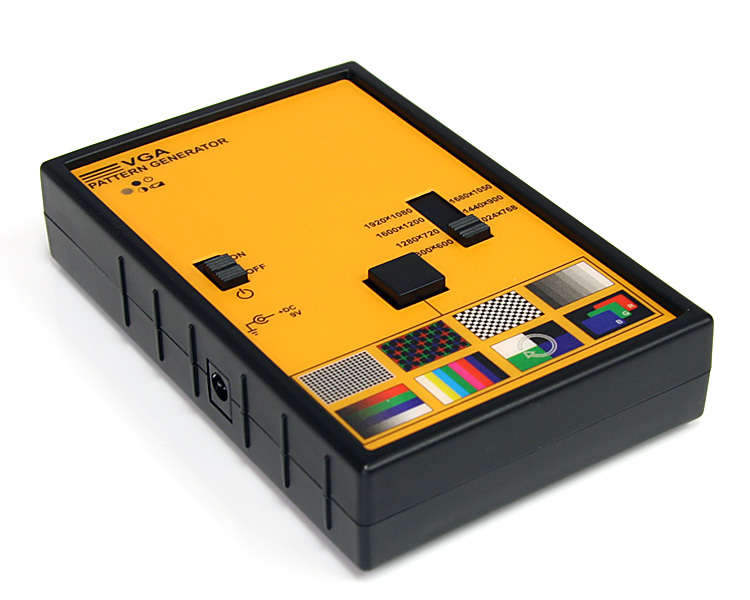

VGAPATTERNGB video test pattern generator VGA
Model VGAPATTERNGB
19 specifications
- ConnectivityVGA
- Weight160 g
- ColourBlack, Yellow
- AC adapter input voltage110 - 240 V
- Operating relative humidity (H-H)0 - 90%
- Depth30 mm
Overview
- Connectivity
- VGA
- Weight
- 160 g
- Colour
- Black, Yellow
- AC adapter input voltage
- 110 - 240 V
- Operating relative humidity (H-H)
- 0 - 90%
- Depth
- 30 mm
- Brand
- StarTech.com
- Category
- Video Test Pattern Generator
- Model
- VGAPATTERNGB
- Part number
- VGAPATTERNGB
- Also known as
- StarTech.com VGAPATTERNGB video test pattern generator VGA
Specifications
19 specifications in 4 groups
Technical details
| Specification | Value |
|---|---|

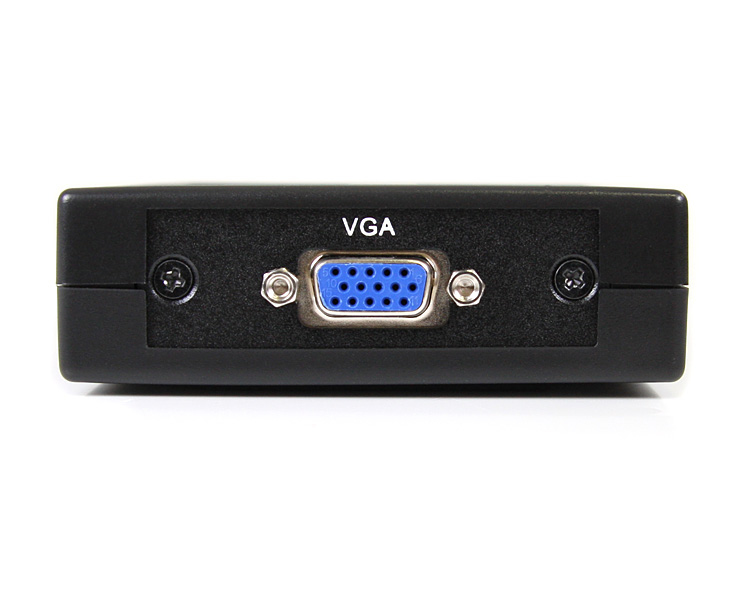

| Interface | VGA |
| HDCP | No |
| Test modes | 8 |
| Product colour | Black, Yellow |
| Housing material | Plastic |
| LED indicators | Power, Yes |
| On/off switch | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 110 - 240 V |
| AC adapter output current | 0.6 A |
| AC adapter output voltage | 9 V |
| External power adapter | Yes |
| Input current | 0.015 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 30 mm |
| Height | 160 mm |
| Weight | 160 g |
| Width | 85 mm |
